The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

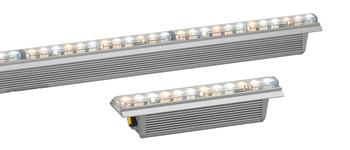

The Exterior™  Linear 1220 Graze CTC and the Exterior™ Linear 320 Graze CTC are designed to illuminate walls or any type of linear structure and feature precise color temperature control from 2700K to 6500K and uniform light distribution at three different beam angles, ideal for highlighting textured surfaces.

The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

  • Linear LED fixture with very narrow beam option
  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply
  • Easy infrastructure

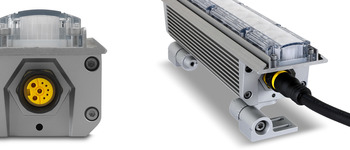

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

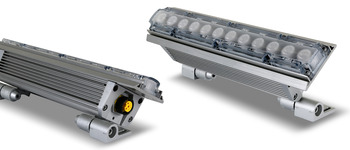

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

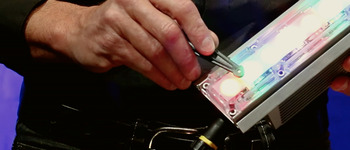

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Color Temperature Control

    The cold, neutral and warm LEDs allows for precise color temperature control in the range from 2700 K to 6500 K

Videos

Features

  • Three beam angle options – including narrow for impressive graze effects.
  • Very low power consumption (max 20 W/ft).
  • No extra control boxes required – connects directly to line voltage and DMX.
  • Internal power and control (DMX, RDM and magnetic tool).
  • Super rugged IP66 housing.
  • 0–100% intensity control.

Tech Specs

Physical320 series (1 ft.) fixturesLength: 305 mm (12 in.)Width: 72 mm (2.8 in.)Height: 99 mm (3.9 in.) including bracketWeight: 1.5 kg (3.4 lbs.)1220 series (4 ft.) fixturesLength: 1219 mm (48 in.)Width: 72 mm (2.8 in.)Height: 99 mm (3.9 in.) including bracketWeight: 6.0 kg (13.3 lbs.)
Dynamic EffectsIntensity: 0 - 100%Color temperature control: 2700 K - 6500 K
Control and ProgrammingControl systems: DMX, RDMControl resolution: 8-bit DMX control of each colorDMX channels: 2 - 16 depending on model and modeUser interface: Magnetic button to call up fixture status and test fixtureDMX compliance: USITT DMX512/1990RDM compliance: ANSI/ESTA E1.20
OpticsLight source: 3 W Cree XP-E2 LEDsMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under test conditionsBeam angle variantsNarrow: 12°Medium: 17°Wide: 70°Asymmetric: 70° x 12.5°
Photometric DataExterior Linear 320 Graze (Medium)Total luminous output: 1100 lumensWarm white output: 270 lumensCold white output: 440 lumensExterior Linear 1220 Graze (MediumTotal luminous output: 3040 lumensWarm white output: 1080 lumensCold white output: 1760 lumens
ConstructionHousing: AluminumFront: Clear polycarbonate with diffuserProtection rating: IP66IK rating: IK08Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)RoHS compliant
InstallationOrientation: AnyMinimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
ConnectionsPower/data in/thru: 8-pin custom connectors
ElectricalAC power: 100 -277 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modeMaximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.)Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.)Typical half-cycle RMS inrush current: 320 models 0.3 A, 1220 models 0.7 ASurge protection: 4 KV
Typical Power and Current100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)Minimum ambient temperature (Ta min.): -30° C (-22° F)Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot
ApprovalsEU Safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3US safety (pending): ANSI/UL 1598US EMC: 47 CFR Part 15 Class BCanadian safety (pending): CSA C22.2 No. 250.0Australia/NZ (pending): RCM

AccessoriesMagnetic Test Tool, set of 10: P/N 91610139OpticalExterior Linear 300 Series Glare Shield, set of 4: P/N 91611752Exterior Linear 1200 Series Glare Shield, set of 4: P/N 91611753CablesPower + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765End Termination Cap for power + data link: P/N 91611766
Ordering InformationExterior Linear Graze 320 seriesExterior Linear 320 CTC Graze, Narrow: P/N 90356988Exterior Linear 320 CTC Graze, Medium: P/N 90356975Exterior Linear 320 CTC Graze, Wide: P/N 90356974Exterior Linear 320 CTC Graze, Asymmetric: P/N 90356973Exterior Linear Graze 1220 seriesExterior Linear 1220 CTC Graze, Narrow: P/N 90356989Exterior Linear 1220 CTC Graze, Medium: P/N 90356985Exterior Linear 1220 CTC Graze, Wide: P/N 90356984Exterior Linear 1220 CTC Graze, Asymmetric: P/N 90356983
