FiberSource QFX150 (discontinued)

FiberSource QFX150
Larger Images

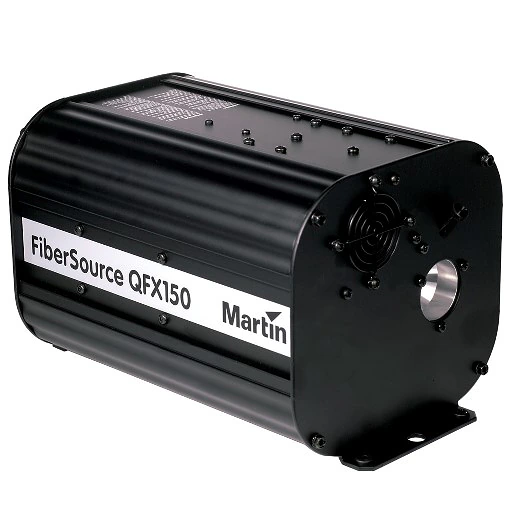

The FiberSource QFX150 is an automated 150 W color-changing luminaire for illuminating fiber optic cables in permanent installations. It features a color wheel with 9 interchangeable colors and smooth, full-range mechanical dimming.

Features

  • 150 W metal halide lamp
  • Color wheel with up to 9 interchangeable colors (4 are included)
  • Blackout and strobe functionality
  • Twinkle wheel for sparkling effects
  • 0-100% intensity control
  • Up to 800 fiber cables (1 mm)
  • DMX or stand alone control

Specifications

Physical Length: 330 mm Width: 213 mm Height: 199 mm Weight: 10.4 kg
Dynamic Effects Color wheel: 9 positions + open, continuous rotation Twinkle effect: Removable section, continuous variable-speed rotation Dimmer: 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 5 DMX address setting: DIP switch Stand-alone and host/client programming: DIP switch Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 150 W metal halide Approved lamps: Osram HQI-R 150 Socket: Separate connector for integral lamp wires Control: Remote on/off
Construction Housing: Steel and aluminum Finish: Electrostatic powder-coated Color: Black (RAL 9005) Protection rating: IP20
Installation Orientation: Horizontal Minimum distance to combustible materials: 0.1 m Minimum clearance around fan and air vents: 0.1 m
Connections Power connection: 3-pin IEC male socket Data connection: 3-pin locking XLR
Electrical AC power: 100/120/210/230/250 V, 50/60 Hz Main fuse: 5 AT (slow blow)
Typical Power and Current 120 V, 60 Hz: 205 W, 1.9 A 230 V, 50 Hz: 195 W, 1.0 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 58° C Cooling: Forced air cooling system Total heat dissipation (calculated, +/- 10%): 700 BTU/hr.
Approvals EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE
Included Items Osram HQI-R 150 lamp: 97010101 3 m power cable, 3-pin IEC: 11501013 5 m data cable, 3-pin XLR: 11820008 Blue 108 color filter on adaptor: 62327030 Yellow 603 color filter on adaptor: 62327031 Green 206 color filter on adaptor: 62327033 Red 308 color filter on adaptor: 62327032
Accessories Fiber adaptor, 75-350 pcs. (25 pcs. interval) Ø 1 mm fiber, D= 30 mm: 91611035 G-clamp: 91602003 Half-coupler clamp: 91602005 Optional color filters: See user manual:
Spare Parts Osram HQI-R 150 lamp: 97010101 5.0 AT main fuse: 05020018
Ordering Information FiberSource QFX 150: 90522000

Downloads

  Version Language Size Uploaded
Specifications
file type icon Specifications
en version D, updated: Nov 2020
en  56 KB Nov 2020
file type icon DMX chart
en version 1, updated: Oct 2020
en  51.9 KB Oct 2020
file type icon Technische Daten
de version B, updated: Oct 2020
de  8.79 KB Oct 2020
DMX table
en version 1, updated: May 2018
1   en    May 2018
Manuals
file type icon Bedienungsanleitung
de version B, updated: Oct 2020
de  604 KB Oct 2020
file type icon FiberSource QFX150 - User manual
en version D, updated: Oct 2020
en  899 KB Oct 2020
file type icon Manuel d'utilisation
fr version B, updated: Oct 2020
fr  763 KB Oct 2020
Illustrations
file type icon Dimensions
en version A, updated: Oct 2020
en  83.4 KB Oct 2020
file type icon Dimensions (DXF)
en version A, updated: Oct 2020
en  19.7 KB Oct 2020
Service Notes
CPFC Capacitor Replacement Recommendation
en version B, updated: May 2018
B   en    May 2018
file type icon PFC Capacitor Replacement
en version B, updated: Oct 2020
en  1010 KB Oct 2020
file type icon Fiber Adaptor Kit
en version B, updated: May 2018
en  537 KB May 2018
Hints And Tips
file type icon Philips CDM 150 SA/R Not Approved For Use
en version A, updated: Oct 2020
en  43.4 KB Oct 2020
Discharge Lighting Shutdown Guidelines
en version A, updated: May 2018
A   en    May 2018
