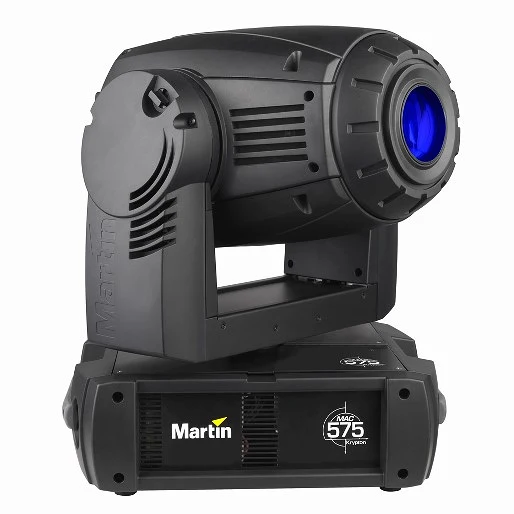

The MAC 575 Krypton combines super efficient optics for brighter output with outstanding gobos and colors, together with MAC’s market-proven, modular construction. It is suited for stages, venues or any space that demands reliable, low-maintenance and no-nonsense performance.
Larger Images
Features
- 575 W discharge lamp
- 2 x 8 position color wheels plus open
- Interchangeable 4-facet rotating prism
- Motorized iris
- Strobe effect 2 - 10 Hz, pulse effects, instant open and blackout
- Motorized zoom and focus
- Mechanical dimming
- Pan and tilt range of 540°/246°
- Modular design for easy maintenance and servicing
- Variable fan control for quieter operation
- 6 indexable rotating gobos plus open
- 9 static gobos plus open
Specifications
Physical
Length: 450 mm
Width: 365 mm
Height: 636 mm, head straight up
Weight: 37.8 kg
Dynamic Effects
Color wheel 1: 8 interchangeable dichroic filters + open, full and split colors, continuous rotation, random color
Color wheel 2: 8 interchangeable dichroic filters + open, full and split colors, continuous rotation, random color
Rotating gobo wheel: 6 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shake
Static gobo wheel: 9 interchangeable gobos + open, indexing, continuous rotation, random gobo
Prism: Interchangeable 4-facet rotating prism
Iris: 0 - 100%, pulse effects
Mechanical dimmer: 0 - 100%
Shutter: Strobe effect 2 - 10 Hz, pulse effects, instant open and blackout
Focus: 2 m to infinity
Zoom: Motorized
Pan: 540°
Tilt: 246°
Control and Programming
DMX channels: 19/25
Setting and addressing: Control panel with LED display
16-bit control: Dimmer, color wheels 1 & 2, rotating gobo indexing, iris, focus, zoom, pan & tilt
Movement control options: Tracking and vector
Protocol: USITT DMX512/1990
Receiver: Opto-isolated RS-485
Firmware update: Serial upload via DMX link
Lamp
Type: 575 W short-arc discharge
Fitted as standard: GE CSR 575/S/DE/70
Color temperature: 7000 K
CRI (Color rendering index): >65
Average lifetime: 750 hours
Hot restrike: No
Socket: Double-ended SFc 10-4 with key
Ballast: Magnetic
Optics
Beam angle: 16° - 31°, cut-off angles
Construction
Color(s): Black or white
Housing: UV-resistant fiber-reinforced composite
Reflector: Glass, cold light
Protection rating: IP20
Gobos
Outside diameter: 27.9 mm +0/- 0.3 mm
Maximum image diameter: 23 mm
Maximum thickness: 1.1 mm in static slots, 4 mm in rotating slots
Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating
Recommended metal: 0.5 mm aluminum
Installation
Mounting points: 2 pairs of 1/4-turn locks
Orientation: Any
Minimum distance to illuminated surfaces: 1.2 m
Minimum distance to combustible materials: 0.5 m
Connections
AC power input: 3 m integral cable without power plug
DMX data in/out: 3-pin and 5-pin locking XLR
Electrical
AC power: 200-240 V nominal, 50/60 Hz
User-reconfigurable voltage and frequency settings:
Main fuse: 10 AT (slow blow)
Typical Power and Current
200 V, 50 Hz: 788 W, 4.1 A, PF 0.972
200 V, 60 Hz: 778 W, 4.1 A, PF 0.963
208 V, 60 Hz: 797 W, 4.0 A, PF 0.960
230 V, 50 Hz: 817 W, 3.7 A, PF 0.981
230 V, 60 Hz: 804 W, 3.9 A, PF 0.907
240 V, 50 Hz: 813 W, 3.5 A, PF 0.976
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal
Cooling: Filtered forced air (temperature-regulated)
Maximum ambient temperature (Ta max.): 40° C
Maximum surface temperature, steady state, at 40° C ambient: 160° C (320° F)
Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 2800 BTU/hr.
Approvals
EU safety: EN 60598-1, EN 60598-2-17
EU EMC: EN 55 015, EN 55 103-1, EN 61 547
US safety: ANSI/UL 1573
Canadian safety: CSA C22.2 No. 166
Included Items
GE CSR 575/S/DE/70 lamp (installed): 97010230
Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001
User manual: 35000206
Accessories
Omega bracket: 91602001
T-shaped omega bracket with quarter-turn fasteners: 91602008
G-clamp: 91602003
Half-coupler clamp: 91602005
Quick trigger clamp: 91602007
Super Truss 20.5" mounting plate with half-couplers: 91602014
Swing-wing truss mounting plate with half-couplers: 91602010
Safety cable, safe working load 50 kg: 91604003
Double flightcase, MAC 550, MAC 575, MAC 700: 91510020
Related Items
Martin USB Duo™ DMX Interface Box: 90703010
Spare Parts
GE CSR 575/S/DE/70 lamp: 97010230
Air filter (head, side): 20800170
10 AT main fuse: 05020025
Ordering Information
MAC 575 Krypton Low Noise, black, in cardboard box: 90216100
MAC 575 Krypton Low Noise, black, double flightcase: 90216001
MAC 575 Krypton Low Noise, white, in cardboard box: 90216030
