MAC Aura PXL

Multi-Source Wash Light

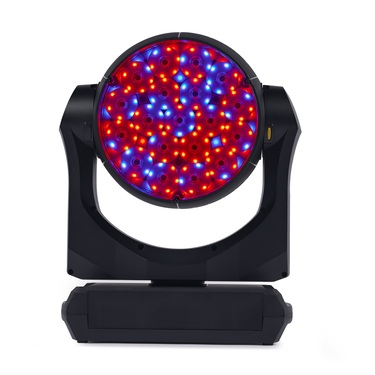

MAC Aura PXL

The Martin MAC Aura PXL adds to the industry standard line of Martin wash lights with multi-lens and Aura backlight technology. Bigger and brighter than the MAC Aura, the PXL features significantly higher intensity and a tighter beam as well as a smaller face and less busy lens look compared to the MAC Quantum Wash. The MAC Aura PXLs bigger “bubbles” provide a more appealing look and beautiful wide wash fields.

It is also the first wash light in the market to feature individual pixel control for main beam pixels and Aura backlight with full control via DMX, Art-Net and sACN, as well as with Martin´s very own creative P3 video protocol.

The compact size and low weight, trusted Martin build quality and feature set, and simple and clever setup and control options make the MAC Aura PXL ideal for rental customers and lighting designers working in concert/touring, TV shows and corporate, as well as customers supporting the high-end nightclub market.

  • TRUE WASH LIGHT WORKHORSE

    From a tight, high intensity, narrow beam to beautiful wash fields, incorporated into a compact and lightweight package, the MAC Aura PXL suits every application.




  • BRIGHT, VIBRANT COLORS

    The RGBW system delivers very vibrant colors with a brightness only expected from much larger fixtures. The calibrated color system excels on subtle pastels and white tones, making any MAC Aura PXL in the rig match the color point when they must.


  • BUILT FOR PIXEL MAPPING

    With an all solid state color mixing system, instant color and intensity response, 19 individually controlled main beam pixels and 141 individually controlled Aura backlight pixels, the MAC Aura PXL is a great choice for pixel-mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing the fixture to fit in seamlessly.

  • P3 INCORPORATED

    On top of DMX, Art-Net and sACN, the fixture can be controlled by Martin´s P3 protocol for setup and programming and allows a rig of fixtures to deliver cohesive content that blends together with video content on panels or creative LED products. You can even blend seamlessly between console and media input sources via the P3 mix channel.

  • SILENT OPERATION

    With its sophisticated, low noise cooling system, the MAC Aura PXL is a true stealth operator, even in the most critical and noise sensitive environments.




  • OPEN SOURCE

    The MAC Aura PXL accepts any industry standard input source. All of its features can be controlled via DMX-512, Art-Net, sACN and Martin´s very own P3 protocol. This allows for maximum versatility in any type of control environment.


featured content

TRUE WASH LIGHT WORKHORSE

From a tight, high intensity, narrow beam to beautiful wash fields, incorporated into a compact and lightweight package, the MAC Aura PXL suits every application.




featured content

BRIGHT, VIBRANT COLORS

The RGBW system delivers very vibrant colors with a brightness only expected from much larger fixtures. The calibrated color system excels on subtle pastels and white tones, making any MAC Aura PXL in the rig match the color point when they must.


featured content

BUILT FOR PIXEL MAPPING

With an all solid state color mixing system, instant color and intensity response, 19 individually controlled main beam pixels and 141 individually controlled Aura backlight pixels, the MAC Aura PXL is a great choice for pixel-mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing the fixture to fit in seamlessly.

featured content

P3 INCORPORATED

On top of DMX, Art-Net and sACN, the fixture can be controlled by Martin´s P3 protocol for setup and programming and allows a rig of fixtures to deliver cohesive content that blends together with video content on panels or creative LED products. You can even blend seamlessly between console and media input sources via the P3 mix channel.

featured content

SILENT OPERATION

With its sophisticated, low noise cooling system, the MAC Aura PXL is a true stealth operator, even in the most critical and noise sensitive environments.




featured content

OPEN SOURCE

The MAC Aura PXL accepts any industry standard input source. All of its features can be controlled via DMX-512, Art-Net, sACN and Martin´s very own P3 protocol. This allows for maximum versatility in any type of control environment.


Videos













Features

LIGHT SOURCE

  • 10,500 lumens RGBW light output
  • High narrow intensity: 940,000 cd
  • Pixelated Beam: 19x 40W RGBW LEDs
  • Pixelated Aura: 141x 0.3W RGB LEDs
  • Fully calibrated using Martin's Full Gamut Color Calibration
  • Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
  • LED Driver frequency adjustable for demanding applications

OPTICS

  • Tight beam and beautiful wash field
  • 6 - 59° zoom – Precise, silent and fast zoom
  • Even wash field with zero hotspot
  • High intensity mid-air beams
  • Minor color temperature shift from center to edge

SOFTLENS ACCESSORY

  • Creates a softer edge wash field
  • Reduces glare from fixture lens
  • Minimal impact to Aura pixel effects
  • Attaches to front of fixture
  • Can remain attached to fixture inside flightcase SiP

COLOR PALETTE

  • RGBW color mixing with very bright and vibrant saturated colors, as well as nice pastels and white tones
  • Calibrated and Extended Color Modes
  • Calibrated CTC control: 2,000 -  10,000 K
  • Tungsten Emulation Option
  • Virtual Color Wheel

DYNAMIC EFFECTS

  • More than 150 built-in FX macros with control of foreground color, background color, speed and direction
  • P3 video mapping of fixture Beam pixels and/or Aura pixels
  • P3 Mix allowing crossfade between video looks and DMX looks
  • High-speed pan, tilt and zoom

COOLING AND NOISE

  • Ultra-quiet cooling system
  • Theater / Broadcast mode at just 24.6 dB(A)
  • Low noise pan/tilt and effects operation

CONSTRUCTION

  • Weight:15.60 kg (34.39 lbs.)
  • Dimensions: 410 x 489 x 232 mm

CONTROL

  • Battery-powered control panel on the base
  • DMX in & thru
  • Ethernet in & thru, supporting Art-Net, sACN & Martin P3
  • Fail-safe bypass on Ethernet ports
  • RDM over DMX and RDM over Art-Net

Specifications

  • Physical

    Width (across yoke): 410 mm (16.14 in.)
    Width (base): 385 mm (15.16 in.)
    Height (head straight up): 489 mm (19.25 in.)
    Height (maximum): 544 mm (21.42 in.)
    Depth (head): 216 mm (8.50 in.)
    Depth (base): 232 mm (9.13 in.)
    Minimum center-to-center distance in side-by-side installation: 440 mm (17.32 in.)
    Weight: 15.60 kg (34.39 lbs)

    Dynamic Effects

    Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
    Beam Dimming options: Choice of four dimming curves
    Beam Color Mixing: RGB, independently variable 0 - 100%
    Beam Color Temperature Control: Variable 2,000 – 10,000 K
    Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
    Zoom: Motorized with 1:8 zoom ratio
    Pan: Motorized 540°
    Tilt: Motorized 268°
    Beam PixelMapping: individual RGB control of each of the 19 Beam pixels
    Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects, instant open and blackout
    Aura Dimming options: Choice of four dimming curves
    Aura Color Mixing: RGB, independently variable 0 - 100%
    Aura Color Temperature Control: Variable 2,000 – 10,000 K
    Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
    Aura PixelMapping: individual RGB control of each of the 141 Aura pixels
    Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined

    Control and Programming

    Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
    Protocol Detection: Automatic
    DMX Modes: Compact, Basic, Extended & Ludicrous
    DMX Channels: 17, 32, 89 & 512
    16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Pan and Tilt
    Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
    Local User Interface: Backlit LCD Display with battery-powered operation
    Fixture identification: User-settable ID number
    DMX Compliance: USITT DMX512-A
    RDM Compliance: ANSI/ESTA E1.20
    Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
    sACN Compliance: ANSI E1.31 - 2016
    Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
    DMX/RDM Transceiver: Galvanic-isolated RS-485
    Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
    Firmware Update: via USB type A memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller

    Optics

    Front Lens Diameter: 255 mm (10.04 in.)
    Zoom Range: 1:8
    Full Zoom Range at Half Peak (Beam Angle): 6° - 40°
    Full Zoom Range at Tenth Peak (Field Angle): 7° - 59°
    Beam Light Source: 19 x 40 W RGBW LED
    Aura Light Source: 141 x 0.3 W RGB LED
    Max. Total Beam LED Engine Power: 570 W
    Max. Total Aura LED Engine Power: 50 W
    Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
    *Figure obtained under manufacturer's test conditions

    Photometric Data

    Light Engine Luminous Output: 19,000 lumens
    Fixture Luminous Output Wide: 10,500 lumens
    Fixture Luminous Output Narrow: 8,500 lumens
    Peak Luminous Intensity Narrow: 940,000 cd
    CCT: Variable 2,000 K – 10,000 K (+/- 200 K)
    CRI (Color Rendering Index): ≥ 73
    CQS (Color Quality Scale): ≥ 85
    TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77
    TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
    TLCI (Television Lighting Consistency Index): ≥ 61
    Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode
    Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode
    Binning: Tight color and flux binning
    Calibration: Full Gamut Color Calibration of Beam and Aura
    Color Modes: Extended Color Mode and Calibrated Color Mode
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
    * All Photometric Data measured at 6500 K white

    Construction Housing: High-impact flame-retardant thermoplastic
    Color: Black
    Protection rating: IP 20
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Indoor Orientation: Any Minimum distance to combustible materials: 0.2 m (7.87 in.) Minimum distance to illuminated surfaces: 2.4 m (94.49 in.)
    Connections AC mains power in/thru: Neutrik powerCON TRUE1 Firmware from flash memory: USB 2.0 type A port DMX and RDM data in/thru: Neutrik 5-pin locking XLR Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON
  • Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A
    Typical earth-leakage current: 0.36 mA
    Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
    Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V
    Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *
    Power Consumption
    Maximum: 560 W
    Typical: 500 W *
    Idle: 81 W *
    Hibernation: 37 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.
    Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

    Thermal Cooling: Forced air (temperature regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 53° C (128° F) Total heat dissipation (calculated, +/- 10%): 1563 BTU/hr.
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 32.6 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 24.6 dB(A)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 25.4 lm/W LWR*: 705 lm/kg (320 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA
    Included Items

    Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Safety and Installation Manual in Eng/Fre/Ger

    Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
    Accessories

    Optical
    MAC Aura PXL SoftLens: P/N MAR-91614062HU

    Transport and Storage
    Flightcase for 3 x MAC Aura PXL: P/N 91515052
    Additional SiP Foam Flightcase Insert for MAC Aura PXL: P/N 91611860HU

    Consumables
    CR123A 3-volt lithium battery: P/N 05801011

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

    Power Linking Cables
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors
    Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
    Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information MAC Aura PXL EPS (in cardboard box, polystyrene packaging): P/N 90250035HU MAC Aura PXL SIP (in cardboard box with SIP foam flight case insert): P/N 90250040HU MAC Aura PXL, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90250030HU
