MAC Viper Beam (discontinued)

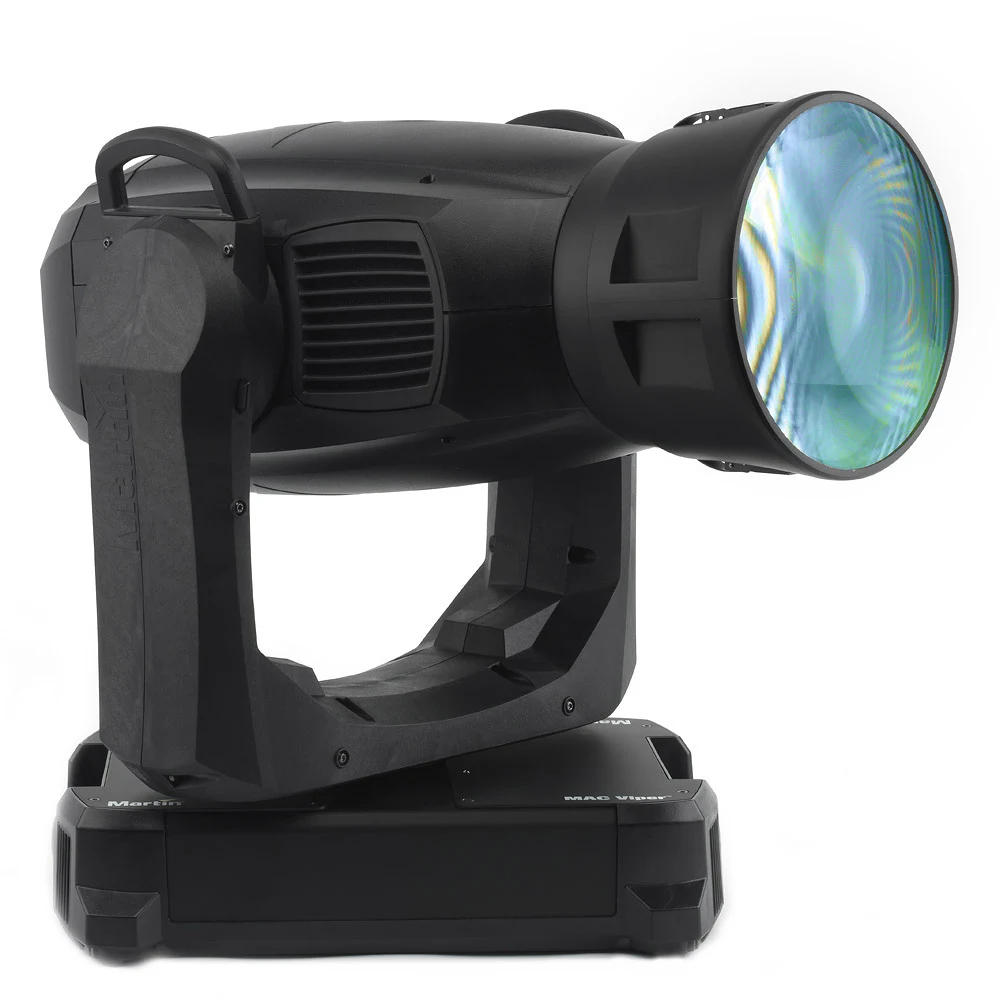

Micro-Fresnel tight narrow beam front lens accessory for the MAC Viper AirFX

Larger Images

This unique beam fixture with linear zoom system projects a super-narrow pencil beam of high intensity light and is available as an easy-to-install front lens replacement kit for any standard MAC Viper AirFX. Ideal for big beam effects and long throws, it houses the same high-quality feature set as the MAC Viper AirFX, including a vibrant color mixing system and stunning aerial effects, and has inherited the same compact form, impressive speed and superior light quality from a 1000-watt lamp.

  • Front lens replacement kit - Easy installation on any MAC Viper AirFX
  • Precision micro-fresnel front lens
  • Delivers high intensity pencil beams for long throws

Features

  • Front lens replacement kit - Easy installation on any MAC Viper AirFX
  • Precision micro-fresnel front lens
  • Delivers high intensity pencil beams for long throws
  • Eliminates need to invest in a new fixture
  • Continuous and fast zoom with auto-linked focus
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • 7-slot color wheel – Static colors and correction filters for added color choice
  • Rotating gobo wheel with 5 replaceable designs
  • Static gobo wheel with 7 designs
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • Dimmer and shutter - combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – fast and tight iris with adjustable dynamic effects
  • Diverse strobe effects

Specifications

  • Physical Length: 701 mm (27.6 in.) head Width:

    473 mm (18.7 in.)
    335 mm (13.2 in.) base

    Height:

    866 mm (34.1 in.) head straight up
    885 mm (34.9 in.) maximum

    Weight: 37.6 kg (82.9 lbs.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: CTO, variable 6000 - 3200 K Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color Rotating aerial effects: 5 interchangeable rotating aerial effect gobos, wheel and gobo indexing, continuous rotation and shake Static gobo wheel: Interchangeable wheel with 7 integral gobos, wheel indexing and continuous rotation, random gobo Wash effect: Fade in/out Iris: 0 - 100%, pulse effects Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Zoom: Motorized Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring
    Control and Programming Setting, addressing, standalone programming: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Dimmer, aerial effect indexing, focus, zoom, pan and tilt DMX channels: 20/28 Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    Optics Zoom range: 7.5-31° (1:4) Color temperature: 6000 K Output: 28,500 lumens
    Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Gobos Size: E27 (Size E, max. image diameter 27 mm) Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.) Maximum image diameter: 27 mm (1.1 in.) Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
    Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
    Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
  • Electrical AC power: 120-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical half-cycle RMS inrush current: 16.2 A
    Typical Power and Current 120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999 208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996 230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994 240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993 Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
    Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F) Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual
    Accessories Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m (9.9 ft.): P/N 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008 Half-coupler (tube) clamp: P/N 91602005 G-clamp (suspension with yoke vertically downwards only): P/N 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007 Safety cable, safe working load 70 kg (154 lbs.): P/N 91604004 Flightcase for 2 x MAC Viper: P/N 91510180 Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001
    Related Items Martin USB Duo™ DMX Interface Box: P/N 90703010 Martin™ RDM 5.5 Splitter: P/N 90758150
    Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    Ordering Information MAC Viper™ Beam Kit: P/N 91614053
    Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 39 kg (86.0 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 334 kg (736.4 lbs.)

    In double flightcase:

    Shipping dimensions (LxWxH): 1200 x 580 x 850 mm (47.3 x 22.9 x 33.5 in.)
    Shipping weight: 70 kg (154.4 lbs.)

Downloads

  Version Language Size Uploaded
Specifications
MAC Viper Beam Spec Sheet-English   en  476 KB Jul 09, 2018
Illustrations
MAC Viper Beam Dimensions 2D (DXF) en  5.55 MB May 18, 2018
MAC Viper Beam Dimensions 2D (PDF) en  256 KB May 18, 2018
3D Symbols
Vectorworks Symbols 2.7  en  251 MB Oct 08, 2019
CAD Drawings
MAC Viper Beam - Head Horizontal (3DS) en  3.33 MB May 18, 2018
MAC Viper Beam - Horizontal (3D DWG) en  3.15 MB May 18, 2018
MAC Viper Beam - Head Vertical (3DS) en  3.06 MB May 18, 2018
MAC Viper Beam - Vertical (3D DWG) en  2.95 MB May 18, 2018
Compliances
MAC Viper Series - ETL Listing Verification en  398 KB May 18, 2018
MAC Viper Series - EU Declaration of Conformity en  729 KB Mar 04, 2019
Parts
MAC Viper Series - Alternative Lamp Approved en    May 23, 2018
Service Procedures
MAC Viper AirFX - Quadray - Beam - Service Procedures (User) en    May 22, 2018
MAC Viper AirFX - Maintenance Schedule (User) 1.2.0  en  117 KB May 18, 2018
Service Notes
3DPartsfinder using Solid Works Composer player en    May 22, 2018
MAC Viper Profile - Live heat sink in base en    May 22, 2018
MAC Viper Series - Air Filter Options en    May 22, 2018
MAC Viper Series - Correct lamp socket is PGJX36 en    May 22, 2018
MAC Viper Beam Kit Installation Guide en  3.16 MB May 18, 2018
3DPartsfinder Using Solid Works Composer Player     Sep 22, 2017
MAC Viper Series - Lamp orientation from mid-2013 en  1.79 MB May 19, 2018
Tech Notes
MAC Viper Parts     Sep 26, 2017
Avoiding damage from sunlight and other light sources     Sep 22, 2017
Hints And Tips
Avoiding damage from sunlight and other light sources en    May 22, 2018
