Martin Magnum 1500

Larger Images

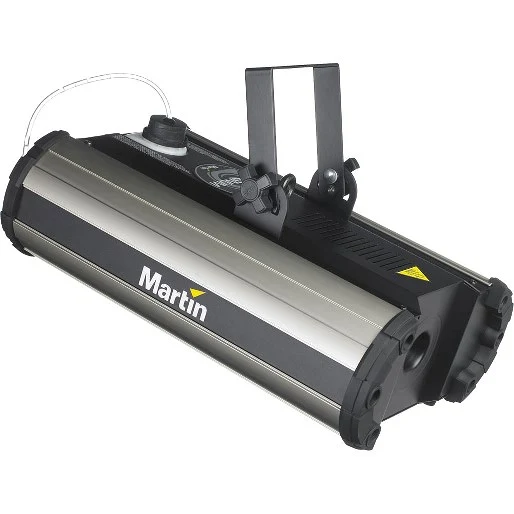

The Magnum 1500 is an impressively powerful fog generator with a classic design, housed in a smart, sturdy compact casing.

Features

DMX with optional DMX interface module
Timer and output level remote control
Floor standing or truss mounting
Continuous output
550 m³/min fog output
1200 W heat exchanger
7 min heat-up time
2.3 liter fluid capacity
Different fluid options for different applications

Specifications

Physical Length: 445 mm Width: 305 mm Height: 178 mm Dry weight: 11.1 kg

Performance Max. fog output (approx.): 550 m³per minute Max. operating time at full output (approx.): 80 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 7 minutes

Control and Programming Control options: Remote control (supplied), DMX with optional DMX interface module Remote control features: Instant or timer-controlled variable output

Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 2.3 l Fluid consumption at peak output: 80 ml per minute

Installation Orientation: Floor or flying kit

Connections Remote control: RJ-45 DMX (with optional DMX interface): 3-pin locking XLR PC/uploader: Serial port Power cable entry: IEC connector (230 V model), hard-wired (110 V model), cable supplied

Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 6.3 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)

Typical Power and Current US model: 110 V, 60 Hz: 880 W, 8.0 A 115 V, 60 Hz: 960 W, 8.4 A 120 V, 60 Hz: 1040 W, 8.7 A EU model: 220 V, 50 Hz: 1140 W, 5.3 A 230 V, 50 Hz: 1240 W, 5.5 A 240 V, 50 Hz: 1350 W, 5.7 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C

Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995) US safety: UL Std. 60335-1

ETL US ONLY

Included Items User manual: 35000160 Remote control with 5 m cable and RJ-45 connector: 92765028 Container 2.3 l: 34300534 3 m power cable, IEC, w/o plug: xxxx Safety eye bolt (pre-installed): xxxx

Accessories Regular DJ fluid: Pro Smoke Super (ZR Mix) fluid: Magnum 1500 DMX Interface Module: 91612000 G-clamp: 91602003 Half-coupler clamp: 91602005 DMX termination plug, 3-pin male XLR: 91613017 Ducting Kit incl. adapter and 5 m of 4-inch (104mm) ducting: 92625008

Ordering Information Magnum 1500, 110 V, 60 Hz US Model: 91120100 Magnum 1500, 230 V, 50 Hz EU Model: 91120000
