Mania PR1 (discontinued)

Mania PR1
Larger Images

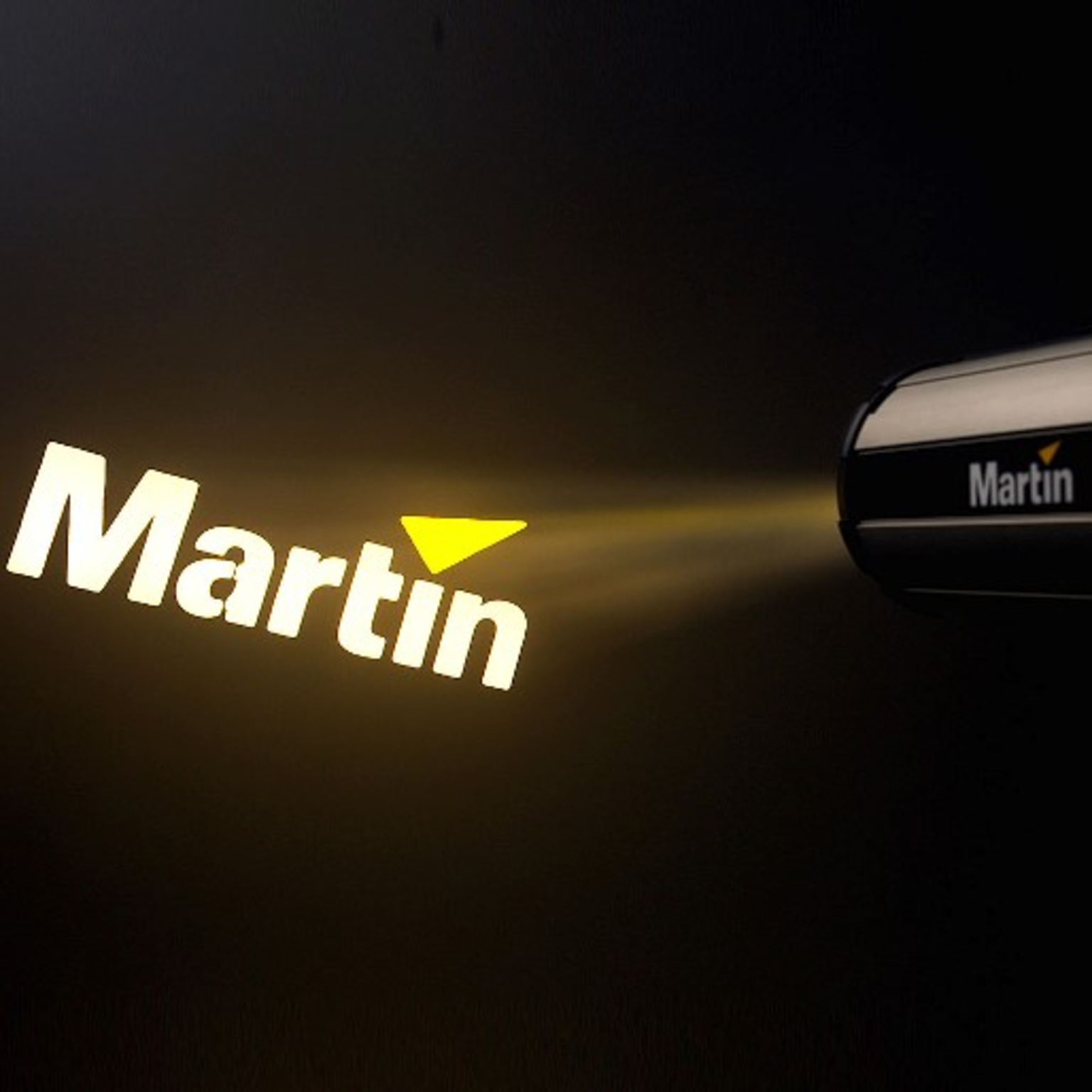

The Mania PR1 is a 250 W image projector designed for high-quality projections of patterns, images, logos and messages.

Features

  • 250 W halogen lamp
  • 1000 hour lamp included
  • Color slot for interchangeable color filter
  • Manual focus with 25° or 32° spread angle (optional 43°)
  • Variable focus, variable effect rotation speed, rotating direction control with or without remote ctrl.
  • Continuous operation - no cool down time needed
  • Rotating interchangeable gobo (steel or glass)

Specifications

Physical Length: 340 mm (13.4 in.) Width: 290 mm (11.5 in.) Height: 158 mm (6.3 in.) Weight: 9 kg (19.9 lbs.)
Dynamic Effects Rotating gobo: One slot for metal/glass gobo or color/texture glass Filter: One slot for additional color filter
Control and Programming Control options: Onboard or remote control Rotating gobo control: Static/rotate, variable direction and speed Remote control unit: 4-fixture control with up to 10 m between fixtures
Lamp Type: 250 W, 24 V EVC/FGX halogen Fitted as standard: Philips 6958/10H 250 W (1000 hrs.) Socket: G6.35
Optics Beam angle: 25°, configurable to 32° with supplied spacer ring or 43° with converter accessory Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Gobos Size: D Maximum image diameter: 40 mm Additional color filter length x width: 51 mm x 54 mm Additional color filter thickness: 1.1 mm - 2 mm
Installation Mounting points: Adjustable mounting bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket Remote control in/out: RJ-45
Electrical AC power: 115-120/220-240 V, 50/60 Hz, switch-selectable Main fuse: 3.15 AT (slow blow)
Typical Power and Current 115 V, 60 Hz: 255 W, 2.2 A 120 V, 60 Hz: 262 W, 2.2 A 220 V, 50 Hz: 229 W, 1.0 A 230 V, 50 Hz: 255 W, 1.1 A 240 V, 50 Hz: 265 W, 1.1 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 95° C Total heat dissipation (calculated, +/- 10%): 890 BTU/hr.
Approvals US safety: UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE ETL C US Intertek
Included Items Philips 6958 10H 24 V, 250 W 1000 hour lamp: 97000115 Adjustable mounting bracket: 23811330 Remote control: 55430211 5 m UTP cable, RJ-45, for remote control: 11840095 PR Series Gobo Set 1 with 10 metal theme gobos: 91611216 Red-hued texture glass (installed): 43052502 Blue-hued texture glass: 43052501 Steel gobo with Martin logo: 43056025 32° beam angle lens spacer ring: 17200957 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 White glove with Martin logo: 50590002 2 mm Allen key: 50520612 User manual: 35000148
Accessories 43° beam angle converter kit: 91610074 Half-coupler clamp: 91602005 UTP patch cable, 5 m, RJ-45: 11840095
Spare Parts Philips 6958 10H 24 V, 250 W 1000 hour lamp: 97000115 3.15 AT main fuse: 05020013
Ordering Information Mania PR1, US model: 90430031 Mania PR1, EU model: 90430030
