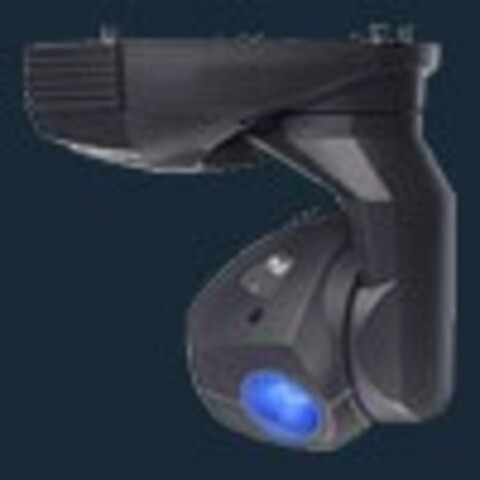

The MiniMAC Wash is an automated single-armed moving-head fresnel washlight. Its compact and stylish appearance makes it attractive for all kind of applications from restaurants to discotheques.
Larger Images
Features
- 12 rich dichroic colors
- 3-digit LED control panel
- Bright 150 W discharge source included
- Controllable strobe effect and black out
- Fast and precise movement, 540° of pan by 270° of tilt,
- Multiple control options; DMX, a stand-alone, host/client capability.
- Soft-edged 40° beam (optional 23° beam)
- Switch-selectable power supply settings
Specifications
Physical Length: 390 mm Width: 316 mm Height: 415 mm Weight: 11.6 kg
Dynamic Effects Color wheel: 12 colors + open, continuous rotation Shutter: Strobe effect variable up to 11.4 Hz Pan: 540° in 0.013° steps Tilt: 270° in 0.007° steps
Control and Programming Control options: DMX512, stand-alone, host/client, Martin MC-1 DMX channels: 4-8 Setting and addressing: Onboard control panel with 3-digit display 16-bit control: xxxx Movement control options: Tracking and vector Stand-alone memory: Automatic and programmable 7-scene sequence Stand-alone trigger options: Music, internal timer Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 150 W discharge Fitted as standard: Martin HTI 150M or Osram 152M Metal Halide Socket: GY 9.5 Approved alternative lamp(s): Osram HTI 150
Construction Color(s): Black, white, titanium Housing: UV-resistant fiber-reinforced composite Finish: Integral black color or polyurethane coating Protection rating: IP20
Installation Mounting points: 1 pair of 1/4-turn locks for clamp bracket Orientation: Any Minimum distance to combustible materials: 0.3 m Minimum distance to illuminated surfaces: 0.3 m Minimum clearance around fan and air vents: 0.1 m Minimum center-to-center installation distance: 316 mm
Connections AC power input: 3-pin IEC DMX data in/out: 3-pin locking XLR
Electrical AC power: 100/120/210/230/250 V, 50/60 Hz Main fuse: xxxx
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 60° C Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz / 110 V, 60 Hz): 700 BTU/hr.
Approvals EU EMC: EN 50 081-1, EN 50 082-1 EU safety: EN 60598-1, EN 60598-2-17 Canadian safety: CSA C22.2 No. 166 US safety: ANSI/UL 1573
Included Items User manual: 35000084 Martin/Osram Metal Halide 150 lamp: 97010107 3 m power cable, 3-pin IEC: 11501013 5 m data cable, 3-pin XLR: 11820008 Attachment bracket for mounting clamp: 56600016 Safety cable eye bolt: 08131901
Accessories Pantograph, adjustable 10-60 cm: 91602006 Flush mount bracket: 91606009 G-clamp: 91602003 Half-coupler clamp: 91610005 Flightcase (holds 2 fixtures): 91510007
Ordering Information MiniMAC Wash in cardboard box, black: 90230400 MiniMAC Wash in cardboard box, white: 90230430 MiniMAC Wash in cardboard box, titanium: 90230432
