RUSH BATTEN 1 HEX (discontinued)

Static LED batten with RGBAW-UV color mixing

RUSH BATTEN 1 HEX

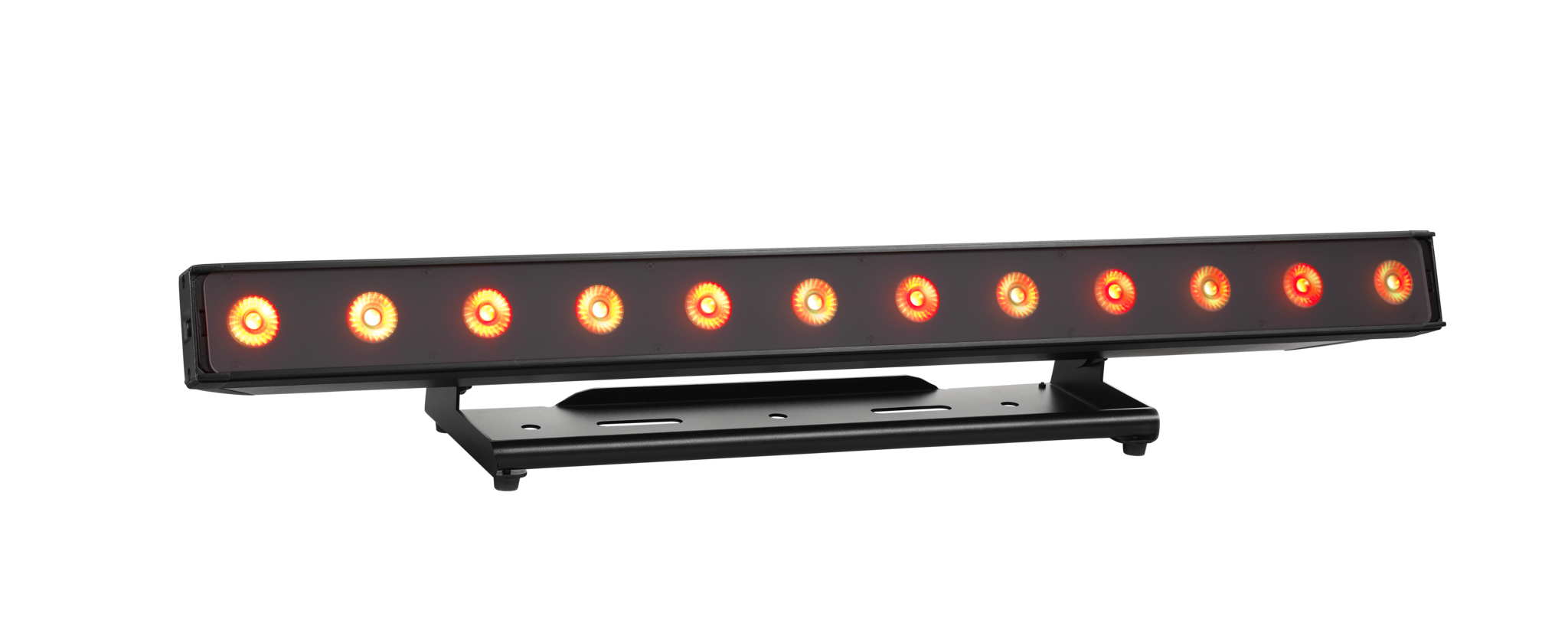

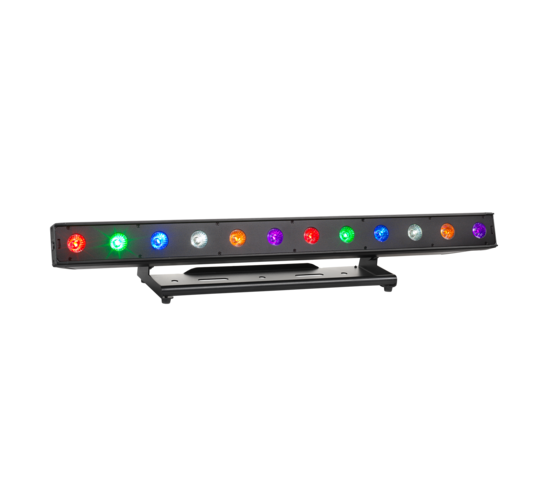

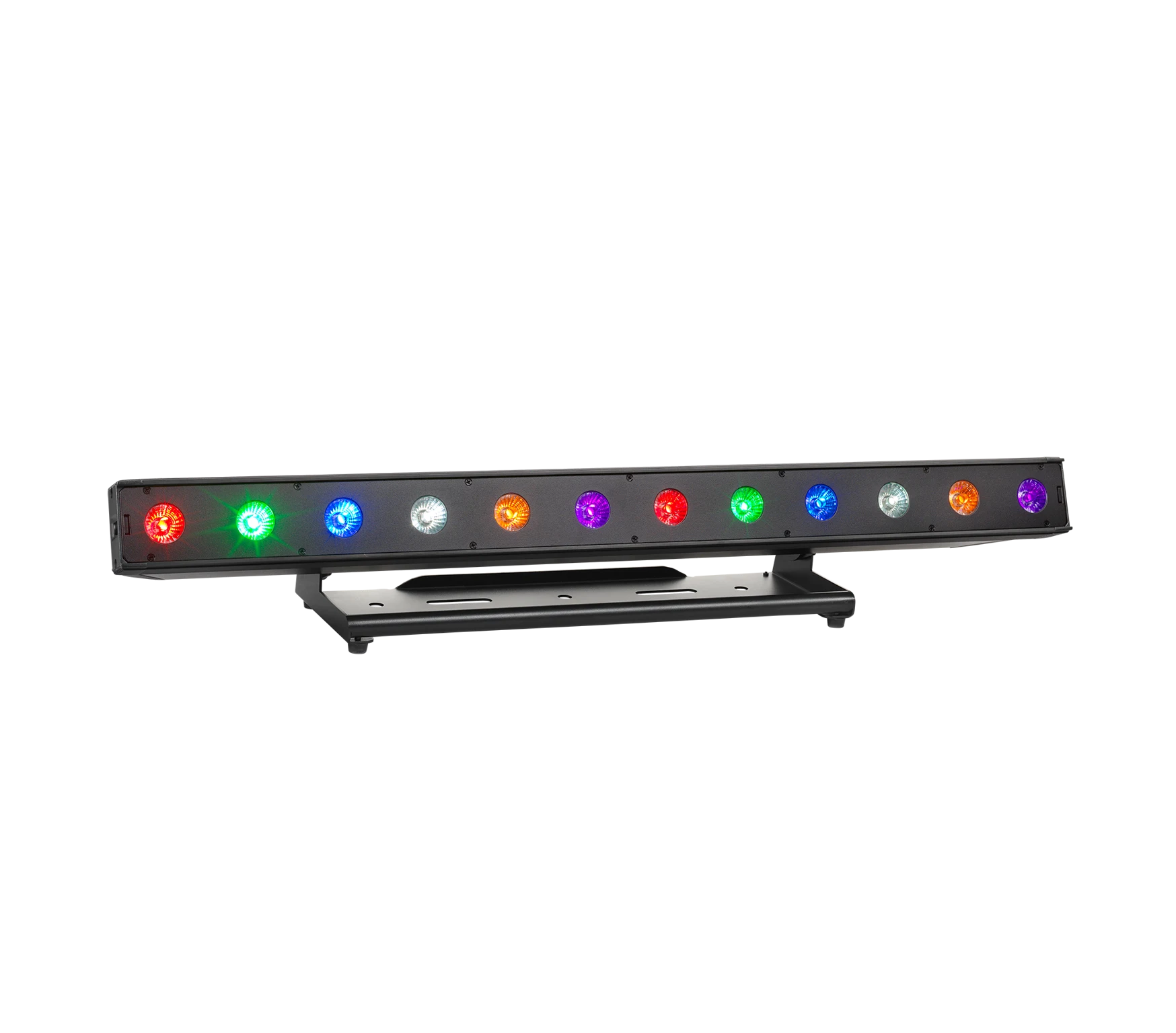

The RUSH BATTEN 1 HEX is an ultra-bright 12-cell batten color + UV wash fixture with full pixel control. Featuring 12 watt RGBAW+UV 6-in-1 LEDs, the RUSH BATTEN 1 HEX can providing intense light for color, white, or blacklight applications. With available pixel mapping of the individual LEDs and controllable electronic dimming, strobe, and pulse effects, designers can achieve a variety of exciting looks. A removable diffuser/lens increases the beam angle from 25° to 32°, and brackets are available for floor or truss mounting. The LED source and rugged, lightweight construction make it ideal for live shows, TV events, stage, concerts, and nightclubs.

  • Bright batten with 12 individually-controllable RGBAW+UV LEDs
  • Electronic dimming, strobe, and pulse effects
  • 25° and 32° beam angles available

Features

  • 12-cell batten with RGBAW+UV 6-in-1 LEDs
  • Full pixel control of individual LEDs
  • Removable diffuser/lens that increases the beam angle from 25° to 32°
  • Electronic dimming and Strobe
  • Brackets are available for floor or truss mounting
  • Lightweight construction (8 kg / 15 lbs.)

Specifications

  • Physical Length: 900 mm (35.4 in.) Width: 100 mm (3.9 in.) Height: 200 mm (7.9 in.) Weight: 6.8 kg (15 lbs.)
    Dynamic Effects Dimming: 0 – 100%, coarse & fine control Shutter: Strobe & pulse effects, instant open and blackout Color Effect: RGBAWUV (6-in-1) color mixing
    Control and Programming Control systems: USITT DMX512/1990 with RDM DMX channels: 13, 80 RDM compliance: ANSI/ESTA E.120 Interface: Control panel with backlit LCD display
    Optics Beam angle: 25° (without diffuser), 33° (with diffuser) Field angle: 44° (without diffuser), 63° (with diffuser)
    Construction Housing: Extruded aluminium, thermoplastic end caps Color: Black Protection rating: IP20
    Installation Mounting points: Adjustable bracket, surface or truss mount Location: Indoor location only Orientation: Any Minimum distance to combustible materials: 0.1 m (4 in.) Minimum distance to illuminated surfaces: 0.5 m (20 in.)
    Connections AC power input/output: Neutrik PowerCon DMX and RDM data in/out: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Fuse: T 250 V 1.0 A Typical half-cycle RMS inrush current: 9.7 A Recommended Miniature Circuit Breaker when power linking: Type D* Maximum total power consumption: 148 W *Per IEC 60898/UL489/CSA C22.2 No. 5
    Typical Power and Current 100 V, 60 Hz: 148 W, 1.6 A, PF 0.978 120 V, 60 Hz: 148 W, 1.3 A, PF 0.972 230 V, 50 Hz: 148 W, 0.78 A, PF 0.821 Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM
    Included Items Power cable, 1.5 m without mains plug
    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female: P/N 91611794

    Cables, 16 A, for connection to power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG,SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Installation hardware:

    Half-coupler clamp: P/N 91602005
    G-clamp (vertical hanging suspension only): P/N 91602003
    Quick-trigger clamp (vertical hanging suspension only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information RUSH BATTEN 1 HEX in cardboard box: P/N 90480160

Downloads

  Version Language Size Uploaded
Specifications
file type icon RUSH BATTEN 1 HEX Spec Sheet-English
en updated: Oct 2020
  en  259 KB Oct 2020
Manuals
file type icon RUSH BATTEN 1 HEX - Manuel d 'utilisation
fr version B, updated: May 2018
fr  1.08 MB May 2018
file type icon RUSH BATTEN 1 HEX - User Manual
en version B, updated: Jul 2020
en  1.7 MB Jul 2020
file type icon RUSH BATTEN 1 HEX - Bedienungsanleitung
de version B, updated: Jul 2020
de  1.2 MB Jul 2020
Photometrics
file type icon RUSH Batten - Photometrics
en version A, updated: Oct 2021
en  103 KB Oct 2021
Illustrations
file type icon RUSH Batten - 2D dimensions.PDF
en version A, updated: May 2018
en  2.42 MB May 2018
file type icon RUSH Batten - 2D dimensions.DWG
en version A, updated: May 2018
en  9.29 MB May 2018
CAD Drawings
file type icon RUSH Batten - 3D dimensions.3DS
en version A, updated: May 2018
en  3.98 MB May 2018
file type icon RUSH Batten - 3D dimensions.DWG
en version A, updated: May 2018
en  2.58 MB May 2018
Compliances
file type icon RUSH BATTEN 1 HEX - Déclaration de Conformité
fr version A, updated: May 2018
fr  171 KB May 2018
file type icon RUSH BATTEN 1 HEX - Listing Verification
en version A, updated: May 2018
en  278 KB May 2018
file type icon RUSH BATTEN 1 HEX - Declaration of Conformity
en version B, updated: Apr 2021
en  209 KB Apr 2021
Service Notes
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 2020
  743 KB Oct 2020
Firmware
platform icon RUSH BATTEN 1 HEX - Firmware
version 1.4.0, updated: Mar 2024
1.4.0     Mar 2024
