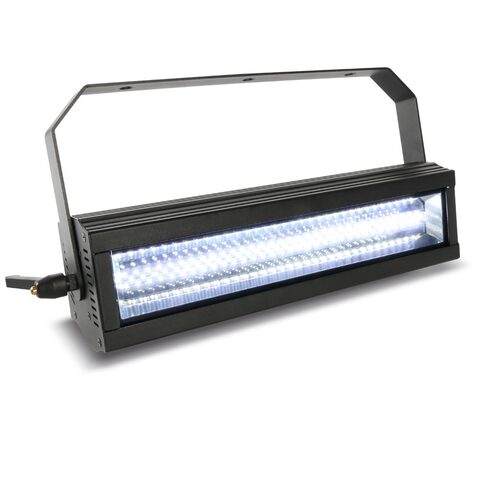

RUSH Strobe CWL (discontinued)

Larger Images

This bright and compact LED linear strobe utilises 99 x 3 W Cree XP-D LEDs with a reflector design that offers a traditional Xenon strobe look with a 17,000 lumen output. From a single flash to a blinder effect, the RUSH™ Strobe CWL is the perfect companion for mobile DJs, lounge bars, venues and cruise ships.

  • 99 x Cree XP-D 3 W cold white LEDs
  • Reflector design
  • 1-25 FPS and blinder effect







  • Compact LED linear strobe
  • 17,000 lumens output
  • Color system: 99 x cold white LED
  • 87° beam angle
  • 8 strobe macros


PhysicalLength: 505 mm (19.9 in.)Width: 140 mm (5.5 in.)Height: 226 mm (8.9 in.)Weight: 4.0 kg (8.9 lbs.)
Dynamic EffectsStrobe rate: 0 - 25 HzStrobe duration: 0 - 10 ms (50 Hz supply), or 0 – 8.3 ms (60 Hz supply)Blinder effect: Continuous with auto fadeSpecial effects: Ramp up/down, up-down, random flash, lightning, blinder, single flash
Control and ProgrammingControl options: DMX, stand-alone, master/slave, sound triggerDMX channels: 1 or 4Setting and addressing: Control panel with LCD displayCompliance: USITT DMX512/1990
OpticsBeam angle: 87°Light source: 99 x 3 W CREE white XB-D LEDColor temperature: 7000-8000 KMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under test conditions
ConstructionColor: BlackHousing: Steel and aluminumProtection rating: IP 20
InstallationMounting points: Bracket with 13.5 mm holesOrientation: AnyLocation: Indoor use only, must be fastened to surface or structureMinimum distance to illuminated surfaces: 0.2 m (8 in.)Minimum distance to combustible materials: 0.1 m (4 in.)Minimum clearance around fans and vents: 0.1 m (4 in.)
ConnectionsAC power in/thru: Neutrik PowerConDMX data in/thru: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Diode bridge
Typical Power and Current110 V, 60 Hz: 2.5 A, 250 W, PF 0.9230 V, 50 Hz: 2.7 A, 380 W, PF 0.6Measurements made at nominal voltage. Allow for a deviation of +/-10%.PF = Power Factor
ThermalCooling: Forced air (temperature regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min): 0° C (32° F)
ApprovalsEU safety: EN 60598-2-17 (EN 605981-1)EU EMC: EN 55015, EN55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class ACanadian safety: CSA 22.2 No. 166Australia/NZ: C-Tick N4241
Included ItemsEU version: 1.5 m (5 ft.) power cable without mains plug, mounting bracketUS version: 1.5 m (5 ft.) power cable with mains plug, mounting bracket
AccessoriesPower cables, 16 A, for connection to power in chainsPower input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11541509Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11541510Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.): P/N 11541511Power connectorsNeutrik PowerCon NAC3FCA female connector for power in, cable mount, blue: P/N 05342804Neutrik PowerCon NAC3FCB male connector for power out/thru, cable mount, light grey: P/N 05342805DMX linkDMX termination plug, 3-pin male XLR: P/N 91613017Installation hardwareFour-unit bracket for RUSH Strobe CWL: P/N 91606019Half-coupler clamp: P/N 91602005G-clamp: P/N 91602003
Related ItemsRUSH™ Software Uploader 1: P/N 91611399
Ordering InformationRUSH™ Strobe CWL EU model in cardboard box: P/N 90480110RUSH™ Strobe CWL US model in cardboard box: P/N 90480115


  Version Language Size Uploaded
RUSH Strobe CWL - Manuel d'utilisation fr  560 KB May 18, 2018
RUSH Strobe CWL - User Manual en  633 KB May 18, 2018
RUSH Strobe CWL - Bedienungsanleitung de  617 KB May 18, 2018
RUSH Strobe CWL - 2D (PDF) en  596 KB May 18, 2018
RUSH Strobe CWL - 2D (DWG) en  504 KB May 18, 2018
3D Symbols
Vectorworks Symbols 2.7  en  251 MB Oct 08, 2019
RUSH Strobe CWL – ETL Listing Verification en  384 KB May 18, 2018
RUSH Strobe CWL - EU Declaration of Conformity en  45.4 KB May 18, 2018
RUSH Strobe CWL - Software 1.1  en  137 KB May 12, 2018
RUSH Uploader DMX - Tool 1.1  en  1.18 MB Aug 07, 2018
Service Notes
3D Partsfinder - Opening using Solid Works Composer Player   814 KB Oct 01, 2019
Tech Notes
Avoiding damage from sunlight and other light sources     Sep 22, 2017
Hints And Tips
Avoiding damage from sunlight and other light sources en    May 22, 2018
