Stagebar 2 (discontinued)

Larger Images

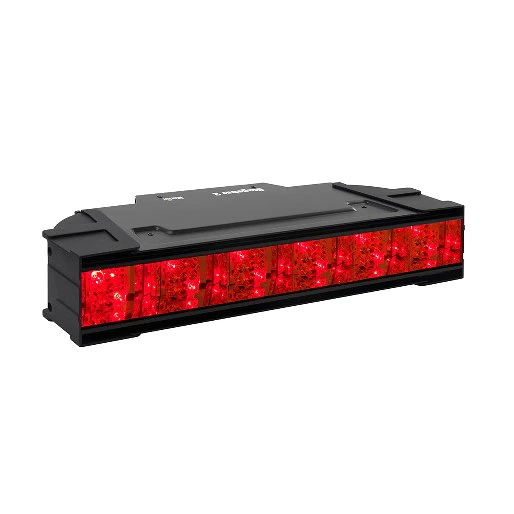

With twice the lumen output and 10 times the intensity of the Stagebar 54, the Stagebar 2 is an extremely capable LED pixel bar and wash luminaire. This exceptional performance is obtained by combining the latest LED technology with an advanced lens design. The Stagebar 2 offers a wide range of shades from an RGBAW color mixing system and is useful for displaying imagery and video or for floodlighting surfaces and stages.

Features

  • RGBAW color mixing system for outstanding color palette
  • Factory color calibration
  • Over 3,000 lm per ft (almost 10,000 lm per meter)
  • Super high intensity and tighter beam due to advanced lens design
  • Opal diffuser lens for scenic on-camera looks
  • Quiet operation
  • Battery-powered control menu for off-site setup without power
  • Daisy chained power and data

Specifications

Physical Length: 420 mm, Stagebar 2 S Length: 630 mm, Stagebar 2 L Width: 190 mm Height: 105 mm Weight: 5.5 kg without bracket, Stagebar 2 S Weight: 7.3 kg without bracket, Stagebar 2 L
Dynamic Effects Color mixing: RGBAW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Amber: 0 - 100% White: 0 - 100%
Control and Programming Color control modes: RGBAW, RGB, HSI, HSIC DMX channels: 3 - 30 Grouped pixel control options: 6 x 1 (individual), 3 x 2, 2 x 3 or 1 x 6 (all as one group) pixels DMX address setting: Manual, auto addressing and auto address copy Fixture setup: Onboard control panel with display Display: Battery-powered backlit LCD, 2 x 16 characters 16-bit control (internal): RGBAW, RGB, HSI, HSIC Protocol: USITT DMX512-A Receiver: RS-485 Firmware update: Serial upload via DMX link
Photometric Data Light source: Cree XP-E high power emitters Total LED power per bar: 150 W Even pitch across adjacent fixtures: Horizontal/vertical (Stagebar 2 L), horizontal (Stagebar 2 S) Total output (max.): 3650 lm LED refresh rate: 400 Hz
Construction Color: Black Housing: Steel and aluminum Finish: Electrostatic powder-coated Protection rating: IP20
Installation Mounting points: Adjustable mounting bracket, 1/4-turn locks, four M6 threaded holes Orientation: Any
Connections Power in/out: Neutrik PowerCon Data in/out: 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage Power output fuse: 15 AT (slow blow) Main fuse: 4 AT (slow blow)
Typical Power and Current 100 V, 50 Hz: 238 W. 2.5 A, PF 0.998 100 V, 60 Hz: 240 W, 2.5 A, PF 0.998 110 V, 60 Hz: 237 W, 2.3 A, PF 0.997 120 V, 60 Hz: 233 W, 2.1 A, PF 0.996 208 V, 60 Hz: 228 W, 1.2 A, PF 0.986 220 V, 50 Hz: 227 W, 1.1 A, PF 0.986 220 V, 60 Hz: 244 W, 1.3 A, PF 0.984 230 V, 50 Hz: 225 W, 1.1 A, PF 0.986 240 V, 50 Hz: 224 W, 1.0 A, PF 0.984 Figures apply to both S and L models with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Maximum surface temperature, steady state, Ta=40° C: 90° C Total heat dissipation (calculated, +/- 10%): 860 BTU/hr.
Licensing Available under license from Color Kinetics Incorporated:
Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55 015, EN 55 103-1, EN 55 103-2 US safety: ANSI/UL 1573 Canadian safety: CAN/CSA E598-2-17 (CAN/CSA E60598-1)
CE ETL C US Intertek
Included Items Opal front cover: Narrow diffuser filter: Omega clamp attachment bracket with quarter-turn fasteners: 91602001 User manual: 35000250
Accessories Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m: 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: 05342805 Set of 4 Narrow diffuser filters, Stagebar 2 S: 91614035 Set of 4 Medium diffuser filters, Stagebar 2 S: 91614036 Set of 4 Narrow diffuser filters, Stagebar 2 L: 91614037 Set of 4 Medium diffuser filters, Stagebar 2 L: 91614038 Adjustable floorstand/mounting bracket: 71606007
Related Items Martin USB Duo™ DMX Interface Box: 90703010 Martin DMX 5.3 Splitter™: 90758140 Martin RDM 5.5 Splitter™: 90758150
Spare Parts Opal front cover, Stagebar 2 S: 41704080 Opal front cover, Stagebar 2 L: 41704060 Lens array with magnetic mounting: 41350049 4 AT main fuse: 05020016
Ordering Information Stagebar 2™ S, RGBAW: 90352070 Stagebar 2™ L, RGBAW: 90352090

Downloads

  Version Language Size Uploaded
Manuals
Manuel d´utilisation
fr version B, updated: Jul 24, 2020
fr  632 KB Jul 24, 2020
User manual
en version B, updated: Jul 24, 2020
en  504 KB Jul 24, 2020
Bedienungsanleitung
de version B, updated: Jul 24, 2020
de  619 KB Jul 24, 2020
Illustrations
Stagebar 2 L+S Dimensions Drawing PDF 2D
en version A, updated: May 11, 2018
en  453 KB May 11, 2018
Stagebar 2S 3D Symbol
en version A, updated: May 11, 2018
en  1.95 MB May 11, 2018
Stagebar 2L 3D symbol
en version A, updated: May 11, 2018
en  1.92 MB May 11, 2018
Compliances
EU Declaration of Conformity
en version A, updated: May 18, 2018
en  370 KB May 18, 2018
ETL Listing Verification
es version C, updated: Oct 22, 2020
es  336 KB Oct 22, 2020
Firmware
Stagebar 2 - Firmware
version 1.0.0, updated: Nov 24, 2020
1.0.0     Nov 24, 2020
