ELP CL IP

Full Color LED Ellipsoidal IP65 Rated

ELP CL IP

Martin ELP LED ellipsoidal fixtures deliver the luminance, brightness and vivid color rendering that have been synonymous with the Martin name for more than 30 years. Martin ELP CL IP offers the same rich saturated colors and class leading output as the original Martin ELP CL but expands its versatility into temporary outdoor applications through IP65 compliance for moisture resistance and complete dust protection, along with C3 corrosion resistance. ELP’s ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP CL IP is available in black and white housing options and can be configured with one of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles, or a choice of two Martin Zoom lenses with choice of 15–30-degree and 25–50-degree range. ELP also offers flexibility in lighting design and inventory management through compatibility with third-party lens tubes along with a wide range of accessories including gel frames and gobos. Superior output, optics and color rendering, combined with robust protection from the elements, unparalleled ease-of-use and convenience, make Martin ELP the leading LED ellipsoidal fixture in its class.

Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.

  • Advanced Martin Optics Meet Cutting-Edge LED Technology
    The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures. Halation color correction removes atypical blue and brown halos when using Martin lens tubes.

    The ELP CL IP fixture offers an impressive 6,900 lumens and a CRI of 85 in High Output mode, and 5,900 lumens and 90 CRI in High Quality mode, with a color temperature of 6,000K (open white), and provides flicker-free operation for consistent light output on and off camera.

  • Classic Style With a Focus on Functionality
    ELP CL IP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output without data running to the fixture.

    Rugged enclosures are IP65 rated for water resistance and complete protection against dust and other particulates.

  • Expand Versatility With ELP Zoom Lenses
    In addition to a choice of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles you can expand the versatility and range of ELP with Zoom Lenses in 15–30-degree and 25–50-degree ranges. The 6 lens optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens.

  • Invest in the Future, With a Minimal Financial Investment
    It’s never been easier to transition your inventory to LED ellipsoids: The ELP line fits common lens tubes and accessories, which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.

featured content

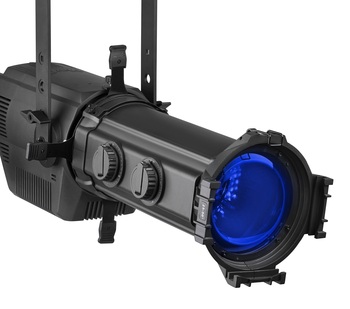

Advanced Martin Optics Meet Cutting-Edge LED Technology
The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures. Halation color correction removes atypical blue and brown halos when using Martin lens tubes.

The ELP CL IP fixture offers an impressive 6,900 lumens and a CRI of 85 in High Output mode, and 5,900 lumens and 90 CRI in High Quality mode, with a color temperature of 6,000K (open white), and provides flicker-free operation for consistent light output on and off camera.

featured content

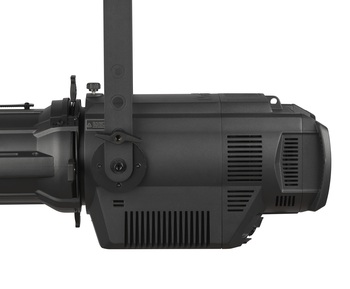

Classic Style With a Focus on Functionality
ELP CL IP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output without data running to the fixture.

Rugged enclosures are IP65 rated for water resistance and complete protection against dust and other particulates.

featured content

Expand Versatility With ELP Zoom Lenses
In addition to a choice of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles you can expand the versatility and range of ELP with Zoom Lenses in 15–30-degree and 25–50-degree ranges. The 6 lens optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens.

featured content

Invest in the Future, With a Minimal Financial Investment
It’s never been easier to transition your inventory to LED ellipsoids: The ELP line fits common lens tubes and accessories, which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.

Features

  • Legendary Martin quality in LED ellipsoidal light fixtures
  • Advanced optics engineered in Denmark
  • RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
  • Class-leading output of 6,900 lumens (in High Output mode)
  • Superior CRI rating of 90 (in high quality mode)
  • Fast focus feature for data free focusing
  • Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time.
  • IP65 rated for water resistance and complete protection against dust and other particulates
  • 26 color presets match industry-standard filters
  • 16-bit dimming with 4 selectable dimming curves
  • Compatible with universal accessories such as gel frames and gobo holders and rotators
  • Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
  • Halation color correction removes atypical blue and brown halos when using Martin lens tubes.
  • Flicker-free operation
  • 4-blade manual framing shutters
  • Center of gravity at yoke for ergonomic use
  • Regulated cooling for ultra-quiet operation
  • 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Specifications

  • Physical Length: 644 mm (25.4 in.) Width: 255 mm (10.1 in.) Height: 255 mm (10.1 in.), 527 mm (20.1 in.) with bracket Weight: 11 kg (24.3 lb.) body only
    Dynamic Effects Color mixing: RGBLA Color Temperature Range: 2000–10000K Color selection: 26 color presets Electronic dimming: 0–100%, Four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout
    Control and Programming Control options: DMX, stand-alone Setting and addressing: Control panel with OLED display or via RDM 16-bit control: Intensity, CTC, RGBLA DMX channels: 1/10/17 PWM: 600–2400 Hz DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Stand-alone programming: Control panel with OLED display
    Optics Light source: 91 x RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber) Minimum LED lifetime: 30 000 hours (to >70% luminous output)* Color temperature: 2000–10000K Fixed Lens Tube Options: 19°, 26°, 36° and 50° Zoom Lens Tube Options: 15–30° and 25–50° Binning: Tight color and flux binning Calibration: White Point Color Calibration *Figure obtained under manufacturer's test conditions
    Photometric Data

    Light engine luminous output: 20,000 lumens High Output Mode Fixture luminous output: 6,900 lumens CRI (Color Rendering Index): >85 CQS (Color Quality Scale): >90 TM-30 Rf (IES TM-30-15 Fidelity Index): >84 TM-30 Rg (IES TM-30-15 Gamut Index): >111 TLCI (Television Lighting Consistency Index): >85 CCT: 5500 K (+/- 250 K) High Quality Mode Fixture luminous output: 5,900 lumens CRI (Color Rendering Index): >90 CQS (Color Quality Scale): >87 TM-30 Rf (IES TM-30-15 Fidelity Index): >84 TM-30 Rg (IES TM-30-15 Gamut Index): >106 TLCI (Television Lighting Consistency Index): >87 CCT: 6000 K (+/- 250 K)
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Die-cast aluminum Color: Black or white variant Protection rating: IP65
    Gobos and Color Frame Gobo size :

    A size, 100 mm OD, 75 mm image*
    Gobo size: B size, 86 mm OD, 64.5 mm image*

    Color frame size: 159 x 159 mm (6.25 in. x 6.25 in.)
    *Gobo holder not included.
    Installation Mounting: Adjustable bracket Location: Indoor, outdoor use, suitable for wet locations Orientation: Any Minimum distance to combustible materials: 0.2 m (0.7 ft.) Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
  • Connections AC power in, thru: IP65-rated Neutrik PowerCON TRUE1 TOP DMX & RDM data in/thru: IP65-rated 5-pin XLR
    Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
    Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
    Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V ,  1.3 A @ 230 V , 1.1 A @ 240 V *
    Power Consumption
    Typical: 259 W *
    Idle: 5 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

    Thermal Cooling: Forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1000 BTU/hr. Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 28 lm/W LWR*: 627 lm/kg (284 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-3 (B)/NMB-3 (B); ICES-5 (B)/ NMB-5 (B) Australia/NZ: RCM
    Included Items

    Mounting bracket
    User manual

    Related Items Martin Companion Cable: P/N 91616091 Martin ELP Lens Tube 19°: P/N 9045107782 Martin ELP Lens Tube 19° White : P/N 9045115166 Martin ELP Lens Tube 26°: P/N 9045107783 Martin ELP Lens Tube 26° White : P/N 9045115167 Martin ELP Lens Tube 36°: P/N 9045107784 Martin ELP Lens Tube 36° White : P/N 9045115168 Martin ELP Lens Tube 50°: P/N 9045107785 Martin ELP Lens Tube 50° White : P/N 9045115170 Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618 Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108 Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619 Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109
    Accessories

    Power Input Cables (16 A)*
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

    Power Relay Cables*
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 2.5 m (8.2 ft.): P/N 91611796

    Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors*
    Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788HU
    Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789HU
    *All TRUE1 connectors are IP65-rated TOP type

    Spare Parts
    Pressure Relief Valve with Gore membrane, M12 x 1.5: P/N 5127883-00

    Installation hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information Martin ELP CL IP (Body Only): P/N 9045122814 Martin ELP CL IP (Body Only), White: P/N 9045122816

Downloads

  Version Language Size Uploaded
Specifications
file type icon ELP CL IP Spec Sheet
en version A, updated: Dec 2020
en  1.03 MB Dec 2020
file type icon Martin ELP CL IP Acoustic Test Report
en version A, updated: Oct 2020
en  1.07 MB Oct 2020
Manuals
file type icon ELP CL IP User Manual
en version D, updated: Sep 2023
en  1.58 MB Sep 2023
file type icon ELP CL IP User Manual
de version B, updated: Oct 2020
de  1.41 MB Oct 2020
file type icon ELP CL IP User Manual
fr version B, updated: Oct 2020
fr  2.23 MB Oct 2020
Photometrics
file type icon ELP CL IP Photometric Files
en version A, updated: Oct 2020
en  11.6 MB Oct 2020
Illustrations
file type icon ELP IP - 2D Dimensions (DWG)
en version A, updated: Oct 2020
en  8.3 MB Oct 2020
file type icon ELP IP - 2D Dimensions (PDF)
en version A, updated: Oct 2020
en  792 KB Oct 2020
Symbols
file type icon AutoCAD 3D Symbols
en version 2.2, updated: Mar 2024
2.2  en  14.3 MB Mar 2024
file type icon AutoCAD 2D Symbols
en version 2.2, updated: Mar 2024
2.2  en  3.74 MB Mar 2024
file type icon Vectorworks Symbols
en version 3.9, updated: Mar 2024
3.9  en  373 MB Mar 2024
CAD Drawings
file type icon ELP IP 3D Files
en version A, updated: Oct 2020
en  7.19 MB Oct 2020
Compliances
file type icon ELP IP Listing Mark Verification Letter
en updated: Jul 2020
  en  147 KB Jul 2020
file type icon ELP IP Supplier's Declaration of Conformity
en updated: Jul 2020
  en  652 KB Jul 2020
file type icon ELP IP Declaration of Conformity
fr updated: Jul 2020
  fr  708 KB Jul 2020
file type icon ELP IP Declaration of Conformity
en updated: Jul 2020
  en  715 KB Jul 2020
Firmware
platform icon ELP CL IP - Firmware
version 1.0.08, updated: Mar 2024
1.0.08     Mar 2024
