Exterior 1200 Wash (discontinued)

Larger Images

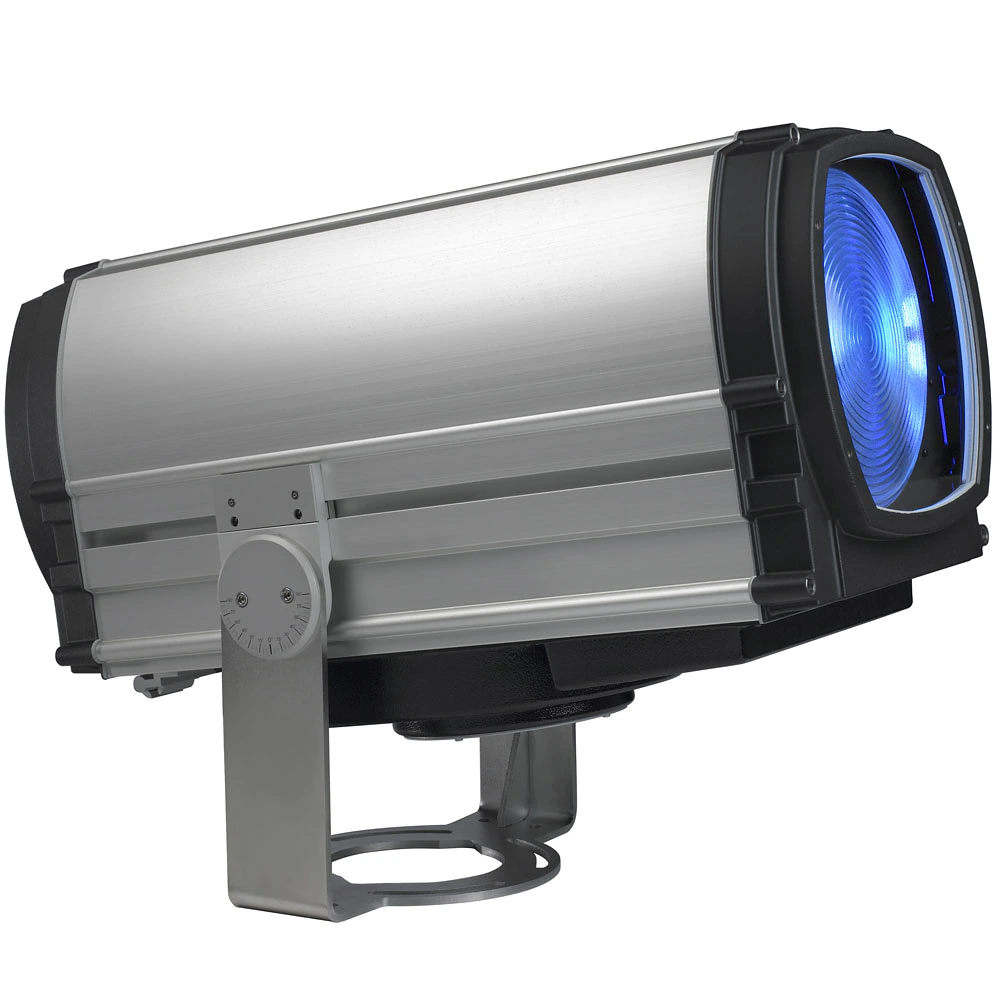

The Exterior 1200 Wash is a powerful 1200 W luminaire designed for spectacular illumination of high-rise structures, bridges and landmark architecture.

Features

  • 1200 W metal halide lamp
  • CMY color mixing system
  • Dynamic zoom for variable beam angles: 8°- 16° / 12°- 26°
  • Choice of optical systems: narrow, medium, wide or very wide
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • DMX, stand-alone, synchronized (master/slave)
  • On-board address setting: no extra devices required
  • Weatherproof rating: IP65

Specifications

PhysicalLength: 860 mmWidth: 448 mmHeight: 620 mmWeight: 68 kgEffective Projected Area (EPA): 0.6 m2
Dynamic EffectsColor mixing: CMYCyan: 0 - 100%Magenta: 0 - 100%Yellow: 0 - 100%Color wheel: Red, green, blue, CTC (as standard) + open positionsDimmer: 0 - 100%Zoom: 8°- 16° / 12°- 26°
Control and ProgrammingControl options: DMX, stand-alone, synchronized (master/slave)DMX channels: 8Stand-alone trigger options: Internal timer and/or ambient light levelStand-alone memory: 20 scenesDMX address setting: MUM, onboard control panelStand-alone programming: MUM, onboard control panelProtocol: USITT DMX512-AReceiver: RS-485
LampType: 1200 W metal halideFitted as standard: Philips MSD 1200Socket: G22Control: Automatic and/or remote on/off
ConstructionHousing: AluminumFinish: Clear anodizedFront glass: 6 mm anti-reflection coatedProtection rating: UL wet location, main enclosure designed to IP65
InstallationOrientation: Any (air intake must face down)Vertical aiming: +/- 90°
ConnectionsPower cable entry: IP68 cable glandPower connection: Quick connectorsData cable entry: IP68 cable glandData connection: RJ-45 sockets, screw terminal/quick connectors
ElectricalAC power: 200/208/220/230/240/250/277 V nominal, 50/60 HzMain fuse: 17.5 AT (slow blow)Ballast: MagneticStandby power: 18 W at 230 V
Typical Power and Current200 V, 50 Hz: 1380 W, 7.0 A, PF 0.975200 V, 60 Hz: 1405 W, 7.3 A, PF 0.960208 V, 60 Hz: 1417 W, 7.1 A, PF 0.958220 V, 50 Hz: 1373 W, 6.4 A, PF 0.973230 V, 50 Hz: 1365 W, 6.1 A, PF 0.973240 V, 50 Hz: 1370 W, 5.9 A, PF 0.973250 V, 50 Hz: 1364 W, 5.6 A, PF 0.972277 V, 60 Hz: 1417 W, 5.4 A, PF 0.956Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
ThermalMaximum ambient temperature (Ta max.): 45° CMinimum ambient temperature (Ta min.): -20° C, power must be maintained below 0° CMaximum surface temperature, steady state, Ta=45° C:70° CTotal heat dissipation (calculated, +/- 10%): 4950 BTU/hr.Cooling: Forced air, integrated air/air heat exchanger, IP65 barrier
ApprovalsUS safety: UL 1598Canadian safety: CSA C22.2 No. 250.0-04EU safety: EN 60598-1, EN 61347-1EU EMC: EN 55 015, EN 55 103-1, EN 61 000-3

Included ItemsPhilips MSD 1200 lamp: 97010313Two M16 x 1.5 IP68 cable glands, metal, cable Ø 5.5 mm - 10 mm: 13102031One M20 x 1.5 IP68 cable gland, metal, cable Ø 8 mm - 13 mm: 13102090Four M16 cable entry blanking plugs (installed), metal:13102050Two M20 blanking plugs (installed), metal: 13103030Two main fuses, 17.5 AT (installed): 05020045Main PCB fuse, 10 AT (installed): 05020025User manual:
AccessoriesBeamshaper lens: 91610081Narrow-angle lens kit: 91610088Medium-angle lens kit: 91610089Wide-angle lens kit: 91610090Very wide-angle lens kit: 91610091Permanent CTC kit: 91611258Snoot/barndoor kit: 91611257Dichroic color filters (install in color wheel):
Related ItemsMartin DABS1™ USB interface box incl. cables: 90758090
Spare PartsPhilips MSD 1200 lamp: 9701031317.5 AT main fuse: 0502004515 AT main PCB fuse: 05020039Silicone seal for front cover, Exterior 1200 IP & Wash:20600550Silicone seal for rear cover, Exterior 1200 IP & Wash:20600560Silicone seal for wiring box, Exterior 1200 IP & Wash:20620150Silicone seal for LCD display cover, Exterior 1200 IP & Wash: 20620160
Ordering InformationExterior 1200 Wash, Narrow: 90504010Exterior 1200 Wash, Medium: 90504020Exterior 1200 Wash, Wide: 90504030Exterior 1200 Wash, Very Wide: 90504040

Downloads

  Version Language Size Uploaded
Specifications
Photometric Data en    May 22, 2018
Technische Daten de  185 KB May 18, 2018
SP_Exterior1200Wash_EN_B en  19 KB May 18, 2018
SP_Exterior1200Wash_EN_C en  20.6 KB May 18, 2018
Caractéristiques techniques fr  50.1 KB May 18, 2018
Manuals
Correction: cable gland illustration en    May 22, 2018
Manuel d´utilisation fr  1.58 MB May 18, 2018
User manual en  1.3 MB May 18, 2018
Bedienungsanleitung de  1.49 MB May 18, 2018
Illustrations
Exterior 1200 Mounting bracket template en  48.5 KB May 18, 2018
Exterior 1200 Wash Dimensions (DXF) en  313 KB May 18, 2018
Exterior 1200 Wash Dimensions (PDF) en  111 KB May 18, 2018
Snoot Barndoor kit en  108 KB May 18, 2018
Compliances
ETL Authorization To Mark es  84.4 KB May 18, 2018
EU Declaration of conformity es  68.1 KB May 18, 2018
Software
Martin USB Tools 1.2    107 MB Jun 14, 2018
Exterior 1200 Wash Main CPU 1.2.0    87.7 KB Apr 20, 2018
Service Notes
3DPartsfinder Using Solid Works Composer Player     Sep 22, 2017
Exterior products - Performing a vacuum test - Tech note en  1.9 MB May 22, 2018
Main fuse is 17.5 A, P/N 05020045 en  43.4 KB May 19, 2018
3DPartsfinder using Solid Works Composer player en    May 22, 2018
CPFC Capacitor Replacement Recommendation en    May 22, 2018
Lamp Strike Difficulties Can Be Due to Disconnected Fan en    May 22, 2018
Hints And Tips
Discharge Lighting Shutdown Guidelines en    May 22, 2018
Electrical safety test equipment en    May 22, 2018
Optimizing lamp life for EXT1200 series en    May 22, 2018
