Exterior Linear CTC Cove

Outdoor rated Color Temp Controlled cove lighting

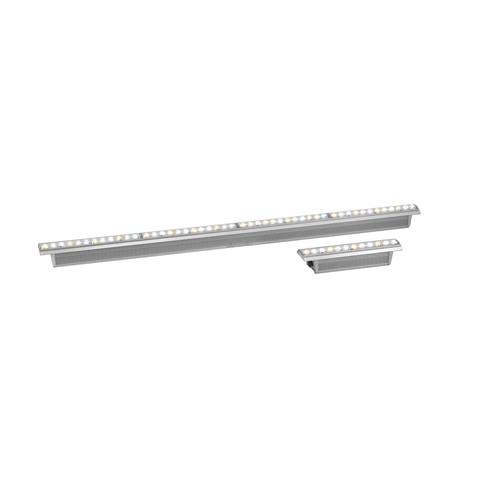

Exterior Linear CTC Cove
Larger Images

Soon to be discontinued - please contact your dealer for information

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

Exterior™ Linear 1220 Cove CTC and Exterior™ Linear 320 Cove CTC feature precise color temperature control from 2700K to 6500K and a uniform light distribution at a beam angle of 120°, suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures.

The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

Learn more about our product verification and reliability

  • Linear LED fixture with precise color temperature control
  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply
  • Easy infrastructure

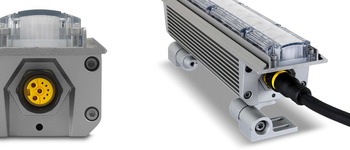

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

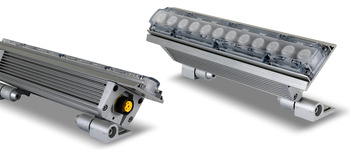

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

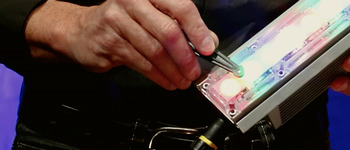

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Color Temperature Control

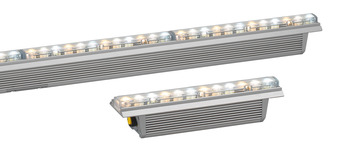

    The cold, neutral and warm LEDs allows for precise color temperature control in the range from 2700 K to 6500 K

featured content

Easy infrastructure

The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

featured content

Flexible installation

The hinged mounting bracket allows for flexible installation

featured content

Sophisticated control

The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

featured content

Color Temperature Control

The cold, neutral and warm LEDs allows for precise color temperature control in the range from 2700 K to 6500 K

Videos





Features

  • Wide spread and uniform dynamic white.
  • Very low power consumption (max 20 W/ft).
  • No extra control boxes required – connects directly to line voltage and DMX.
  • Internal power and control (DMX, RDM and magnetic tool).
  • Super rugged IP66 housing.
  • 0–100% intensity control.

Specifications

  • Physical 320 series (1 ft.) fixtures:

    Length: 305 mm (12.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 1.6 kg (3.6 lbs.)

    1220 series (4 ft.) fixtures:

    Length: 1219 mm (48.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 6.4 kg (14.2 lbs.)

    Dynamic Effects Intensity: 0 - 100% Color temperature control: 2700 K - 6500 K
    Control and Programming Control systems: DMX, RDM User interface: Magnetic button to call up fixture status and test fixture Control resolution: 8-bit DMX control of each color DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20
    Optics Light source: 3 W Cree XP-E2 LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle: 120° Binning: Tight color and flux binning *Figure obtained under test conditions
    Photometric Data Exterior Linear 320 series Cove:

    Total luminous output: 846 lumens
    Warm white output: 299 lumens
    Cold white output: 491 lumens

    Exterior Linear 1220 series Cove:

    Total luminous output: 3384 lumens
    Warm white output: 1196 lumens
    Cold white output: 1964 lumens

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Aluminum Front: Clear polycarbonate Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
    0,7g RMS Random (IEC 60068-2-64)
    RoHS compliant
    Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
    Connections Power/data in/thru: 8-pin custom connectors
  • Electrical AC power: 100 -277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.) Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.) Typical half-cycle RMS inrush current: 0.3 A, 1220 models 0.7 A Surge protection: 4 KV

    Consult local regulations to determine maximum fixture runs

    Typical earth-leakage current: 4ft fixture: 0,50 mA, 1ft fixture: 0,15 mA
    Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 42 lm/W LWR*: 564 lm/kg (235 lm/lb)

    *LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM India: BIS
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
    Accessories Magnetic Test Tool, set of 10: P/N 91610139 Cables:

    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
    End Termination Cap for power + data link: P/N 91611766

    Optical:

    Exterior Linear 300 Series Glare Shield, set of 4: P/N 91611752
    Exterior Linear 1200 Series Glare Shield, set of 4: P/N 91611753

    Ordering Information Exterior Linear 320 CTC Cove: P/N 90356977 Exterior Linear 1220 CTC Cove: P/N 90356978
