Exterior Wash 200

Outdoor rated RGBW color mixing wash light

Exterior Wash 200
Larger Images

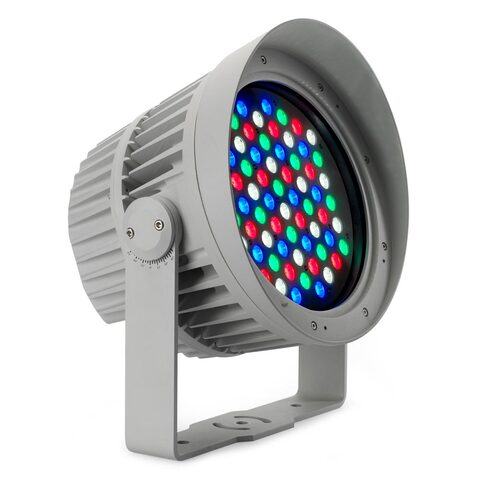

Exterior™ Wash 200 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate mid-sized structures and building facades. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 200 is designed for narrow beam applications and is based on separate LEDs for red, green, blue and white

Learn more about our product verification and reliability

  • Narrow beam configuration with 6 beam angle options
  • Functional and discreet optional snoot which integrates with the design of the fixtures
  • Control via DMX, RDM and OLED display

Features

  • Powerful single color R,G,B,W LEDs
  • Up to 6500 lumens at full white (RGBW)
  • Six different beam angle options
  • Internal power and control (DMX, RDM and OLED display)
  • Rugged IP66 housing
  • 0–100% intensity control

Specifications

  • Physical Length: 270 mm (10.7 in.) Width: 334 mm (13.2 in.) Height: 382 mm (15.1 in.) Weight: 13.0 kg (28.7 lbs.)
    Dynamic Effects Color mixing: RGBW Intensity: 0 - 100%
    Control and Programming Control systems: DMX, RDM Setting, addressing, standalone programming: Control panel with OLED display Stand-alone control: Up to 20 scenes with global fade/hold times DMX channels: 3-5 depending on DMX mode Receiver: RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Serial upload via DMX link
    Optics Light source: 16 x R, 18 x G, 16 x B, 18 x W single-color LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Beam Angle Options:

    No diffuser: 7.5°
    Narrow diffuser: 11.5°
    Medium diffuser: 25°
    Wide diffuser: 36°
    Very wide diffuser: 60°
    Asymmetric diffuser: 59° x 14.5°

    Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration *Figure obtained under manufacturer's test conditions
    Photometric Data CRI (Color Rendering Index) : > 70 CCT: 6500 K (White LED) Total luminous output: 6500 lumens*

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Cast aluminum Color: Light grey (white, black or other colors available on request) Ingress protection rating: IP66 Surface treatment: Anodized and electrostatic powder-coated Effective Projected Area (EPA): 0.1 m² including snoot Impact resistance: IK08 (with control panel display cover plate installed) Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
    0,7g RMS Random (IEC 60068-2-64)
    Installation Mounting: Adjustable yoke Orientation: Any Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
    Connections Power connection: 1.8 m (5.9 ft.) cable tail without connector Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail All cable entries: IP68 cable gland
  • Electrical AC power: 100 - 240 / 277 V nominal, 50/60 Hz Power Consumption: 3 W (steady state, all LEDs at zero intensity) Typical half-cycle RMS inrush current: 10.3 A Power supply unit: Integrated, auto-sensing multi-voltage Maximum total power consumption: 185 W Surge protection: 4 KV
    Typical Power and Current 100 V, 60 Hz: 1.6 A, 160 W, PF 0.99 120 V, 60 Hz: 1.35 A, 160 W, PF 0.99 230 V, 50 Hz: 0.75 A, 160 W, PF 0.94 277 V, 60 Hz: 0.65 A, 160 W, PF 0.89 Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F)** Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F) Total heat dissipation (calculated, +/- 10%): 485 BTU/hr

    *Above this temperature, the fixture regulates output to protect from overheating
    **Power must be maintained below -20° C (-4° F)

    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 41 lm/kg LWR*: 500 lm/kg (224 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1 EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C.22.2 No. 250 Australia/NZ: RCM India: BIS
    Included Items Cover plate for control panel
    Related Items Martin Companion Cable: P/N 91616091
    Accessories Exterior Wash 200 Series, narrow diffuser kit: P/N 91610154 Exterior Wash 200 Series, medium diffuser kit: P/N 91610153 Exterior Wash 200 Series, wide diffuser kit: P/N 91610152 Exterior Wash 200 Series, very wide diffuser kit: P/N 91610151 Exterior Wash 200 Series, asymmetric diffuser kit: P/N 91610150 Exterior Wash 200 Series, glare shield / snoot: P/N 91611745 Exterior Wash 200 Honeycomb Louvre: P/N 91611857
    Ordering Information Exterior Wash 200, 7°, EU, aluminum: P/N 90509087 Exterior Wash 200, 7°, US, aluminum: P/N 90509090
