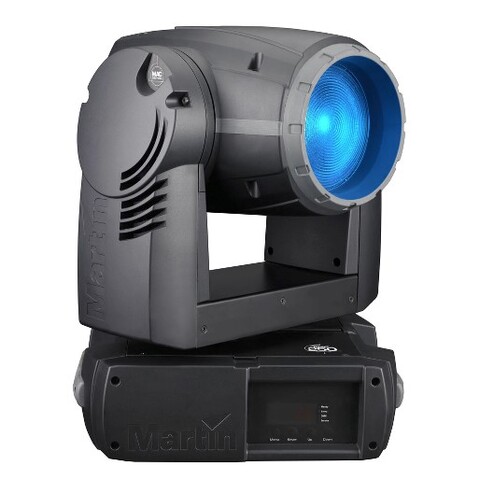

MAC 250 Wash (discontinued)

Larger Images

The MAC 250 Wash is a powerful yet compact and remarkably efficient wash light with extraordinarily fast and quiet movement, a variable frost filter for zoom effect and a CMY color mixing system with a complimenting color wheel.

Features

  • 250 W long life discharge lamp
  • Total output up to 7700 lumens
  • CMY color mixing system
  • 6 position color wheel plus open
  • Variable frost filter
  • Strobe effect up to 14 Hz, pulse effects, instant open and blackout
  • Fresnel (standard) super-wide lens (included)
  • Mechanical dimming
  • Pan and tilt range of 540°/257°
  • Tilt lock
  • Variable fan control for very quiet operation

Specifications

Physical Length: 375 mm Width: 315 mm Height: 538 mm, head straight up Weight: 22.9 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color wheel: 6 interchangeable filters (incl. UV transmitter and CTC) + open, indexing, continuous rotation Mechanical dimmer: 0 - 100% Shutter: Strobe effect up to 14 Hz, pulse effects, instant open and blackout Diffuser: Variable frost filter Pan: 540° Tilt: 257°
Control and Programming DMX channels: 13/19 Setting and addressing: Control panel with LED display 16-bit control: CMY, color wheel, dimmer, frost, pan and tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 250 W discharge Fitted as standard: Sylvania BA 250/2 Color temperature: 8000 K CRI (Color rendering index): >85 Average lifetime: 3000 hours Hot restrike: No Socket: GY 9.5 Ballast: Magnetic Approved alternative lamp(s): Osram HSD 250/80, GE CSD 250/2, Philips MSD 250/2
Optics Beam angle: Standard lens 19° (35° with frost effect), wide lens 53° (66° with frost effect), 1/10 peak angles
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Installation Mounting points: 2 pairs of 1/4-turn locks Orientation: Any
Connections AC power input: 3-pin IEC DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: User-reconfigurable voltage and frequency settings Main fuse: 6.3 AT (slow blow)
Typical Power and Current 100 V, 50 Hz: 319 W, 3.8 A, PF 0.83 100 V, 60 Hz: 317 W, 3.4 A, PF 0.93 120 V, 50 Hz: 320 W, 2.9 A, PF 0.91 120 V, 60 Hz: 314 W, 2.7 A, PF 0.96 208 V, 50 Hz: 320 W, 1.9 A, PF 0.81 208 V, 60 Hz: 319 W, 1.7 A, PF 0.92 230 V, 50 Hz: 323 W, 1.6 A, PF 0.89 230 V, 60 Hz: 326 W, 1.5 A, PF 0.95 250 V, 50 Hz: 326 W, 1.5 A, PF 0.89
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, at 40° C ambient: 160° C (320° F) Total heat dissipation (calculated, +/- 10%): 1120 BTU/hr.
Approvals EU EMC: EN 55 015, EN 55 103-1, EN 61 547 EU safety: EN 60598-1, EN 60598-2-17 US safety: ANSI/UL 1573 Canadian safety: CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Sylvania BA 250/2 lamp: Wide-angle diffuser lens: 41600053 3 m power cable, 3-pin IEC: 11501013 Two T-shaped Omega clamp attachment brackets with quarter-turn fasteners: 91602008 User manual: 35000164
Accessories Osram HSD 250/80 lamp: 97010116 MAC 250 Beam Kit: 91610101 DMX termination plug, 3-pin male XLR: 91613017 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Double flightcase for MAC 250 Krypton/Entour/Wash: 91510014
Spare Parts 6.3 AT main fuse: 05020020 Fuse F1 (6.3 AT): 05020020 Fuse F2 (2 AT): 05020009
Ordering Information MAC 250 Wash, white. in cardboard box: 90225830 MAC 250 Wash in cardboard box: 90225840 MAC 250 Wash in double flightcase: 90225841

Downloads

  Version Language Size Uploaded
Specifications
Descriptive specifications
en version C, updated: Oct 22, 2020
en  55.3 KB Oct 22, 2020
Photometric Data
en version A, updated: May 22, 2018
A   en    May 22, 2018
Manuals
Manuel d´utilisation
fr version A, updated: May 18, 2018
fr  653 KB May 18, 2018
Manual de instrucciones
es version A, updated: May 18, 2018
es  734 KB May 18, 2018
Bedienungsanleitung
de version F, updated: May 18, 2018
de  778 KB May 18, 2018
User manual
en version G, updated: May 18, 2018
en  783 KB May 18, 2018
Illustrations
Mac250 Wash_3D symbol_90° head
en version A, updated: Oct 22, 2020
en  5.82 MB Oct 22, 2020
Mac250 Wash_3D symbol_Straight head
en version A, updated: Oct 22, 2020
en  5.73 MB Oct 22, 2020
MAC250 Wash Dimensions (DXF)
en version A, updated: Oct 22, 2020
en  454 KB Oct 22, 2020
MAC250 Wash Dimensions PDF
en version A, updated: Oct 22, 2020
en  141 KB Oct 22, 2020
Compliances
EU Declaration of Conformity
es version A, updated: Oct 22, 2020
es  305 KB Oct 22, 2020
Service Procedures
Mac250 Wash - Maintenance Schedule (Level I)
en version 1.2.0, updated: Oct 22, 2020
1.2.0  en  22 KB Oct 22, 2020
Service Notes
PFC Capacitor Replacement
en version B, updated: Oct 22, 2020
en  733 KB Oct 22, 2020
CPFC Capacitor Replacement Recommendation
en version B, updated: May 22, 2018
B   en    May 22, 2018
DMX cables now optional accessories
en version A, updated: May 22, 2018
A   en    May 22, 2018
MAC 250 Beam Kit Installation Guide
en version G, updated: Oct 22, 2020
en  603 KB Oct 22, 2020
Guide d´installation MAC 250 Beam Kit
fr version C, updated: Oct 22, 2020
fr  1.1 MB Oct 22, 2020
Reflector Kit for MAC 250 Wash, MAC 250 Krypton
en version A, updated: May 11, 2018
en  106 KB May 11, 2018
Hints And Tips
Avoiding damage from sunlight and other light sources
en version B, updated: May 22, 2018
B   en    May 22, 2018
Discharge Lighting Shutdown Guidelines
en version A, updated: May 22, 2018
A   en    May 22, 2018
Electrical safety test equipment
en version B, updated: May 22, 2018
B   en    May 22, 2018
Firmware
MAC 250 Wash - Firmware
version 1.5.0, updated: Oct 15, 2020
1.5.0     Oct 15, 2020
