Mania SCX600
Larger Images

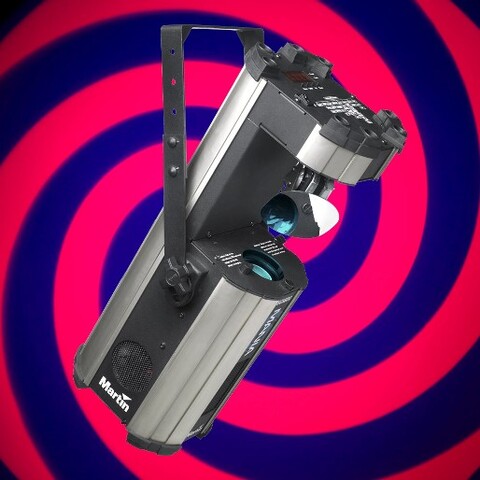

The Mania SCX600 is a powerful 250 W halogen scanner with the highest quality optical system for maximum light output and true high-definition image quality.

Features

  • 250 W halogen lamp
  • 1000 hour lamp included
  • 9 interchangeable colors plus open
  • 7 interchangeable rotating gobos plus open (2 glass 5 metal)
  • Separate shutter for strobe effect
  • High-speed mirror
  • Manual focus
  • DMX, stand alone (music or auto-trig) and host/client function
  • Continuous operation - no cool down time needed
  • 12 effect plus 12 pan/tilt pre-programmed macros for fast start-up
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 525 mm Width: 240 mm Height: 203 mm Height: 408 mm including bracket Weight: 12.3 kg including bracket
Dynamic Effects Color wheel: 9 interchangeable colors + open, full and split color selection Rotating gobo wheel: 7 interchangeable rotating gobos (5 metal, 2 coated glass), gobo selection, continuous rotation and shake Electronic dimming: 0 - 100% Shutter: Strobe effect, music trig, instant open and blackout Motorized mirror: 198° pan and 72° tilt
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 7/11 DMX address setting: Onboard control panel with 4-digit display Stand-alone trigger options: Music trig (selectable via control panel or via DMX), auto trig Stand-alone programming: Onboard control panel with 4-digit display Protocol: USITT DMX512/1990 Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 250 W, 24 V ELC halogen Approved lamps: Philips ELC 10H 250 W (1000 hrs.) Socket: G5.3
Optics Beam angle: 18.3° Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Gobos Outside diameter: 22.5 mm + 0/- 0.3 mm Maximum image diameter: 17 mm
Installation Mounting points: Adjustable bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket DMX data in/out: 3-pin locking XLR
Electrical AC power: Switch-selectable 110-120 V, 60 Hz / 220-240 V, 50 Hz Main fuse: 3.15 AT (slow blow)
Typical Power and Current 110 V, 60 Hz: 241 W, 2.2 A, PF 0.993 120 V, 60 Hz: 278 W, 2.3 A, PF 0.993 220 V, 50 Hz: 241 W, 1.1 A, PF 0.995 230 V, 50 Hz: 260 W, 1.2 A, PF 0.995 240 V, 50 Hz: 278 W, 1.2 A, PF 0.994 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 80° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 820 / 890 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 Canadian safety: CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Philips ELC 10H 250 W 1000 hour lamp: 97000111 Adjustable U-bracket: 55430322 5 mm Allen key: 50520615 5 m data cable, 3-pin XLR: 11820008 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 User manual: 35000169
Accessories G-clamp: 91602003 Half-coupler clamp: 91602005 DMX termination plug, 3-pin male XLR: 91613017 5-pin male XLR to 3-pin female XLR adaptor: 11820005 Safety cable, safe working load 50 kg: 91604003
Spare Parts Philips ELC 10H 250 W 1000 hour lamp: 97000111 3.15 AT main fuse: 05020013
Ordering Information Mania SCX600, US model, 110-120 V, 60 Hz: 90430083 Mania SCX600, EU model, 220-240 V, 50 Hz: 90430082
