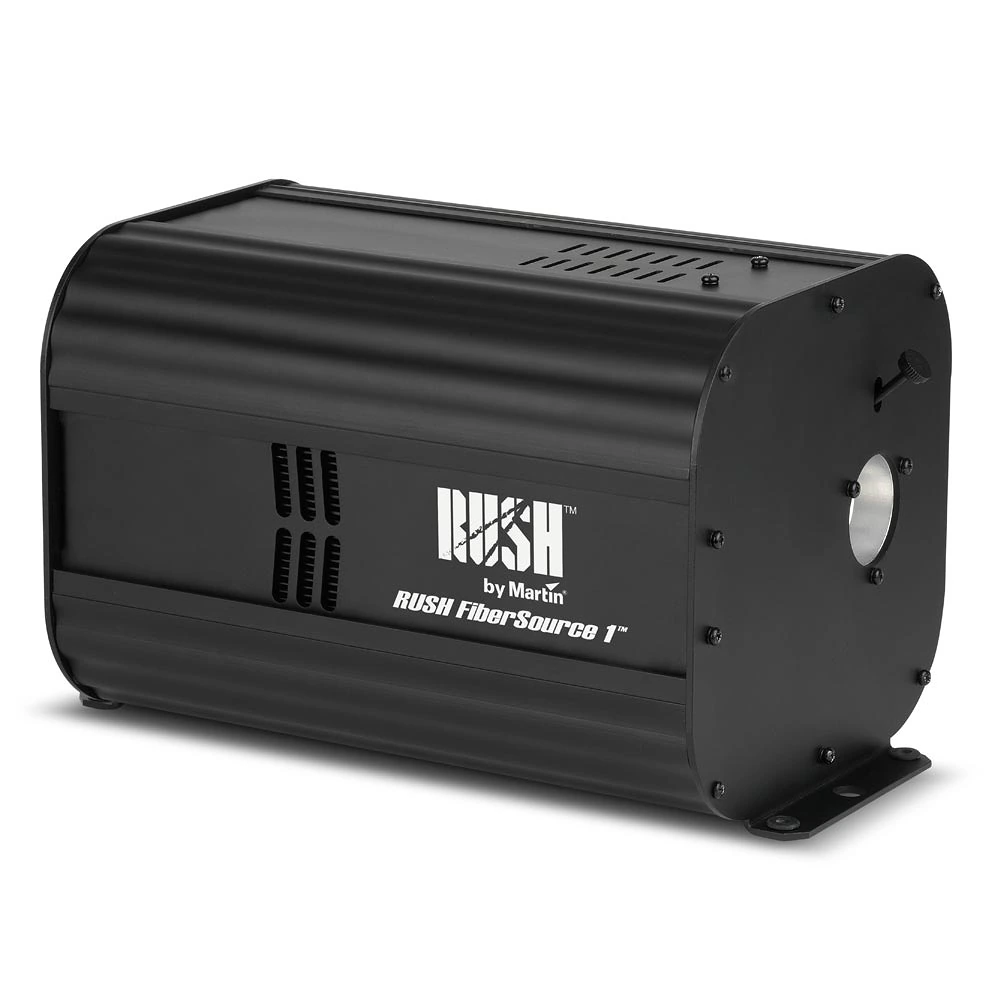

RUSH FiberSource 1

Larger Images

A highly anticipated update to the FiberSource QFX 150, the new RUSH FiberSource 1 is a powerful tool for illuminating fiber optic cables in permanent installations. With a new 78 W LED fiber projector, the RUSH FiberSource 1 boasts improved efficiency and reliability while retaining all the key features of its predecessor, such as nine interchangeable colors, a twinkle effects wheel, electronic dimming and DMX/stand-alone control.

  • 78 W LED fiber projector
  • 9 interchangeable colors
  • 0-100% electronic intensity control

Videos

RUSH FiberSource 1



Features

  • 78 W LED fiber projector
  • 9 interchangeable colors
  • 0-100% electronic intensity control
  • Twinkle effect wheel
  • DMX or stand-alone control
  • Up to 300 fiber cables (1 mm)

Specifications

  • Physical Height: 200 mm (7.9 in.) Length: 305 mm (12.0 in.) Weight: 7.6 kg (16.8 lbs.) Width: 210 mm (8.3 in.) Dynamic Effects Color wheel: 9 interchangeable filters + open, indexing, continuous rotation Twinkle effect: Continuous rotation, variable speed and direction Dimming: 0 - 100% continuous dimming Control and Programming Control options: DMX, standalone, master/slave DMX channels: 5 Standalone programming: DIP switch Settings and DMX addressing: DIP switch DMX compliance: USITT DMX512/1990 Optics Light source: CREE 78 W LED CRI (Color Rendering Index): >70 Color temperature: 6000–7000 K Minimum LED lifetime: 35,000 hours (to >70% luminous output)* *Figure obtained under test conditions. Construction Housing: Steel and aluminum Color: Black (RAL 9005) Protection rating: IP20 Installation Minimum clearance around fan and air vents: 0.1 m (4.0 in.) Mounting points: Four rubber-mounting grommets, two Ø13 mm holes for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (7.9 in.) Connections AC power input/output: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical Power and Current 110 V, 60 Hz: 0.8 A, 87 W, PF 0.986 230 V, 50 Hz: 0.5 A, 86 W, PF 0.909 Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Thermal Cooling: Forced air (regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 50° C (122° F) Approvals EU safety: EN 60598-2-1 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61547 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: C-TICK N4241 Included Items Power cable, 1.5 m (4.9 ft.), without mains plug:

    Color filter M05, blue 108L w. adaptor
    Color filter M05, yellow 603L w. adaptor
    Color filter M05, green 206L w. adaptor
    Color filter M05, red 308L w. adaptor

    Accessories Cables, 16 A, for connection to power in chains:

    Power input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508
    Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11541509
    Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11541510
    Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.): P/N 11541511

    Filters:

    Color filter M05, green 202L w. adaptor: P/N 62327931
    Color filter M05, blue 111L w. adaptor: P/N 62327928
    Color filter M05, blue 101L w. adaptor: P/N 62327929
    Color filter M05, cyan 401L w. adaptor: P/N 62327930
    Color filter M05, yellow 604L w. adaptor: P/N 62327932
    Color filter M05, red 301L w. adaptor: P/N 62327933
    Color filter M05, pink 312L w. adaptor: P/N 62327934
    Color filter M05, purple 502L w. adaptor: P/N 62327936
    Color filter M05, green 204L w. adaptor: P/N 62327937
    Color filter M05, orange 306L w. adaptor: P/N 62327938

    Power connectors:

    Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
    Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805

    Installation hardware:

    Half-coupler clamp: P/N 91602005
    G-clamp (vertical suspension only): P/N 91602003
    Quick-trigger clamp (vertical suspension only): P/N 91602007

    Ordering Information RUSH FiberSource 1™ in cardboard box: P/N 90280070

Downloads

  Version Language Size Uploaded
Manuals
RUSH FiberSource 1 - Manuel d'Utilisation fr  1.1 MB Dec 03, 2015
RUSH FiberSource 1 - User Manual en  1.13 MB Sep 21, 2015
RUSH FiberSource 1 - Bedienungsanleitung de  1.46 MB Dec 03, 2015
Illustrations
RUSH FiberSource 1 - 2D (PDF) en  657 KB Aug 14, 2015
RUSH FiberSource 1 - 2D (DWG) en  621 KB Aug 14, 2015
3D Symbols
Vectorworks Symbols 2.6  en  66.4 MB May 01, 2019
Compliances
RUSH FiberSource 1 - ETL Listing Verification en  387 KB Jun 16, 2015
RUSH FiberSource 1 - EU Declaration of Conformity en  45.1 KB Jun 16, 2015
Software
RUSH FiberSource - Software 1.1  en  133 KB Nov 11, 2015
RUSH Uploader DMX - Tool 1.1  en  1.18 MB Oct 08, 2015
Service Notes
3DPartsfinder Using Solid Works Composer Player     Sep 22, 2017
3DPartsfinder using Solid Works Composer player en    Mar 04, 2016
Tech Notes
Avoiding damage from sunlight and other light sources     Sep 22, 2017
Hints And Tips
Avoiding damage from sunlight and other light sources en    Dec 09, 2012
