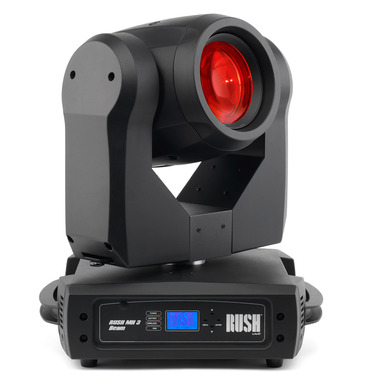

RUSH MH 3 Beam (discontinued)

Larger Images

The RUSH MH 3 Beam is a powerful beam moving head that blasts an intense and narrow long-throw beam for spectacular mid-air looks and effects. It houses a fixed gobo wheel and color wheel with a multitude of effects possible from a dimmer, strobe effect, 8-facet prism and focus.

Features

  • Powerful beam moving head
  • Sharp, narrow long-throw beam
  • Mid-air effects
  • Fixed gobo wheel
  • Color wheel
  • Mechanical dimming and strobe
  • Frost effect
  • 8-facet prism
  • Motorized focus
  • 3 & 5 pin XLR

Specifications

PhysicalLength: 418 mm (16.5 in.)Width: 321 mm (12.7 in.)Height: 489 mm (19.3 in.)Weight: 20.5 kg (45.2 lbs.)
Dynamic EffectsColor wheel: 14 colors plus open, rotation with variable direction and speedStatic gobo wheel: 17 gobos plus open, wheel rotation and shakePre-programmed effects: 31 pan and tilt macros, adjustable speedShutter: Strobe effect, pulse effects, instant open and blackoutPrism: 8-facet, indexing and rotation with variable direction and speedFrost: Fade in/outZoom: MotorizedFocus: MotorizedDimmer: 0 - 100%, four dimming curve optionsPan: 540°Tilt: 220°Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and ProgrammingControl: DMXDMX channels: 19Setting and addressing: Control panel with LCD displayDMX compliance: USITT DMX512/1990
LampApproved lamp: Philips MSD Platinum 5RColor temperature: 8000 KCRI (Color rendering index): 75Average lifetime: 2000 hours
OpticsZoom range: 1° - 3.8°
ConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20
InstallationMinimum distance to illuminated surfaces: 12 m (39 ft. 5 in.)Mounting points: Two quarter-turn brackets for rigging clampsLocation: Indoor use only, must be fastened to surface or structureOrientation: Any
ConnectionsAC power input: Neutrik PowerConDMX data in/out: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 350 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.
Typical Power and Current110 V, 60 Hz: 3.1 A, 348 W, PF 0.990230 V, 50 Hz: 1.6 A, 330 W, PF.0.917Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 1200 BTU/hr.
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety (pending): CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241

Included ItemsPower cable, 1.5 m, without mains plugMounting brackets
Related ItemsRUSH™ Software Uploader 1: P/N 91611399
Ordering InformationRUSH MH 3 Beam™ in cardboard box: P/N 90280010
