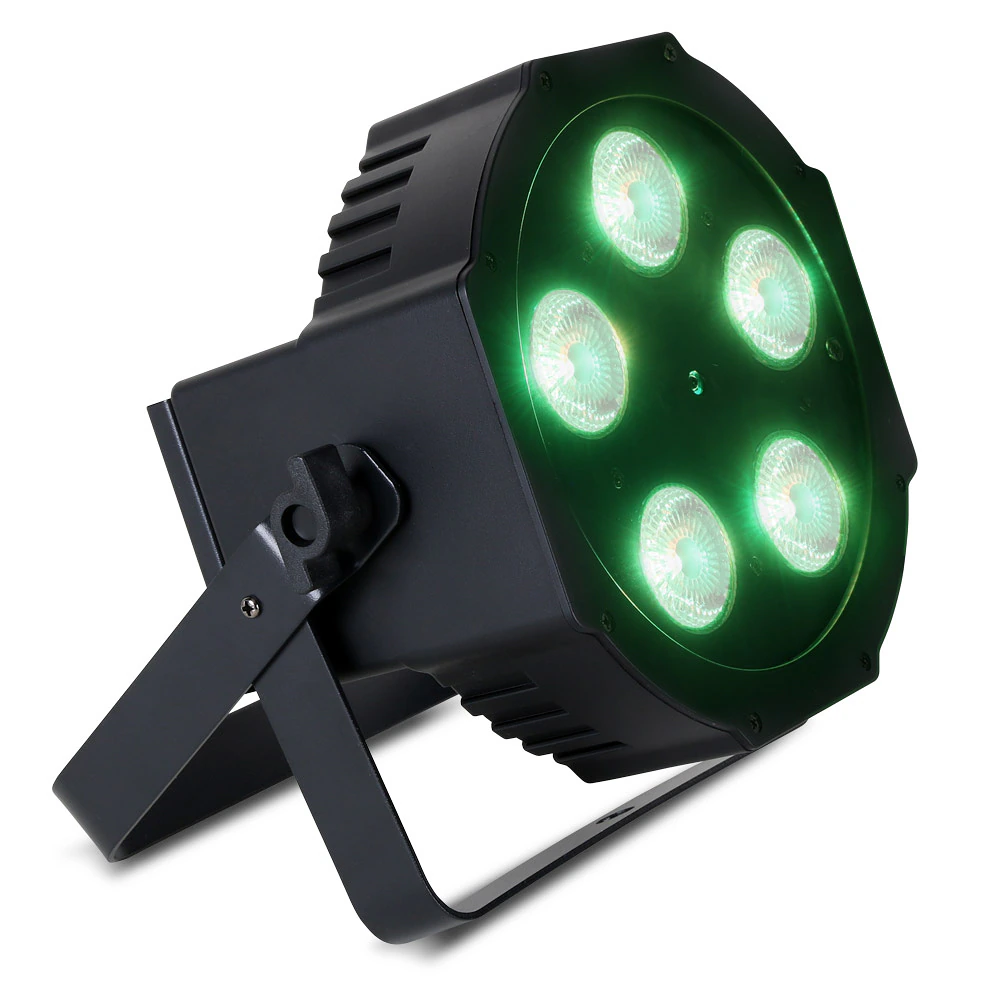

Martin THRILL Compact PAR 64 LED

Larger Images

THRILL Compact PAR 64 LED is a bright and powerful LED PAR can that washes your party or event with full, intense and saturated colors. Five 12-watt bright RGB, white, amber and UV LEDs give a uniform field of light that is perfect for warm wall washes, truss toning and front or back lighting. The sit-flat design makes the light easy to slide under tables, tuck inside a truss or into any tight spot.

The THRILL Compact PAR 64 LED features 36 vibrant pre-programmed colors, full RGBWA+UV color mixing so any color in the spectrum can be created and electronic strobe/dimming that make the THRILL Compact PAR 64 LED the safe all-around choice that takes your event from great to brilliant. An included wireless remote control makes programming a breeze, simply point and click to get the color you want or run the pre-programmed settings.

Its lightweight design, super compact profile and wireless remote control make it the perfect fit for on-the-go entertainers, DJs, venues and home enthusiasts that require professional lighting at an affordable price.

Portable, lightweight and easy to control
Sit-flat design allows versatile fixture placement
Plug-and-play functionality with easy-to-use remote control

LET THE MUSIC DO THE TALKING

THRILL Compact PAR 64 LED is a perfect fit for musicians, DJs, event specialists and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Compact PAR 64 LED features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has four professionally programmed, preset shows that can be run with no lighting experience required.
ADDED COLORS AMBER & UV

Not all lights are created equal. With the THRILL Compact PAR 64 LED we decided to up the ante by offering additional LED emitters so that you can be more creative. We have added amber and UV LEDs that truly punch. The amber LEDs spread a nice warm front light for illuminating your presenters or band members, while the UV filter ensures that the party can keep glowing all night.
PORTABLE AND LIGHTWEIGHT

Its portable and lightweight design and included remote, makes THRILL Compact PAR 64 LED ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.
LOW-PROFILE, SIT-FLAT DESIGN

Featuring a sit-flat design, the THRILL Compact PAR 64 LED can sit perfectly flat on the ground with its cabling directed to the sides. This gives you the freedom to fit the fixture into tighter spaces, such as underneath tables or for uplighting purposes to illuminate structures at 90 degrees with little hassle.
SETUP IS A BREEZE

With the THRILL Compact PAR 64 LED, setup has never been easier. Layout up to 32 fixtures in a master/client configuration and quickly daisy chain their power and data connections together. For added flexibility, Compact PAR 64 LED can be used as either a hanging fixture or a floor-standing light via the included multi-function hanging bracket.
CONTROL AT HAND

Control is easy too. The included IR remote control gives you the freedom to simply assign colors to the fixture or you can run the automated lightshows mentioned above. The fixtures can also be used as part of a complete DMX system with an integrated controller such as a Martin M-Touch and free M-PC control software. It’s easy to add warmth and washes of light to your live experience with the THRILL Compact PAR 64 LED.

LET THE MUSIC DO THE TALKING

THRILL Compact PAR 64 LED is a perfect fit for musicians, DJs, event specialists and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Compact PAR 64 LED features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has four professionally programmed, preset shows that can be run with no lighting experience required.

ADDED COLORS AMBER & UV

Not all lights are created equal. With the THRILL Compact PAR 64 LED we decided to up the ante by offering additional LED emitters so that you can be more creative. We have added amber and UV LEDs that truly punch. The amber LEDs spread a nice warm front light for illuminating your presenters or band members, while the UV filter ensures that the party can keep glowing all night.

PORTABLE AND LIGHTWEIGHT

Its portable and lightweight design and included remote, makes THRILL Compact PAR 64 LED ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

LOW-PROFILE, SIT-FLAT DESIGN

Featuring a sit-flat design, the THRILL Compact PAR 64 LED can sit perfectly flat on the ground with its cabling directed to the sides. This gives you the freedom to fit the fixture into tighter spaces, such as underneath tables or for uplighting purposes to illuminate structures at 90 degrees with little hassle.

SETUP IS A BREEZE

With the THRILL Compact PAR 64 LED, setup has never been easier. Layout up to 32 fixtures in a master/client configuration and quickly daisy chain their power and data connections together. For added flexibility, Compact PAR 64 LED can be used as either a hanging fixture or a floor-standing light via the included multi-function hanging bracket.

CONTROL AT HAND

Control is easy too. The included IR remote control gives you the freedom to simply assign colors to the fixture or you can run the automated lightshows mentioned above. The fixtures can also be used as part of a complete DMX system with an integrated controller such as a Martin M-Touch and free M-PC control software. It’s easy to add warmth and washes of light to your live experience with the THRILL Compact PAR 64 LED.

Videos

Features

Uniform field of light via 5 x 12 W RGBWA + UV LEDs
Fixed 18° beam angle
36 vibrant pre-programmed colors
Dynamic effects include color mixing, strobe, dimmer
Remote control included for quick color selection
Easy to operate standalone sound-activated, master/client control methods
4 professionally pre-programmed shows
DMX operable for individualized control and design
Included multi-function bracket for hanging or surface mount
Common IEC mains inlet/thru – mains cable included

Specifications

PhysicalLength: 262 mm (10.3 in.)Width: 127 mm (5 in.)Height: 266 mm (10.4 in.)Maximum standing footprint: 266 mm (10.4 in) x 204 mm (8 in.)Weight: 2.1 kg (4.3 lb.)

Dynamic EffectsColor mixing: RGBWAUVColor selection: 36 color presetsElectronic dimming: 0-100%Strobe and pulse effects: Variable speed and action, random strobeElectronic 'shutter' effect: Instant open and blackout

Control and ProgrammingControl options: DMX, stand-alone, IR remote controlDMX channels: 6/9Stand-alone trigger options: Sound-trigger, auto-runUser interface: Control panel with LED displayDMX compliance: ANSI E1.11 - USITT DMX512-A

OpticsLight source: 5 x 12 W RGBWAUV LEDsMinimum LED lifetime: 30 000 hours (to >70% luminous output)*Beam angle: 18°*Figure obtained under manufacturer's test conditions

ConstructionHousing: High-impact flame-retardant thermoplasticColor: BlackIngress protection: IP 20

InstallationMounting: Adjustable bracket, surface or truss mountMounting points: Bracket for single rigging clamp, M12 or ½”Orientation: AnyLocation: Dry locations only

ConnectionsAC power in/thru: IEC male inlet/female connector, C14/C13DMX data in/thru: 3-pin XLR

ElectricalAC power: 100-240 V nominal, 50/60 HzFuse: F 3 AL, 250 VTypical total power consumption: 50 WMaximum number of fixtures on AC power throughput, 100-130 V: 6 x THRILL Compact PAR 64 LED or 3 AMaximum number of fixtures on AC power throughput, 220-240 V: 10 x THRILL Compact PAR 64 LED or 3 APower consumption figures are typical, not maximum. Allow for +/-10% variation.

Typical Power and Current110 V, 60 Hz: 0.5 A, 50 W *230 V, 50 Hz: 0.3 A, 50W **Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

ThermalCooling: Forced air, temperature-regulatedMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%) at full intensity, full white: 170 BTU/hr.

ApprovalsEU safety: EN 60598, EN 60598-2-17, EN 62471, EN 62493EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547US EMC (pending): CFR Title 47 Part 15 Class ACanadian EMC (pending): ICES-003 Class AAustralia/NZ (pending): RCM

Included ItemsPower cable, EU, IEC C13 female, molded Schuko, 1.5 m (4.9 ft.)Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.5 m (4.9 ft.)Multi-function bracket and hardwareIR remote control, grey, 16-buttonBattery for remote control, 3 V, CR2025 lithium

AccessoriesSuper lightweight half-coupler, black: P/N 91602018Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006

Related ItemsMartin^® M-Touch: P/N 90737040Martin^® M-Play: P/N 90737030

Ordering InformationTHRILL Compact PAR 64 LED: P/N 90280116

Downloads

	Version	Language	Size	Uploaded
Specifications
THRILL Compact PAR 64 LED Spec Sheet-English updated: Jul 2020			1.35 MB	Jul 2020
Manuals
THRILL Compact PAR 64 LED - Sicherheits- und Installationsleitfaden version B, updated: Oct 2020	B		276 KB	Oct 2020
THRILL Compact PAR 64 LED - Manuale dell’utente version B, updated: Oct 2020	B		465 KB	Oct 2020
THRILL Compact PAR 64 LED - Guide de l’utilisateur version B, updated: Oct 2020	B		431 KB	Oct 2020
THRILL Compact PAR 64 LED - Guía de usuario version B, updated: Oct 2020	B		322 KB	Oct 2020
THRILL Compact PAR 64 LED - User Guide version B, updated: Oct 2020	B		216 KB	Oct 2020
THRILL Compact PAR 64 LED - Benutzerhandbuch version B, updated: Oct 2020	B		454 KB	Oct 2020
THRILL Compact PAR 64 LED - Manuale sulla sicurezza e di installazione version B, updated: Oct 2020	B		273 KB	Oct 2020
THRILL Compact PAR 64 LED - Guide d’installation et de sécurité version B, updated: Oct 2020	B		277 KB	Oct 2020
THRILL Compact PAR 64 LED - Guía de instalación y seguridad version B, updated: Oct 2020	B		261 KB	Oct 2020
THRILL Compact PAR 64 LED - Safety and Installation Guide version B, updated: Oct 2020	B		261 KB	Oct 2020
Compliances
EC Declaration of Conformity (DoC) THRILL Compact PAR 64 LED updated: Oct 2020			208 KB	Oct 2020
