Wizard Extreme (discontinued)

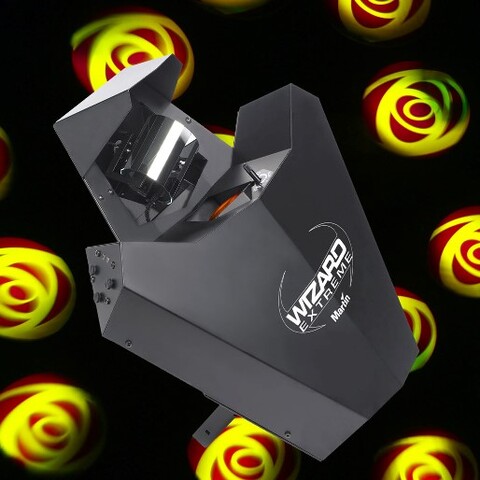

Wizard Extreme
Larger Images

The Wizard Extreme is a 250 W discharge light with rapid movement, over 80 color and gobo beams and a shutter for rapid strobe effects.

Features

  • 250 W discharge lamp
  • Long lamp life (3000 hrs)
  • 7 interchangeable colors plus 2 open positions and twinkle effect
  • Separate shutter for strobe effect
  • Rotating and swiveling mirror drum
  • Manual focus
  • DMX, stand alone (music or auto-trig) and host/client function
  • Continuous operation - no cool down time needed
  • 12 pre-programmed macros for fast start-up
  • 13 gobos plus open (3 with dichroic reflectors)
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 552 mm Width: 516 mm Height: 208 mm Weight: 14.5 kg
Dynamic Effects Motorized rotating parabolic mirror dish: Color wheel: 8 colors + open, full and split color selection, twinkle and shake effects Color/gobo wheel: 12 gobos + open, stepped scroll to full positions or continuous rotation, shake effect Dimmer: 0 - 100% Shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Motorized mirror drum: 180° pan (swivel) and 360° tilt (continuous rotation)
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 1/8/11 Macro programs selectable via DMX: 12 Stand-alone trigger options: Music trig, auto trig (both selectable via DIP siwtch or via DMX) DMX address setting: DIP switch Stand-alone programming: DIP switch Protocol: USITT DMX512/1990 Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 250 W discharge Fitted as standard: Osram HSD 250/80 Color temperature: 8000 K Average lifetime: 3000 hours Socket: G5.3 Approved alternative lamp(s): Philips MSD 250/2, Osram HSD 250/60, Philips MSD 200
Optics Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum Color(s): Black Protection rating: IP20
Installation Mounting points: Adjustable bracket, floor stand (accessory) multi-coupler bracket (accessory) Orientation: Any
Connections AC power input: 3-pin IEC male socket DMX data in/out: 3-pin locking XLR
Electrical AC power: User-reconfigurable 100-130/200-240 V nominal, 50/60 Hz (US model) 220-240 V nominal, 50 Hz (EU model) Main fuse: 6.3 AT (US model). 3.15 AT (EU model)
Typical Power and Current 100 V, 50 Hz: 320 W, 3.8 A 100 V, 60 Hz: 310 W, 3.4 A 120 V, 60 Hz: 310 W, 2.7 A 230 V, 50 Hz: 320 W, 1.5 A 250 V, 50 Hz: 310 W, 1.4 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 80° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 1060 / 1090 BTU/hr.
Approvals EU safety: EN 60598-2-17 EU EMC: EN 55103-1, EN 55103-2 US safety: ANSI/UL 1573 Canadian safety: CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Osram HSD 250/80 lamp: 97010116 Mounting bracket: 5 m data cable, 3-pin XLR: 11820008 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 User manual: 35000155
Accessories Philips MSD 250/2 lamp: 97010100 Wizard multi-coupler bracket: 91606010 Wizard floor stand: 91606008 G-clamp: 91602003 Half-coupler clamp: 91602005 DMX termination plug, 3-pin male XLR: 91613017 5-pin male XLR to 3-pin female XLR adaptor: 11820005 Safety cable, safe working load 50 kg: 91604003
Spare Parts Osram HSD 250/80 lamp: 97010116 6.3 AT main fuse: 05020020 3.15 AT main fuse: 05020013
Ordering Information Wizard Extreme, US model: 90426500 Wizard Extreme, EU model: 90426400
