Exterior 1200 Wash
Larger Images

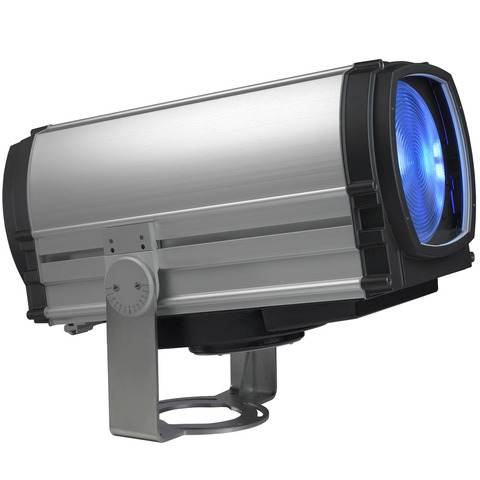

The Exterior 1200 Wash is a powerful 1200 W luminaire designed for spectacular illumination of high-rise structures, bridges and landmark architecture.

Features

  • 1200 W metal halide lamp
  • CMY color mixing system
  • Dynamic zoom for variable beam angles: 8°- 16° / 12°- 26°
  • Choice of optical systems: narrow, medium, wide or very wide
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • DMX, stand-alone, synchronized (host/client)
  • On-board address setting: no extra devices required
  • Weatherproof rating: IP65

Specifications

PhysicalLength: 860 mmWidth: 448 mmHeight: 620 mmWeight: 68 kgEffective Projected Area (EPA): 0.6 m2
Dynamic EffectsColor mixing: CMYCyan: 0 - 100%Magenta: 0 - 100%Yellow: 0 - 100%Color wheel: Red, green, blue, CTC (as standard) + open positionsDimmer: 0 - 100%Zoom: 8°- 16° / 12°- 26°
Control and ProgrammingControl options: DMX, stand-alone, synchronized (host/client)DMX channels: 8Stand-alone trigger options: Internal timer and/or ambient light levelStand-alone memory: 20 scenesDMX address setting: MUM, onboard control panelStand-alone programming: MUM, onboard control panelProtocol: USITT DMX512-AReceiver: RS-485
LampType: 1200 W metal halideFitted as standard: Philips MSD 1200Socket: G22Control: Automatic and/or remote on/off
ConstructionHousing: AluminumFinish: Clear anodizedFront glass: 6 mm anti-reflection coatedProtection rating: UL wet location, main enclosure designed to IP65
InstallationOrientation: Any (air intake must face down)Vertical aiming: +/- 90°
ConnectionsPower cable entry: IP68 cable glandPower connection: Quick connectorsData cable entry: IP68 cable glandData connection: RJ-45 sockets, screw terminal/quick connectors
ElectricalAC power: 200/208/220/230/240/250/277 V nominal, 50/60 HzMain fuse: 17.5 AT (slow blow)Ballast: MagneticStandby power: 18 W at 230 V
Typical Power and Current200 V, 50 Hz: 1380 W, 7.0 A, PF 0.975200 V, 60 Hz: 1405 W, 7.3 A, PF 0.960208 V, 60 Hz: 1417 W, 7.1 A, PF 0.958220 V, 50 Hz: 1373 W, 6.4 A, PF 0.973230 V, 50 Hz: 1365 W, 6.1 A, PF 0.973240 V, 50 Hz: 1370 W, 5.9 A, PF 0.973250 V, 50 Hz: 1364 W, 5.6 A, PF 0.972277 V, 60 Hz: 1417 W, 5.4 A, PF 0.956Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
ThermalMaximum ambient temperature (Ta max.): 45° CMinimum ambient temperature (Ta min.): -20° C, power must be maintained below 0° CMaximum surface temperature, steady state, Ta=45° C:70° CTotal heat dissipation (calculated, +/- 10%): 4950 BTU/hr.Cooling: Forced air, integrated air/air heat exchanger, IP65 barrier
ApprovalsUS safety: UL 1598Canadian safety: CSA C22.2 No. 250.0-04EU safety: EN 60598-1, EN 61347-1EU EMC: EN 55 015, EN 55 103-1, EN 61 000-3

Included ItemsPhilips MSD 1200 lamp: 97010313Two M16 x 1.5 IP68 cable glands, metal, cable Ø 5.5 mm - 10 mm: 13102031One M20 x 1.5 IP68 cable gland, metal, cable Ø 8 mm - 13 mm: 13102090Four M16 cable entry blanking plugs (installed), metal:13102050Two M20 blanking plugs (installed), metal: 13103030Two main fuses, 17.5 AT (installed): 05020045Main PCB fuse, 10 AT (installed): 05020025User manual:
AccessoriesBeamshaper lens: 91610081Narrow-angle lens kit: 91610088Medium-angle lens kit: 91610089Wide-angle lens kit: 91610090Very wide-angle lens kit: 91610091Permanent CTC kit: 91611258Snoot/barndoor kit: 91611257Dichroic color filters (install in color wheel):
Related ItemsMartin DABS1™ USB interface box incl. cables: 90758090
Spare PartsPhilips MSD 1200 lamp: 9701031317.5 AT main fuse: 0502004515 AT main PCB fuse: 05020039Silicone seal for front cover, Exterior 1200 IP & Wash:20600550Silicone seal for rear cover, Exterior 1200 IP & Wash:20600560Silicone seal for wiring box, Exterior 1200 IP & Wash:20620150Silicone seal for LCD display cover, Exterior 1200 IP & Wash: 20620160
Ordering InformationExterior 1200 Wash, Narrow: 90504010Exterior 1200 Wash, Medium: 90504020Exterior 1200 Wash, Wide: 90504030Exterior 1200 Wash, Very Wide: 90504040
