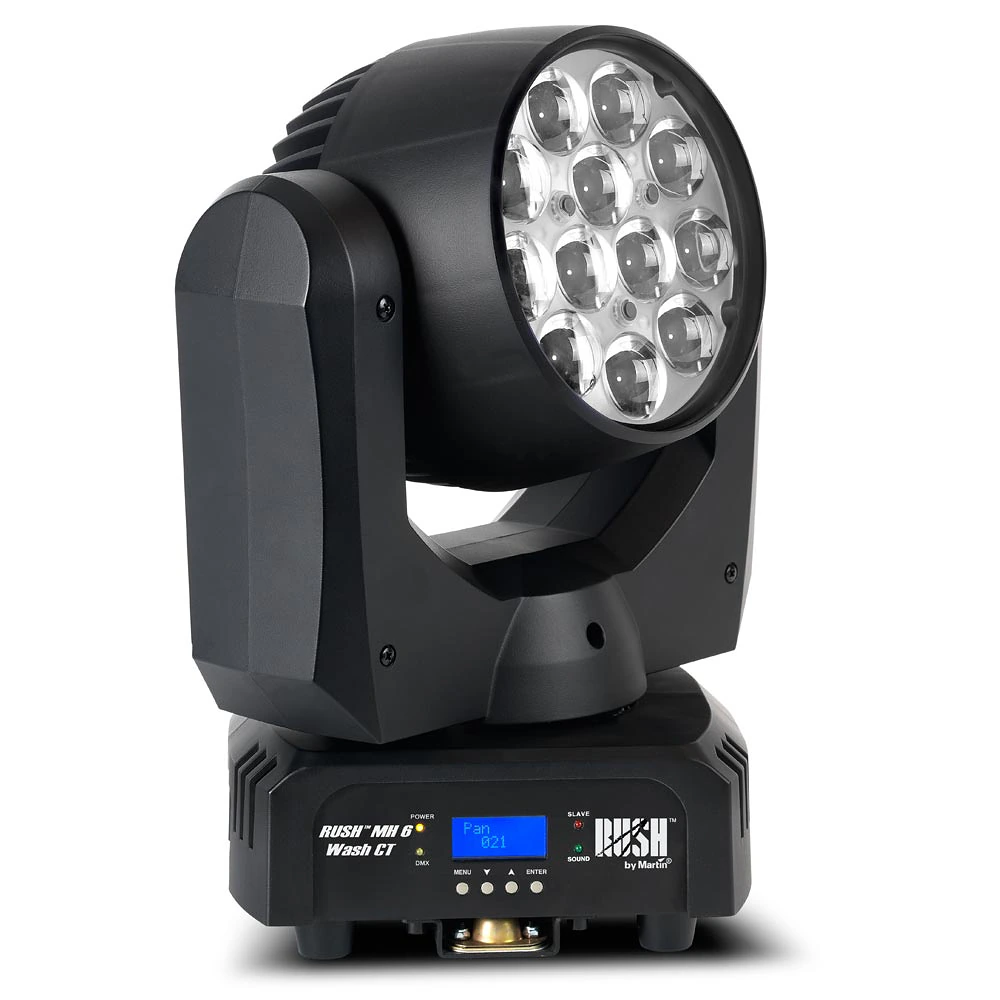

Martin RUSH MH 6 Wash CT

Større billeder

RUSH MH 6 Wash CT er designet til nøglelysapplikationer inden for House of Worship, Performing Arts og Live Stage-miljøer, hvor farvtemperaturkontrol af hvidt lys er kritisk, men hvor et kompakt og lettvægtigt design også er ønskeligt til mindre applikationer

RUSH MH 6 WASH CT er en lys single-lens LED-moving head med fuldt forhåndsblandet hvide farvetemperaturer. Med tolv 10W WW/CW (varmhvidt og koldhvidt) LED'er og et 10° til 60° motoriseret zoom tilbyder det fuld elektronisk dæmpning og variable stroboskopeffekter styret via DMX.

Forhåndsblandet hvidt lys fra 2.700K til 7.800K
10-60 graders zoomsystem
Kompakt og lettvægtig design

Funktioner

2.700K til 7.800K farvetemperaturområde
Muliggør matching af nøgtelys for flere kilder fra wolfram til metalhalogenid
10-60 graders zoomsystem
Kompakt og letvægts design
Kan bruges som midteffekt med stramt strålebillede til scenevask til nøgtelysapplikationer
Ideel til applikationer med begrænset loftshøjde eller vægtbegrænsninger.

Specifikationer

Physical Length: 290 mm (11.4 in.) Width: 189 mm (7.4 in.) Height: 360 mm (14.2 in.) Weight: 7.1 kg (15.7 lbs.)

Dynamic Effects Zoom: Motorized Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout Pan: 540° Tilt: 200°

Control and Programming Control options: DMX 16-bit fine control: Dimming, pan and tilt DMX address setting: Control panel with LCD display DMX channels: 14 DMX compliance: USITT DMX512/1990

Optics Zoom range: 10° - 60° Light source: 12 x 10W OSRAM OSTAR WW/CW LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Figure obtained under manufacturer's test conditions.

Construction Housing: High-impact flame-retardant thermoplastic Color: Black Ingress protection rating: IP20

Installation Mounting points: One quarter‐turn bracket for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm (4 in.) Minimum distance to illuminated surfaces: 200 mm (8 in.) Minimum clearance around fan and air vents: 100 mm (4 in.)

Connections AC power in, thru: Neutrik PowerCon DMX data in, thru: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Fuse: T 3.15 A Typical half-cycle RMS inrush current: 11.3 A (at 240 VAC) Recommended Miniature Circuit Breaker: Type D*
*Per IEC 60898/UL489/CSA C22.2 No. 5
Power consumption figures are typical, not maximum. Allow for +/-10% variation.

Typical Power and Current 120 V, 60 Hz: 1.3 A, 150 W, PF 0.99 230 V, 50 Hz: 0.7 A, 150 W, PF 0.94 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)

Approvals EU safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573, UL 8750 US EMC: CFR Title 47 Part 15 Canadian safety: CSA C22.2 No. 166 Australia/NZ: C-TICK N4241 / RCM

Included Items
Power input cable, 6 A, 18 AWG, UL, 0.75 mm2, H05VV-F, 1.5 m (4.9 ft.), without mains plug
Omega bracket for rigging clamp attachment

Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com

Accessories Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Cables, 16 A, for relaying power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information RUSH MH 6 Wash™ CT in cardboard box: P/N 90280090
