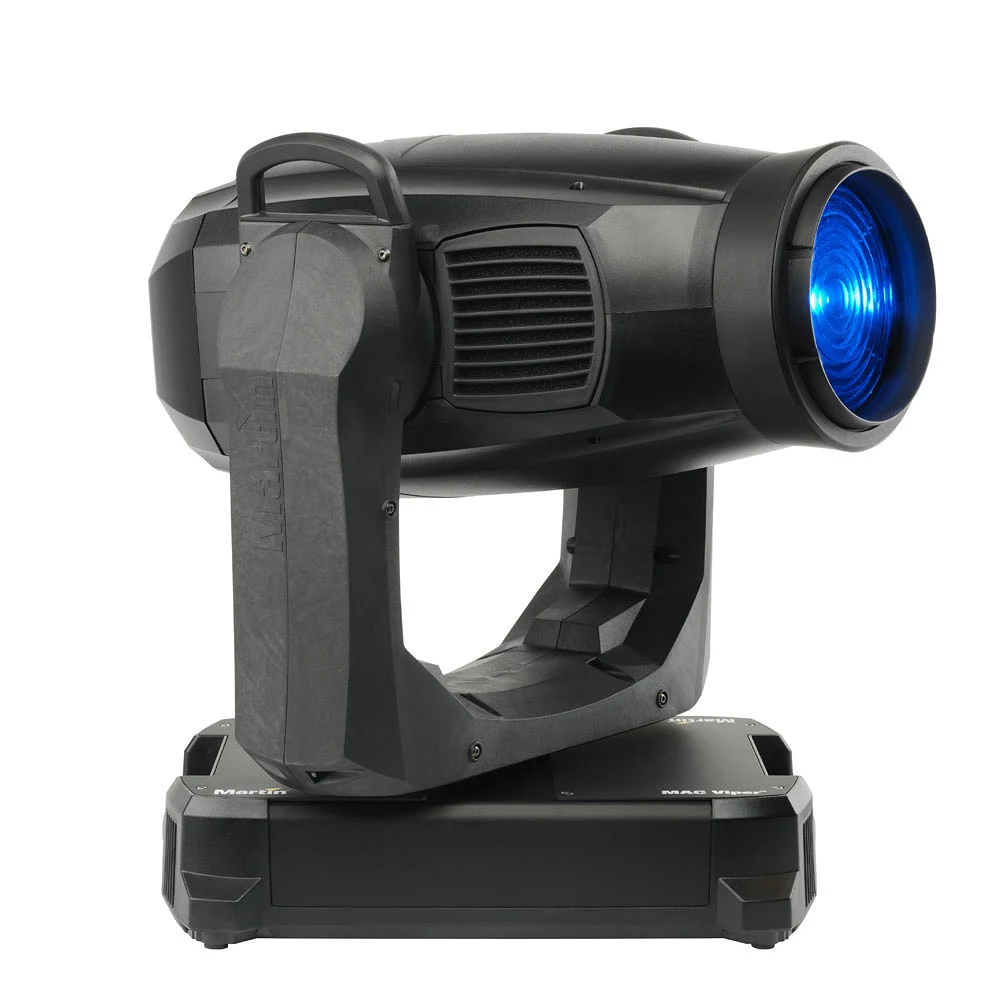

MAC Viper Wash DX

High output discharge-based wash luminaire with CMY color mixing and internal barndoors

MAC Viper Wash DX
Larger Images

The MAC Viper Wash DX is a full-feature, full-range wash luminaire with a unique internal barndoor system (shutters) that enables designers to shape and control light projection onto stages, performers, scenery, scrims or any set element with great precision. The fixture’s internal framing system makes it a highly capable, automated substitute for a conventional daylight Fresnel fixture.

The MAC Viper Wash DX features an outstanding quality of light with unlimited color choices and maintains near full efficiency throughout its entire zoom range with no visible beam jump when zooming from tight to wide. The fixture has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000-watt lamp.

  • 33000 Lumens – Excellent light quality with a uniform field and 6000K color temperature
  • 1:5 zoom - Continuous and fast
  • Internal barndoor system – 1 pair of indexing shutters

Features

  • 33000 Lumens – Excellent light quality with a uniform field and 6000K color temperature
  • 1:5 zoom - Continuous and fast
  • Internal barndoor system – 1 pair of indexing shutters
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 7-slot color wheel – Static colors and correction filters for added color choice and bump effects
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects, complementing the barndoor system
  • Diverse strobe effects

Specifications

  • Physical Length: 472 mm (18.6 in.) base 566 mm (22.3 in.) head Width: 473 mm (18.6 in.) 335 mm (13.2 in.) base Height: 732 mm (28.8 in.) head straight up 749 mm (29.5 in.) maximum Weight: 34.1 kg (75.2 lbs.) Minimum center-to-center distance in side-by-side installation: 650 mm (25.6 in.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color Beam shaping: Internal barn doors, continuously variable opening, indexed rotation Iris: 0 - 100%, pulse effects Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Color temperature control: CTO, variable 6000 - 3200 K Dimming options: Choice of four dimming curves Zoom: Motorized Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring
    Control and Programming DMX channels: 18/24 16-bit control: Dimmer, pan, tilt Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    Optics Zoom range: 13.5° - 59° (1:5) Color temperature: 6000 K Output: 33,000 lumens
    Photometric Data

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
    Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
  • Electrical AC power: 120-240 V nominal, 50/60 Hz Typical half-cycle RMS inrush current: 16.2 A Power supply unit: Auto-ranging electronic switch-mode
    Typical Power and Current 120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999 208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996 230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994 240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993 Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
    Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F) Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 (pending) US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) (pending) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual: P/N 35000258
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power Input Cables: Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)
    Power connectors: Power Connector PowerCON Female : P/N 91611794 PC Lens Kit for MAC Viper™ Wash: P/N 91614050 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008 Half-coupler (tube) clamp: P/N 91602005 G-clamp (suspension with yoke vertically downwards only): P/N 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007 Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007 Flightcase for 2 x MAC Viper: P/N 91510180
    Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    Ordering Information MAC Viper™ Wash DX in cardboard box: P/N 90233070 MAC Viper™ Wash DX in 2-unit flightcase: P/N 90233080
    Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 39 kg (86.0 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 334 kg (736.4 lbs.)

    In double flightcase:

    Shipping dimensions (LxWxH): 1200 x 580 x 850 mm (47.3 x 22.9 x 33.5 in.)
    Shipping weight: 70 kg (154.4 lbs.)
    Quantity on pallet: 4 fixtures
    Pallet dimensions (LxWxH): 1200 x 1220 x 1010 mm (47.3 x 48.1 x 39.8 in.)
    Pallet weight (incl. pallet): 302 kg (665.8 lbs.)
