Alien 02 Pendant (discontinued)

Alien 02 Pendant
Larger Images

The Alien 02 is an architectural color changer employing the standard, long-life 150W CDM lamp and providing a low maintenance fixture for permanent installations.

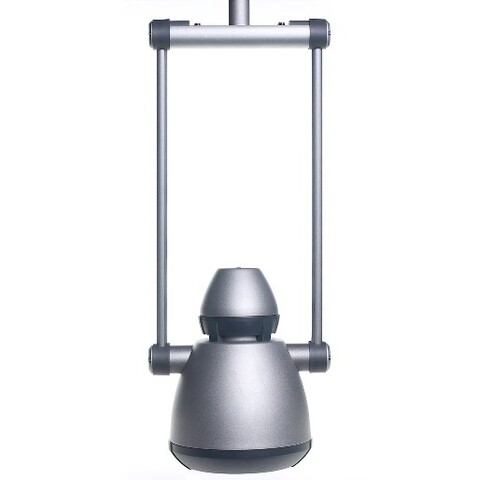

The Alien 02 Pendant differs from the Alien 02 spot in both appearance and tilt adjustment possibilities. The illumination head of the Pendant, fitted at the end of a flexible extension arm, allows the tilt angle of the fixture to be adjusted in two separate places, offering flexibility in both appearance and functionality. The extension arm also conceals the power and data cables, which lead to a central point from where they can be extended in a recessed ceiling or via a junction box.

Features

  • CDM-SA/T lamp
  • Concealed power and data cable
  • Easy maintenance
  • Full range intensity control
  • Full spectrum color mixing
  • Low noise operation
  • Multiple lens options
  • Remote base

Specifications

Physical Length: 800 mm Width: 300 mm Height: 235 mm Weight: 5.4 kg
Dynamic Effects Color mixing: CMY Cyan: 0 - 100% Magenta: 0 - 100% Yellow: 0 - 100% Dimmer: 0 - 100%
Control and Programming Required control hardware: 150 W Single Base or 150 W Double Base Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 7 Stand-alone memory: 20 scenes Setting and addressing: Display, infrared remote Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/T 150, GE CMH 150 Socket: G12 Control: Automatic and/or remote on/off
Construction Housing: Aluminum and plastic Base: Aluminum
Installation Required installation hardware: Alien 02 J-Box Orientation: Any Aiming: +/- 50° tilt, 360° rotation Minimum distance to combustible materials: 1 m Minimum distance to illuminated surfaces: 0.5 m Max. cable separation between lamp and Base: 16 m
Connections Power connection to Base: 1 m cable tail with 3-pin IEC male connector Control data connection to Base: 1 m cable tail with 25-pin male multi-connector
Electrical AC power: Supplied via Base unit that accepts 100/120/208/230/250 V, 50/60 Hz
Typical Power and Current One Alien 02 and one 150 W Single Base, combined: 100 V, 60 Hz: 220 W, 2.8 A 120 V, 60 Hz: 205 W, 1.8 A 208 V, 60 Hz: 190 W, 1.0 A 230 V, 50 Hz: 193 W, 0.9 A 250 V, 50 Hz: 208 W, 1.0 A Two Alien 02s and one 150 W Double Base, combined: 100 V, 60 Hz: 410 W, 3.5 A 120 V, 60 Hz: 410 W, 3.5 A 208 V, 60 Hz: 378 W, 2.0 A 230 V, 50 Hz: 393 W, 1.9 A 250 V, 50 Hz: 412 W, 1.9 A
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 80° C Cooling: Filtered forced air (temperature-regulated)
Typical Heat Output (calculated) One Alien 02 and one 150 W Single Base, combined: 750 BTU/hr. Two Alien 02s and one 150 W Double Base, combined: 1400 BTU/hr.
Approvals EU safety: UL 153 Canadian safety: CSA C22.2 EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE ETL C US Intertek
Included Items Philips CDM-SA/T 150 W lamp: 97010111
Accessories 21° Fresnel lens (gives Medium beam angle): 91610022 41° x 46° beamshaper lens: 91610023 42° Micro lens diffuser (gives Very Wide beam angle): 91610024 Barn door kit: 91611057 Glare control kit: 91611066 2 m cable extension kit: 91611051 5 m cable extension kit: 91611060 10 m cable extension kit: 91611061
Spare Parts Philips CDM-SA/T 150 W lamp: 97010111
Ordering Information Alien 02 Pendant, 38°, Aluminum: 90345100 Alien 02 J-Box (required item): 91611065 150 W Single Base: 90724000 150 W Double Base: 90724200 Alien 02 Recessed Base, white: 90724102 Alien 02 150 W Pendant for Recessed Base, white: 90345102

Downloads

  Version Language Size Uploaded
Specifications
file type icon DMX chart
en version 1, updated: May 2018
1  en  89.3 KB May 2018
file type icon DMX table
en version 1, updated: Oct 2020
1  en  431 KB Oct 2020
Photometric Data
en version A, updated: May 2018
A   en    May 2018
file type icon Alien 02 Pendant specifications
en version F, updated: Oct 2020
F  en  119 KB Oct 2020
file type icon Alien 02 Technische Daten
de version F, updated: Oct 2020
F  de  84.3 KB Oct 2020
file type icon 150W Base caractéristiques techniques
fr version D, updated: Oct 2020
D  fr  55.3 KB Oct 2020
file type icon 150W Base specifications
en version G, updated: Oct 2020
G  en  55.3 KB Oct 2020
file type icon 150W Base Technische Daten
de version G, updated: Oct 2020
G  de  11.3 KB Oct 2020
file type icon Descriptive specification
en version E, updated: Oct 2020
E  en  33.8 KB Oct 2020
Manuals
file type icon Alien 02 Spot - User manual
en version G, updated: Oct 2020
G  en  1.39 MB Oct 2020
file type icon Alien 02 Bedienungsanleitung
de version F, updated: Oct 2020
F  de  1.36 MB Oct 2020
file type icon 150W Base manuel d´utilisation
fr version D, updated: Oct 2020
D  fr  755 KB Oct 2020
file type icon 150W Base user manual
en version G, updated: Nov 2020
G  en  1.96 MB Nov 2020
file type icon 150W Base Bedienungsanleitung
de version G, updated: Oct 2020
G  de  2.07 MB Oct 2020
Illustrations
file type icon Dimensions
en version A, updated: May 2018
A  en  561 KB May 2018
file type icon Dimensions (DXF)
en version A, updated: May 2018
A  en  939 KB May 2018
file type icon 150W Single Base, dimensions
en version A, updated: Oct 2020
A  en  180 KB Oct 2020
file type icon AlienO2 Pendel J-box installation specs
en version A, updated: May 2018
A  en  62.4 KB May 2018
file type icon AlienP2 Pendel J-box installation specs (dxf)
en version A, updated: May 2018
A  en  196 KB May 2018
file type icon IR Remote Dimensions (DXF)
en version A, updated: Oct 2020
A  en  237 KB Oct 2020
file type icon IR Remote Dimensions
en version A, updated: Oct 2020
A  en  84.9 KB Oct 2020
file type icon 150W Double Base, dimensions (DXF)
en version A, updated: Oct 2020
A  en  254 KB Oct 2020
file type icon 150W Double Base, dimensions
en version A, updated: Oct 2020
A  en  439 KB Oct 2020
file type icon 150W Single Base, dimensions (DXF)
en version A, updated: Oct 2020
A  en  304 KB Oct 2020
Compliances
file type icon EU Declaration of Conformity
es version A, updated: May 2018
A  es  48.4 KB May 2018
Software
platform icon Martin USB Tools
version 1.2, updated: Jul 2020
1.2     107 MB Jul 2020
platform icon Alien 02 Pendant Main CPU
version 2.2.0, updated: Jul 2020
2.2.0     45.2 KB Jul 2020
Service Notes
Check Fan Connections in Single Base
en version A, updated: May 2018
A   en    May 2018
CPFC Capacitor Replacement Recommendation
en version B, updated: May 2018
B   en    May 2018
file type icon User manual, IR remote
en version A, updated: Oct 2020
A  en  273 KB Oct 2020
file type icon Manuel d'utilisation Télécommande Infrarouge
fr version A, updated: Oct 2020
A  fr  152 KB Oct 2020
file type icon Glare Control Kit installation note
en version B, updated: Oct 2020
B  en  100 KB Oct 2020
file type icon J-Box installation note
en version A, updated: May 2018
A  en  69.4 KB May 2018
file type icon Cable extension kit instruction note
en version C, updated: Oct 2020
C  en  313 KB Oct 2020
file type icon Barndoor kit installation note
en version B, updated: Oct 2020
B  en  97.9 KB Oct 2020
Hints And Tips
"Boot Sector" Versus "Boot Mode"
en version A, updated: May 2018
A   en    May 2018
RJ-45 Connectors
en version A, updated: May 2018
A   en    May 2018
Maximum Cable Run Extended
en version A, updated: May 2018
A   en    May 2018
Discharge Lighting Shutdown Guidelines
en version A, updated: May 2018
A   en    May 2018
