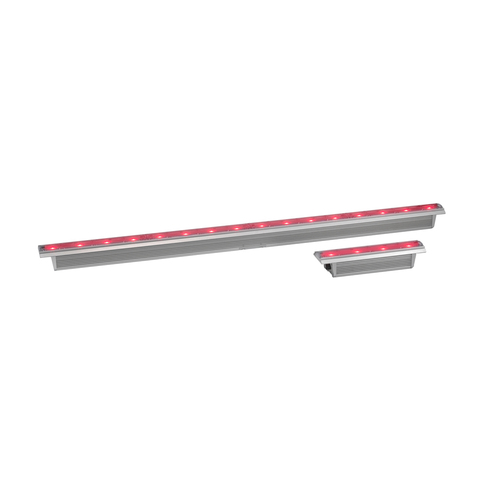

Exterior Linear Quad Cove

Larger Images

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

Exterior™ Linear 1210 Cove QUAD and Exterior™ Linear 310 Cove QUAD  use quad-color LEDs for superior color mixing directly at the lens and to avoid multi-colored shadows.

They feature superb color mixing and a uniform light distribution at a beam angle of 120°, suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures. The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

  • Linear LED fixture with premixed color mixing
  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply
  • Superior glare control

    The louvre option for Exterior Linear effectively reduces glare by restricting the view into the luminaire, achieving efficient visual comfort and reduced light pollution

  • Easy infrastructure

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Premixed color

    The QUAD color LED secures superior color mixing within the lens. This also improves the looks and aesthetics when the fixture itself is visible.

Superior glare control

The louvre option for Exterior Linear effectively reduces glare by restricting the view into the luminaire, achieving efficient visual comfort and reduced light pollution

Easy infrastructure

The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

Flexible installation

The hinged mounting bracket allows for flexible installation

Sophisticated control

The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

Premixed color

The QUAD color LED secures superior color mixing within the lens. This also improves the looks and aesthetics when the fixture itself is visible.

Videos

Exterior Linear Product Demonstration



Features

  • Wide spread and premixed color mixing out
  • Very low power consumption (max 20 W/ft)
  • No extra control boxes required – connects directly to line voltage and DMX
  • Internal power and control (DMX, RDM and magnetic tool)
  • Super rugged IP66 housing
  • 0–100% intensity control

Specifications

  • Physical 310 series (1 ft.) fixtures:

    Length: 305 mm (12.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 1.5 kg (3.4 lbs.)

    1210 series (4 ft.) fixtures:

    Length: 1219 mm (48.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 6.0 kg (13.3 lbs.)

    Dynamic Effects Color mixing: RGBW Intensity: 0 - 100% Control and Programming Control systems: DMX, RDM Control resolution: 8-bit DMX control of each color User interface: Magnetic button to call up fixture status and test fixture DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20 Optics Light source: Quad-color OSRAM Ostar Beam angle: 105° LED spacing: 4 LEDs per 300 mm (4 LEDs per foot) Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under test conditions Photometric Data Exterior Linear 310 QUAD Cove:

    Total luminous output: 579 lumens
    Red output: 225 lumens
    Green output: 354 lumens
    Blue output: 85 lumens
    White output: 523 lumens

    Exterior Linear 1210 QUAD Cove:

    Total luminous output: 2316 lumens
    Red output: 900 lumens
    Green output: 1416 lumens
    Blue output: 340 lumens
    White output: 2092 lumens

    Construction Housing: Aluminum Front: Clear polycarbonate with diffuser Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) RoHS compliant Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
  • Connections Power/data in/thru: 8-pin custom connectors Electrical AC power: 100-277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.) Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.) Typical half-cycle RMS inrush current: 0.3 A, 1210 QUAD models 0.7 A Surge protection: 4 KV Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor. Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot Approvals EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 (pending) US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 (pending) Australia/NZ: RCM (pending) Accessories Magnetic Test Tool, set of 10: P/N 91610139 Optical: Exterior Linear 300 Series Glare Shield, set of 4: P/N 91611752 Exterior Linear 1200 Series Glare Shield, set of 4: P/N 91611753 Exterior Linear 310/1210 QUAD Cove Louvre, set of 4: P/N 91611852 Cables: Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754 Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755 Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156 Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157 Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758 Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759 Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760 Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761 Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762 Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763 Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764 Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765 End Termination Cap for power + data link: P/N 91611766 Ordering Information Exterior Linear 310 Quad Cove: P/N 90356997 Exterior Linear 1210 Quad Cove: P/N 90356996

Downloads

  Version Language Size Uploaded
Specifications
Exterior Linear Quad Spec Sheet-English (EN) en  600 KB Feb 27, 2019
Exterior Linear Cables en  899 KB May 23, 2018
Manuals
Exterior Linear Series - User Manual en  2.61 MB May 02, 2018
Photometrics
Exterior Linear 310-1210 QUAD Cove en  4.85 MB Jul 05, 2018
Exterior Linear Cove Series - Photometrics files     219 KB Apr 12, 2019
Illustrations
Exterior Linear 310 QUAD Cove – 2D dimensions (PDF)   en  194 KB Jan 14, 2019
Exterior Linear 310 QUAD Cove – 2D dimensions (DWG)   en  1.46 MB Jan 14, 2019
Exterior Linear 1210 QUAD Cove – 2D dimensions (DWG)   en  2.22 MB Jan 14, 2019
Exterior Linear 1210 QUAD Cove – 2D dimensions (PDF)   en  278 KB Jan 14, 2019
3D Symbols
Vectorworks Symbols 2.6  en  66.4 MB May 01, 2019
CAD Drawings
Exterior Linear 1200 Cove Series 3D (DWG) en  7.02 MB Oct 21, 2015
Exterior Linear 1200 Cove Series 3D (DXF) en  80.7 MB Oct 21, 2015
Exterior Linear 300 Cove Series 3D (DWG) en  1020 KB Oct 21, 2015
Exterior Linear 300 Cove Series 3D (DXF) en  10.2 MB Oct 21, 2015
Compliances
Exterior Linear Series - Product Verification and Reliability Report   484 KB Mar 16, 2018
Exterior Linear Quad Graze Series and Cove Series - ETL Listing Verification   289 KB Mar 15, 2018
Exterior Linear Graze and Cove Series - EU Declaration of Conformity en  556 KB Mar 20, 2018
Exterior Linear Graze and Cove Series - Déclaration de Conformité Européenne fr  649 KB Mar 20, 2018
Software
Exterior Linear Series Firmware       Jan 23, 2019
Service Notes
Exterior products - Performing a vacuum test - Tech note en  1.9 MB May 01, 2017
