Exterior Linear RGBW Cove

El rgbw cove vert medium
Larger Images

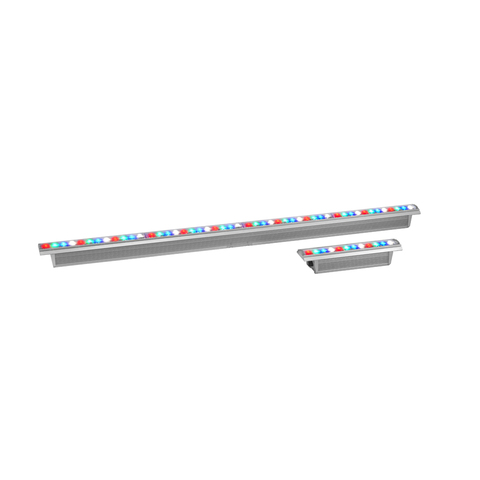

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

Exterior™ Linear 1200 Cove RGBW and Exterior™ Linear 300 Cove RGBW feature superb color mixing and a uniform light distribution at a beam angle of 120°, suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures

The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

  • Linear LED fixture with high output color mixing

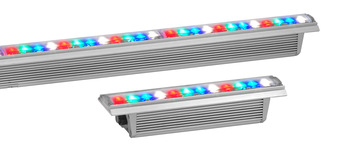

  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply
  • Easy infrastructure

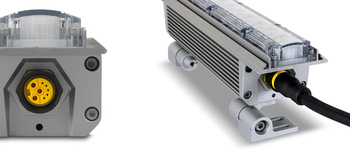

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

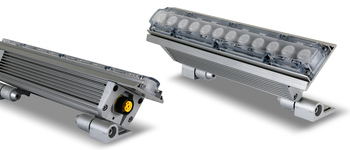

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

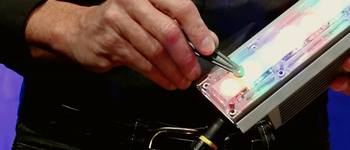

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Narrow beam control

    Dynamic color mixing using discreet Red, Green, Blue and neutral White Cree XP-E2 LEDs. This version offers the most narrow beam angle configuration and optimum brightness for large scale graze lighting applications.

Videos

Features

  • Wide spread and uniform color mixing.
  • Very low power consumption (max 20 W/ft).
  • No extra control boxes required – connects directly to line voltage and DMX.
  • Internal power and control (DMX, RDM and magnetic tool).
  • Super rugged IP66 housing.
  • 0–100% intensity control.

Tech Specs

Physical300 series (1 ft.) fixturesLength: 305 mm (12.0 in.)Width: 72 mm (2.8 in.)Height: 95 mm (3.8 in.) including bracketWeight: 1.6 kg (3.6 lbs.)1200 series (4 ft.) fixturesLength: 1219 mm (48.0 in.)Width: 72 mm (2.8 in.)Height: 95 mm (3.8 in.) including bracketWeight: 6.4 kg (14.2 lbs.)
Dynamic EffectsIntensity: 0 - 100%Color mixing: RGBW
Control and ProgrammingControl systems: DMX, RDMControl resolution: 8-bit DMX control of each colorUser interface: Magnetic button to call up fixture status and test fixtureDMX compliance: USITT DMX512/1990 RDMRDM compliance: ANSI/ESTA E1.20
OpticsLight source: 3 W Cree XP-E2 LEDsBeam angle: 120°Minimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under test conditions
Photometric DataExterior Linear 300 RGBW CoveTotal luminous output: 874 lumensRed output: 134 lumensGreen output: 296 lumensBlue output: 42 lumensWhite output: 308 lumensExterior Linear 1200 RGBW CoveTotal luminous output: 3496 lumensRed output: 536 lumensGreen output: 1184 lumensBlue output: 168 lumensWhite output: 1232 lumens
ConstructionHousing: AluminumFront: Clear polycarbonateProtection rating: IP66IK rating: IK08Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)RoHS compliant
InstallationOrientation: AnyMinimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
ConnectionsPower/data in/thru: 8-pin custom connectors
ElectricalAC power: 100 -277 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modeMaximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.)Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.)Typical half-cycle RMS inrush current: 300 models 0.3 A, 1200 models 0.7 ASurge protection: 4 KV
Typical Power and Current100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)Minimum ambient temperature (Ta min.): -30° C (-22° F)Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot
ApprovalsEU Safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3US safety (pending): ANSI/UL 1598US EMC: 47 CFR Part 15 Class BCanadian safety (pending): CSA C22.2 No. 250.0Australia/NZ (pending): RCM

AccessoriesMagnetic Test Tool, set of 10: P/N 91610139OpticalExterior Linear 300 Glare Shield, set of 4: P/N 91611752Exterior Linear 1200 Glare Shield, set of 4: P/N 91611753CablesPower + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765End Termination Cap for power + data link: P/N 91611766
Ordering InformationExterior Linear 300 RGBW Cove: P/N 90356976Exterior Linear 1200 RGBW Cove: P/N 90356979

Downloads

Filename Version Language Size Uploaded
Exterior Linear RGBW Cove Spec Sheet-English   en  620 KB Mar 13, 2018
Service Notes
Download 17 Exterior products - Performing a vacuum test - Tech note en  1.9 MB May 01, 2017
Specifications
Download 17 Exterior Linear Cove Series - Photometrics files en  219 KB Sep 29, 2017
Pdf 17 Exterior Linear Cables en  899 KB May 23, 2018
Manuals
Download 17 Exterior Linear Series - User Manual en  2.61 MB May 02, 2018
Illustrations
Download 17 Exterior Linear 1200 Cove Series 2D (DXF) en  7.4 MB Feb 08, 2017
Download 17 Exterior Linear 1200 Cove Series 2D (PDF) en  313 KB Jan 20, 2017
Download 17 Exterior Linear 300 Cove Series 2D (DXF) en  3.62 MB Feb 08, 2017
Download 17 Exterior Linear 300 Cove Series 2D (PDF) en  167 KB Jan 20, 2017
Download 17 Exterior Linear Series - mounting bracket dimensions en  113 KB Jan 24, 2017
Pdf 17 EL 300/320 Cove Drawing   en  768 KB Jun 19, 2018
Pdf 17 EL 300/320 Cove Mounted with Glare Shield Drawing   en  862 KB Jun 19, 2018
Pdf 17 EL 1200/1220 Cove Drawing   en  816 KB Jun 19, 2018
Pdf 17 EL 1200/1220 Cove Mounted with Glare Shield Drawing   en  1.14 MB Jun 19, 2018
3D Symbols
Download 17 Exterior Linear 1200 Cove Series 3D (DWG) en  7.02 MB Oct 21, 2015
Download 17 Exterior Linear 1200 Cove Series 3D (DXF) en  80.7 MB Oct 21, 2015
Download 17 Exterior Linear 300 Cove Series 3D (DWG) en  1020 KB Oct 21, 2015
Download 17 Exterior Linear 300 Cove Series 3D (DXF) en  10.2 MB Oct 21, 2015
Download 17 Vectorworks Symbols 2.5  en  110 MB Mar 27, 2018
Compliances
Download 17 Exterior Linear Graze and Cove Series - EU Declaration of Conformity en  556 KB Mar 20, 2018
Download 17 Exterior Linear Graze and Cove Series - Déclaration de Conformité Européenne fr  649 KB Mar 20, 2018
Download 17 Exterior Linear Graze Series and Cove Series - ETL Listing Verification   476 KB Jan 26, 2017
Download 17 Exterior Linear Series - Product Verification and Reliability Report   484 KB Mar 16, 2018
