Exterior Wash 310

Ext 310 1 vert medium
Larger Images

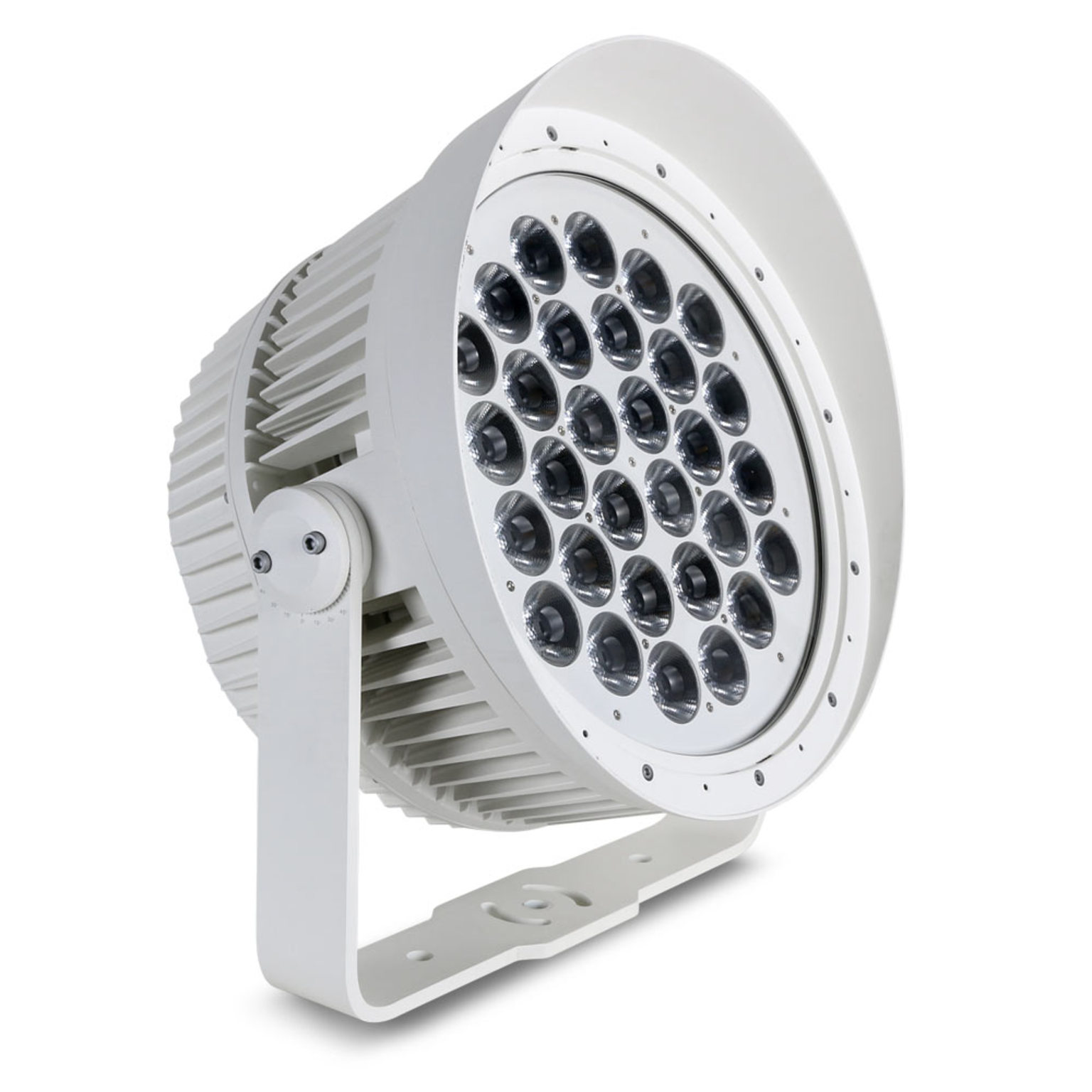

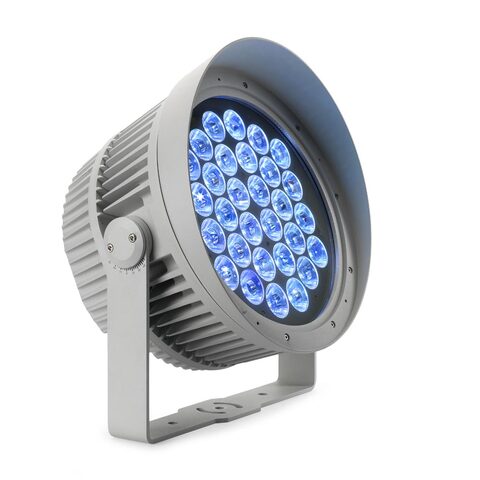

Exterior Wash™ 310 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate large structures, building facades and bridges. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 310 is designed for superior color mixing applications and is based on quad-color premixed LEDs.

  • Uniform color mixing with 6 beam angle options
  • Functional and discreet optional snoot which integrates with the design of the fixtures
  • Control via DMX, RDM and OLED display

Videos

Product Demo

Features

  • Powerful premixed LEDs
  • Up to 8300 lumens at full white (RGBW)
  • Six different beam angle options
  • Internal power and control (DMX, RDM and OLED display)
  • Rugged IP66 housing
  • 0 – 100% intensity control

Tech Specs

PhysicalLength: 283 mm (11.2 in.)Width: 404 mm (15.9 in.)Height: 439 mm (17.3 in.)Weight: 19.0 kg (42.0 lbs.)
Dynamic EffectsIntensity: 0 - 100%Color mixing: RGBW
Control and ProgrammingControl systems: DMX, RDMDMX channels: 4Setting, addressing, standalone programming: Control panel with OLED displayReceiver: RS-485Firmware update: Serial upload via DMX linkDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20
OpticsAll modelsMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Light source: 30 x RGBW quad-color LEDsLED manufacturer: CreeBeam angle optionsNo diffuser: 11°Narrow diffuser: 13°Medium diffuser: 27°Wide diffuser: 43°Very wide diffuser: 62°Asymmetric diffuser: 66° x 15°*Figure obtained under manufacturer's test conditions
Photometric DataTotal luminous output: 8300 lumens
ConstructionIngress protection rating: IP66Surface treatment: Anodized and electrostatic powder-coatedColor: Light grey (white, black or other colors available on request)Housing: Cast aluminumEffective Projected Area (EPA): 0.14 m² including snootImpact resistance: IK08 (with control panel display cover plate installed)Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)RoHS compliant
InstallationOrientation: AnyMounting: Adjustable yokeVertical aiming: TBAMinimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
ConnectionsPower connection: 1.8 m (5.9 ft.) cable tail without connectorData connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tailAll cable entries: IP68 cable gland
ElectricalAC power: 100 - 240 / 277 V nominal, 50/60 HzPower supply unit: Integrated, auto-sensing multi-voltagePower consumption, steady state, all LEDs at zero intensity:7 WMaximum total power consumption: 300 WTypical half-cycle RMS inrush current: 10.9 ASurge protection: 4 KV
Typical Power and Current100 V, 60 Hz: 2.7 A, 270 W, PF 0.99120 V, 60 Hz: 2.3 A, 265 W, PF 0.99230 V, 50 Hz: 1.2 A, 260 W, PF 0.98277 V, 60 Hz: 1.0 A, 260 W, PF 0.95Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)Minimum ambient temperature (Ta min.): -30° C (-22° F), power must be maintained below -20° C (-4° F)Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F)Total heat dissipation (calculated, +/- 10%): 945 BTU/hr
ApprovalsEU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5US safety: ANSI/UL 1598US EMC: 47 CFR Part 15 Class ACanadian safety: CSA C.22.2 No. 250Australia/NZ: RCM

Included ItemsPower cable: Cable tail, 1.8 m (5.9 ft.), external diameter 9.5 mm (0.38 in.), installedData cable: Cable tail, 1.8 m (5.9 ft.), external diameter 6.5 mm (0.26 in.), installed
AccessoriesOpticalExterior Wash 300 Series, narrow diffuser kit: P/N 91610155Exterior Wash 300 Series, medium diffuser kit: P/N 91610156Exterior Wash 300 Series, wide diffuser kit: P/N 91610157Exterior Wash 300 Series, very wide diffuser kit: P/N 91610158Exterior Wash 300 Series, asymmetric diffuser kit: P/N 91610159Exterior Wash 300 Series, glare shield / snoot: P/N 91611735
Related ItemsMartin USB interface box incl. cables: P/N 90758090M-PC 2U™ incl. Martin M-DMX Interface Box and USB cable:P/N 90737070
Ordering InformationExterior Wash 310, 10°, EU, aluminum: P/N 90507075Exterior Wash 310, 10°, US, aluminum: P/N 90507085
