MAC 2000 Performance II (discontinued)

Larger Images

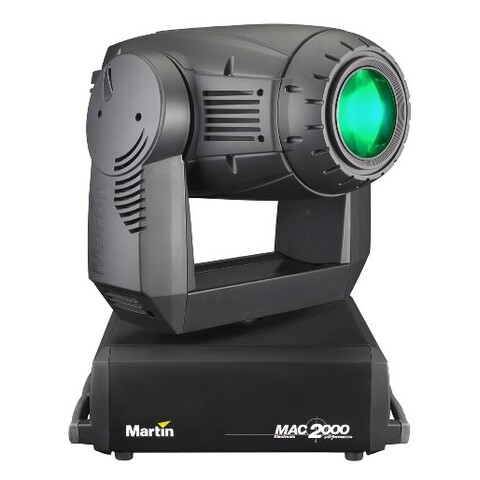

The MAC 2000 Performance features a mechanized framing system and gobo animation module as well as a gobo and effect wheel, CMY system and much more.

Features

  • 1200 W short arc discharge lamp
  • CMY color mixing system
  • Variable CTC
  • Gobo animation wheel with full movement / direction control
  • Variable frost, 9-facet prism
  • Motorized iris
  • Automated framing system
  • Strobe effect up to 10 Hz, pulse effects, instant open and blackout
  • Motorized zoom and focus
  • Motorized beam expander
  • Mechanical dimming
  • Pan and tilt range of 540°/267°
  • Modular design for easy maintenance and servicing
  • Electronic ballast with hot lamp restrike and flicker free light
  • Variable fan control for quieter operation
  • 5 indexable rotating gobos plus open

Specifications

Physical Length: 408 mm Width: 490 mm Height: 743 mm, head straight up Weight: 39.5 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: 0 - 178 mireds, continuously variable Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction Rotating gobo wheel: 5 interchangeable gobos + open, indexing, continuous gobo rotation, shake Four-blade framing system: Blade tilting +/- 31°, frame rotation +/- 45° Effect wheel: Wide-angle converter lens, non-rotating 9-facet prism, variable frost Mechanical dimmer: 0 - 100% Shutter: Strobe effect up to 10 Hz, pulse effects, instant open and blackout Iris: 15 - 100% diameter, pulse effects Focus: 2 m to infinity Zoom: Motorized Pan: 540° Tilt: 267°
Control and Programming DMX channels: 28/31 Setting and addressing: Control panel with display 16-bit control: Rotating gobos, pan & tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 1200 W short-arc discharge Fitted as standard: Philips MSR 1200 SA/DE Gold Color temperature: 6000 K CRI (Color rendering index): >85 Average lifetime: 750 hours Hot restrike: Yes Socket: Double-ended SFc 10-4 with key Ballast: Electronic Approved alternative lamp(s): Osram HTI 1200 D7/60 SharXS
Optics Beam angle: 12° - 31° (18° - 41° with beam expander effect selected), cut-off angles
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Gobos Outside diameter: 37.5 mm +0/- 0.3 mm Maximum image diameter: 30 mm Recommended glass: 1.1 mm, high-temperature Borofloat or better with dichroic or enhanced aluminum coating Maximum glass thickness: 7 mm, up to 3 mm can be spring-mounted, 3 mm - 7 mm must be glued in holder Recommended metal: 0.5 mm aluminum
Gobo Animation Wheel Outside diameter: 133 mm +0/- 0.25 mm Image outer diameter: 130 mm Image inner diameter: 16 mm Construction: 0.5 mm aluminum, magnetic mounting
Installation Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible Orientation: Any
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-120/208-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 15 AT (x 2, for use with 208-240 V power) Main fuse: 20 AT (x 2, for use with 100-120 V power)
Typical Power and Current 100 V, 50 Hz: 1590 W, 19.8 A 100 V, 60 Hz: 1560 W, 19.3 A 120 V, 50 Hz: 1560 W, 16.8 A 120 V, 60 Hz: 1540 W, 16.3 A 208 V, 50 Hz: 1470 W, 10.5 A 208 V, 60 Hz: 1470 W, 10.3 A 230 V, 50 Hz: 1480 W, 9.6 A 230 V, 60 Hz: 1470 W, 9.4 A 250 V, 50 Hz: 1480 W, 8.6 A 250 V, 60 Hz: 1480 W, 8.5 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 140° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 5230 / 5120 BTU/hr
Approvals EU EMC: EN 50 081-1, EN 50 082-1 EU safety: EN 60598-1, EN 60598-2-17 Canadian safety: CSA C22.2 No. 166 US safety: ANSI/UL 1573
Included Items Philips MSR 1200 SA/DE Gold lamp (installed): 97010310 MAC 2000 Performance Module (installed): Realistic stars gobo (E size): 43036008 Cloud gobo (E size): 43036007 Radial breakup gobo animation wheel (installed): 62400211 Cloud breakup animation wheel: 62400213 Dot breakup animation wheel: 62400214 Tangential breakup animation wheel: 62400215 Spiral breakup animation wheel: 62400216 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual: 35000103
Accessories Linear breakup gobo animation wheel: 62400223 Triangle break gobo animation wheel: 62400225 Elliptical breakup gobo animation wheel: 62400221 Flicker wheel gobo animation wheel: 62400222 Coarse radial breakup gobo animation wheel: 62400224 Coarse tangential breakup gobo animation wheel: 62400226 T-shaped omega bracket with quarter-turn fasteners: 91602008 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Double flightcase (SIP) for MAC 2000 Series: 91510170
Spare Parts Philips MSR 1200 SA/DE Gold lamp: 97010310 15 AT main fuse: 05020039 20 AT main fuse: 05020040
Ordering Information MAC 2000 Performance II in cardboard box: 90205465
