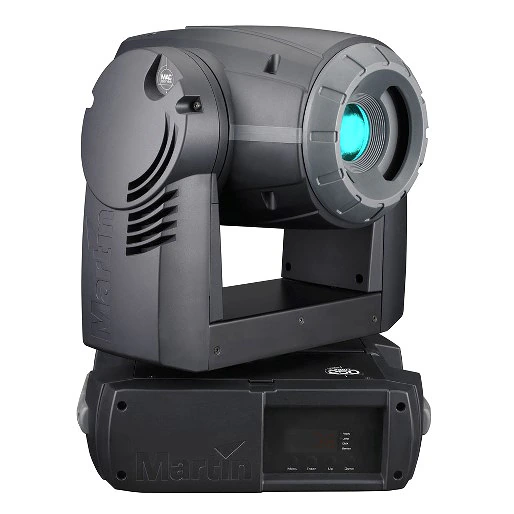

MAC 250 Krypton (discontinued)

Larger Images

The MAC 250 Krypton is a high performance profile with a separate gobo and color wheel, an achromatic lens system and a rotating prism.

Features

  • 250 W long life discharge lamp
  • Total output up to 5000 lumens
  • 12 position color wheel plus open
  • Interchangeable rotating prism
  • Strobe effect up to 14 Hz, pulse effects, instant open and blackout
  • Rapid strobe effects (up to 14 Hz)
  • Motorized focus
  • Mechanical dimming
  • Pan and tilt range of 540°/257°
  • Quiet operation
  • 7 indexable rotating gobos plus open

Specifications

Physical Length: 375 mm Width: 315 mm Height: 538 mm, head straight up Weight: 22.4 kg
Dynamic Effects Color wheel: 12 colors (incl. CTC) + open, full and split positions, continuous rotation Rotating gobo wheel: 7 interchangeable gobos + open, indexing, continuous gobo rotation, shake, continuous scrolling Prism: Interchangeable 3-facet rotating prism Mechanical dimmer: 0 - 100% Shutter: Strobe effect up to 14 Hz, pulse effects, instant open and blackout Focus: 2 m to infinity Pan: 540° Tilt: 257°
Control and Programming DMX channels: 14/17 Setting and addressing: Control panel with LED display 16-bit control: Color wheel, rotating gobos, dimmer, focus, pan and tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 250 W discharge Fitted as standard: Sylvania BA 250/2 Color temperature: 8000 K CRI (Color rendering index): >85 Average lifetime: 3000 hours Hot restrike: No Socket: GY 9.5 Ballast: Magnetic Approved alternative lamp(s): Osram HSD 250/80, GE CSD 250/2, Philips MSD 250/2
Optics Beam angle: 20°, cut-off angle
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Gobos Outside diameter: 22.5 mm + 0/- 0.3 mm Maximum image diameter: 17 mm Maximum thickness: 1.8 mm Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating Recommended metal: Aluminum (steel for temporary use only)
Installation Mounting points: 2 pairs of 1/4-turn locks Orientation: Any
Connections AC power input: 3-pin IEC DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: User-reconfigurable voltage and frequency settings Main fuse: 6.3 AT (slow blow)
Typical Power and Current 100 V, 50 Hz: 319 W, 3.8 A, PF 0.83 100 V, 60 Hz: 317 W, 3.4 A, PF 0.93 120 V, 50 Hz: 320 W, 2.9 A, PF 0.91 120 V, 60 Hz: 314 W, 2.7 A, PF 0.96 208 V, 50 Hz: 320 W, 1.9 A, PF 0.81 208 V, 60 Hz: 319 W, 1.7 A, PF 0.92 230 V, 50 Hz: 323 W, 1.6 A, PF 0.89 230 V, 60 Hz: 326 W, 1.5 A, PF 0.95 250 V, 50 Hz: 326 W, 1.5 A, PF 0.89 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 160° C Total heat dissipation (calculated, +/- 10%): 1120 BTU/hr.
Approvals EU EMC: EN 55 015, EN 55 103-1, EN 61 547 EU safety: EN 60598-2-17 US safety: ANSI/UL 1573 Canadian safety: CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Philips MSD 250/2 lamp (installed): 97010100 3 m power cable, 3-pin IEC: 11501013 Two T-shaped Omega brackets with 1/4 turn fasteners: 91602008 User manual: 35000126
Accessories Osram HSD 250/80 lamp: 97010116 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Double flightcase for MAC 250 Krypton/Entour/Wash: 91510014
Spare Parts Main fuse (6.3 AT): 05020020 Fuse F1 (6.3 AT): 05020020 Fuse F2 (2 AT): 05020009
Ordering Information MAC 250 Krypton in cardboard box: 90225600 MAC 250 Krypton in double flightcase: 90225641

Downloads

  Version Language Size Uploaded
Specifications
Photometric Data
en version A, updated: May 22, 2018
en    May 22, 2018
Manuals
Manuale d'uso
it version F, updated: May 11, 2018
it  1.66 MB May 11, 2018
Manuel d´utilisation
fr version C, updated: May 18, 2018
fr  1.64 MB May 18, 2018
User manual
en version K, updated: May 18, 2018
en  2.06 MB May 18, 2018
Bedienungsanleitung
de version H, updated: May 18, 2018
de  1.69 MB May 18, 2018
Illustrations
Mac250 Kryp/Ent_3D symbol_90° head
en version A, updated: May 11, 2018
en  2.71 MB May 11, 2018
DIMS_MAC250_Ent_Kr_A_dxf
updated: May 11, 2018
    432 KB May 11, 2018
DIMS_MAC250_Ent_Kr_A
updated: May 11, 2018
    141 KB May 11, 2018
Compliances
EU Declaration of Conformity
es version A, updated: May 18, 2018
es  305 KB May 18, 2018
Software
MAC 250 Krypton Main CPU
version 1.8.0, updated: May 19, 2018
1.8.0    69.1 KB May 19, 2018
Parts
Service Notes
DMX cables now optional accessories
en version A, updated: May 22, 2018
en    May 22, 2018
CPFC Capacitor Replacement Recommendation
en version B, updated: May 22, 2018
en    May 22, 2018
Support Bracket Kit for the Prism/Dimmer Module
en version A, updated: May 19, 2018
en  43.4 KB May 19, 2018
Reflector Kit for MAC 250 Wash, MAC 250 Krypton
en version A, updated: May 11, 2018
en  106 KB May 11, 2018
3000 Hours from Philips MSD 250/2
en version A, updated: May 19, 2018
en  43.4 KB May 19, 2018
PFC Capacitor Replacement
en version B, updated: May 18, 2018
en  733 KB May 18, 2018
Hints And Tips
Electrical safety test equipment
en version B, updated: May 22, 2018
en    May 22, 2018
Discharge Lighting Shutdown Guidelines
en version A, updated: May 22, 2018
en    May 22, 2018
Wait 2 Minutes After Uploading New Software
en version A, updated: May 22, 2018
en    May 22, 2018
