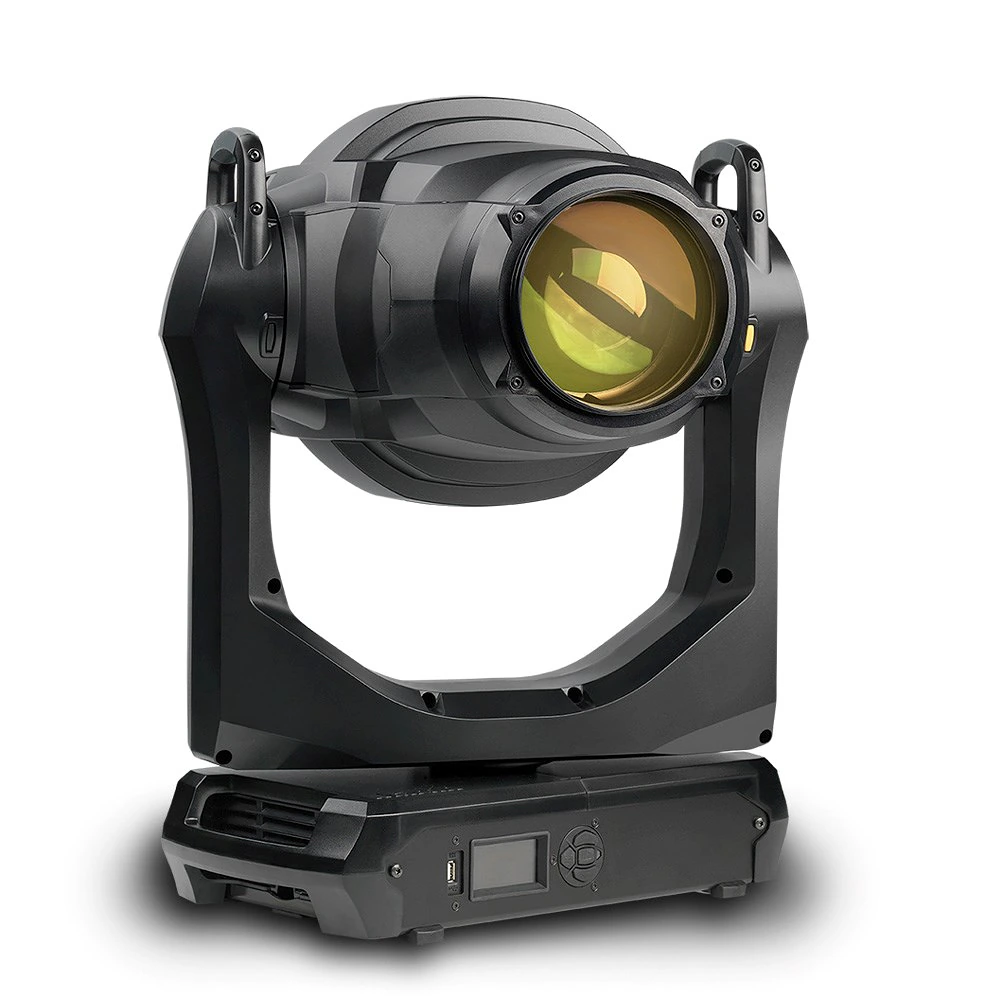

MAC Encore Performance WRM

High quality warm light hard edge moving head

Larger Images

MAC Encore™ Performance WRM integrates cutting-edge LED technology with a proprietary and innovative light engine carefully engineered to generate pristine, full spectrum light with ultra-high color rendition. The feature-packed moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source. Its advanced color mixing system delivers the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Moreover, it offers a fully variable color correction to blue/daylight.

  • Unparalleled 3000 K warm white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratio
  • NEW LED TECHNOLOGY

    Designed for real life applications, its pure white 3000 K CCT offers the most comprehensive spectrum available to date in an LED source moving head.  High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

  • WHISPER-SILENT

    This is the most silent, hard edge moving head we’ve ever built. All motorized effect operations—cooling fans, framing shutters, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Performance WRM is still a stealth operator.

  • COLOR PALETTE

    Precise color temperature control with variable color temperature correction (CTB) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

  • OPTICS

    A flat field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Ultra-fast, precise, and super silent, 1:4 zoom with auto-linked focus allows for both high and low ceiling usage that spans from tight beams to wide coverage.

  • DYNAMIC EFFECTS

    Five rotating glass gobos offer designers a great choice of patterns for projection and mid-air effects and the patented Animotion™ FX system adds 3D effect options. Slim focal separation enables you to run gobos simultaneously with animation wheel and framing, while its precise and tight iris allows you to define crisp and sharp beams.

  • STURDY, LIGHTWEIGHT DESIGN

    With its best-in-class compact design and premium build-quality, MAC Encore Performance WRM lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (31 kg/68 lbs.).

NEW LED TECHNOLOGY

Designed for real life applications, its pure white 3000 K CCT offers the most comprehensive spectrum available to date in an LED source moving head.  High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

WHISPER-SILENT

This is the most silent, hard edge moving head we’ve ever built. All motorized effect operations—cooling fans, framing shutters, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Performance WRM is still a stealth operator.

COLOR PALETTE

Precise color temperature control with variable color temperature correction (CTB) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

OPTICS

A flat field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Ultra-fast, precise, and super silent, 1:4 zoom with auto-linked focus allows for both high and low ceiling usage that spans from tight beams to wide coverage.

DYNAMIC EFFECTS

Five rotating glass gobos offer designers a great choice of patterns for projection and mid-air effects and the patented Animotion™ FX system adds 3D effect options. Slim focal separation enables you to run gobos simultaneously with animation wheel and framing, while its precise and tight iris allows you to define crisp and sharp beams.

STURDY, LIGHTWEIGHT DESIGN

With its best-in-class compact design and premium build-quality, MAC Encore Performance WRM lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (31 kg/68 lbs.).

Videos

Martin MAC Encore Performance Product Demo



MAC Encore—World-class Performance Lighting



Features

  • Pure white LED engine with 3000 K CCT
  • A flat field without color temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Ultra-low noise—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from light and smooth pastel shades to rich, saturated primaries.
  • Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • 1:4 zoom—precise and fast, silent zoom with auto- linked focus.
  • Four framing shutter blades with individual +/- 30° adjustment and entire system rotation of +/- 55° allow for high-precision cue repeats.
  • Five rotating glass gobos with next to zero focal separation from the framing system.
  • Animation wheel with continuous multi-directional rotation and indexing with variable angle, speed and direction.
  • Animotion™ FX System—internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Precise and tight iris with adjustable dynamic effects.
  • Soft frost—a light frost that leaves gobo artwork and framed images visible with a beautiful soft edge.
  • Heavy frost available as an optional accessory.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 mm x W: 480 mm x H: 733 mm (L: 17.8 in x W: 18.9 in x H: 28.9 in).
  • Low weight—31 kg/68 lbs.
  • Foam rubber (SiP) flightcase insert for secure shipment.

Specifications

  • Physical Length: 452 mm (17.8 in.) Width: 480 mm (18.9 in.) across yoke Height:

    740 mm (29.2 in.) maximum
    731 mm (28.8 in.) head straight up

    Weight: 31 kg (68.4 lbs.) Minimum center-to-center distance in side-by-side installation: 700 mm (27.6 in.) Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: CMY, independently variable 0 - 100% Color temperature control: Variable 3000 - 7000 K Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel: 5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake Framing: Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and position Iris: Variable 0 - 100% Frost: Variable 0 - 100% Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout Dimming options: Choice of four dimming curves Zoom: Motorized Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Control and Programming 16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt Movement control options: Tracking and vector Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX DMX channels: 38 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link Optics Zoom range: 12° - 48° one-tenth peak (1:4) Light source: 3000 K white LEDs CRI (Color Rendering Index): >90 Total LED engine power: 468 W Minimum LED lifetime: 50,000 hours (to >80% luminous output)* *Figure obtained under manufacturer's test conditions Photometric Data Light engine luminous output: ≥ 31,500 lumens Fixture luminous output: 9200 lumens CQS (Color Quality Scale): >90 TM-30 Rf (IES TM-30-15 Fidelity Index): >90 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >90 Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20 Installation Mounting points: 4 pairs of 1/4-turn locks Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.) Connections AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) DMX and RDM data in/out: 5-pin locking XLR
  • Electrical AC power: 120-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Power Consumption: 64 W, all effects static, zero light output Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A Typical Power and Current 120 V, 60 Hz: 5.0 A, 596 W, PF 0.998 208 V, 60 Hz: 2.9 A, 581 W, PF 0.988 230 V, 50 Hz: 2.6 A, 580 W, PF 0.981 240 V, 50 Hz: 2.2 A, 585 W, PF 0.979 Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor. Thermal Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr. Approvals EU safety: EN 60598-2-17, EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. E598-2-17 Canadian EMC: ICES-003 Class A Australia/NZ: RCM Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment Accessories Gelframe MAC Encore: P/N 91001000 Set of Followspot Handles MAC Encore: P/N 91001001HU Heavy Frost Assy MAC Encore Performance: P/N 91001002HU SIP Packaging MAC Encore Family: P/N 91616115HU Static GOBO Wheel MAC Encore Performance: P/N 91001003 Top Hat MAC Encore Performance: P/N 91001004 Cables and connectors:

    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789

    Flightcase: Two-unit Flightcase for MAC Encore™*: P/N 91515048 *Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin® M-PC 2U incl. Martin® M-DMX USB-DMX Interface: P/N 90737070 Martin® M-PC Pro-64 / LJ-4 Controller Kit incl. Martin® M-DMX USB-DMX Interface: P/N 90737060 Martin™ RDM 5.5 Splitter: P/N 90758150 Ordering Information MAC Encore™ Performance WRM EPS (in cardboard box, polystyrene packaging): P/N 90234000 MAC Encore™ Performance WRM SIP (in cardboard box with SIP foam flightcase insert): P/N 90234005 MAC Encore™ Performance WRM, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90234010HU

Downloads

  Version Language Size Uploaded
Specifications
MAC Encore Performance - Photometric files en  7.3 MB May 18, 2018
MAC Encore Performance - Acoustic test report en  455 KB May 18, 2018
MAC Encore - SiP data sheet en  1.31 MB May 18, 2018
MAC Encore Performance - Spec sheets en  1.41 MB May 18, 2018
Manuals
MAC Encore Performance - Manuel d'Installation et Sécurité fr  6.72 MB Oct 26, 2018
MAC Encore Performance - Safety and Installation Manual en  6.68 MB Oct 26, 2018
MAC Encore Performance - Sicherheits- und Installationshinweise de  10.7 MB Oct 29, 2018
MAC Encore Performance - Bedienungsanleitung de  732 KB May 18, 2018
MAC Encore Performance - User Guide en  1.1 MB May 18, 2018
MAC Encore Performance - Guide de l'Utilisateur fr  810 KB May 18, 2018
Illustrations
Top Hat MAC Encore Performance - 2D Dimensions (DWG)     428 KB Jan 17, 2019
Top Hat MAC Encore Performance - 2D Dimensions (PDF)     214 KB Jan 17, 2019
MAC Encore Performance Animation Wheel Drawing     368 KB Mar 01, 2019
MAC Encore Performance Static Gobo Wheel Drawing     315 KB Mar 01, 2019
MAC Encore Performance - 2D dimensions (DWG) en  3.79 MB May 18, 2018
MAC Encore Performance - 2D dimensions (PDF) en  281 KB May 18, 2018
3D Symbols
Vectorworks Symbols 2.7  en  251 MB Oct 08, 2019
CAD Drawings
MAC Encore Performance - Head vertical, 3D dimensions (3DS) en  12.6 MB May 18, 2018
MAC Encore Performance - Head vertical, 3D dimensions (DWG) en  8.12 MB May 18, 2018
MAC Encore Performance - Head horizontal, 3D dimensions (DWG) en  10.1 MB May 18, 2018
MAC Encore Performance - Head horizontal, 3D dimensions (3DS) en  13.5 MB May 18, 2018
Compliances
MAC Encore Performance - EU Declaration of Conformity   422 KB May 22, 2018
MAC Encore Performance - EU Declaration of Conformity en  446 KB May 18, 2018
MAC Encore Performance - Déclaration de Conformité Européenne fr  503 KB May 18, 2018
MAC Encore Series - ETL Listing Verification   380 KB May 22, 2018
Software
MAC Encore Performance Firmware 1.4.0  en  506 KB Mar 05, 2019
MAC Encore Performance Firmware 1.5.0    510 KB Jun 14, 2019
Service Notes
3D Partsfinder - Opening using Solid Works Composer Player   814 KB Oct 01, 2019
