Exterior Linear RGBW Cove

Larger Images

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

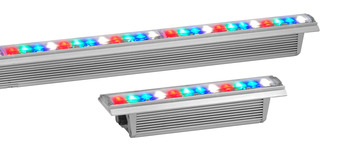

Exterior™ Linear 1200 Cove RGBW and Exterior™ Linear 300 Cove RGBW feature superb color mixing and a uniform light distribution at a beam angle of 120°, suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures

The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

  • Linear LED fixture with high output color mixing
  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply

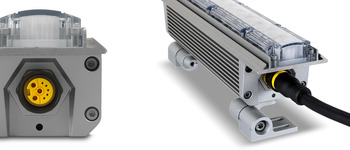

  • Easy infrastructure

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

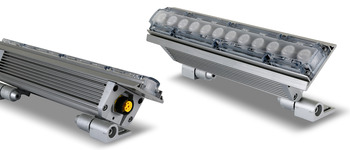

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

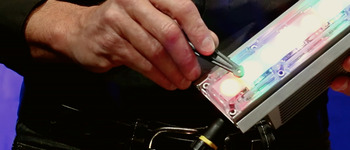

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Narrow beam control

    Dynamic color mixing using discreet Red, Green, Blue and neutral White Cree XP-E2 LEDs. This version offers the most narrow beam angle configuration and optimum brightness for large scale graze lighting applications.

Easy infrastructure

The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

Flexible installation

The hinged mounting bracket allows for flexible installation

Sophisticated control

The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

Narrow beam control

Dynamic color mixing using discreet Red, Green, Blue and neutral White Cree XP-E2 LEDs. This version offers the most narrow beam angle configuration and optimum brightness for large scale graze lighting applications.

Videos

Exterior Linear Product Demonstration



Features

  • Wide spread and uniform color mixing.
  • Very low power consumption (max 20 W/ft).
  • No extra control boxes required – connects directly to line voltage and DMX.
  • Internal power and control (DMX, RDM and magnetic tool).
  • Super rugged IP66 housing.
  • 0–100% intensity control.

Tech Specs

Physical300 series (1 ft.) fixturesLength: 305 mm (12.0 in.)Width: 72 mm (2.8 in.)Height: 95 mm (3.8 in.) including bracketWeight: 1.6 kg (3.6 lbs.)1200 series (4 ft.) fixturesLength: 1219 mm (48.0 in.)Width: 72 mm (2.8 in.)Height: 95 mm (3.8 in.) including bracketWeight: 6.4 kg (14.2 lbs.)
Dynamic EffectsIntensity: 0 - 100%Color mixing: RGBW
Control and ProgrammingControl systems: DMX, RDMControl resolution: 8-bit DMX control of each colorUser interface: Magnetic button to call up fixture status and test fixtureDMX compliance: USITT DMX512/1990 RDMRDM compliance: ANSI/ESTA E1.20
OpticsLight source: 3 W Cree XP-E2 LEDsBeam angle: 120°Minimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under test conditions
Photometric DataExterior Linear 300 RGBW CoveTotal luminous output: 874 lumensRed output: 134 lumensGreen output: 296 lumensBlue output: 42 lumensWhite output: 308 lumensExterior Linear 1200 RGBW CoveTotal luminous output: 3496 lumensRed output: 536 lumensGreen output: 1184 lumensBlue output: 168 lumensWhite output: 1232 lumens
ConstructionHousing: AluminumFront: Clear polycarbonateProtection rating: IP66IK rating: IK08Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)RoHS compliant
InstallationOrientation: AnyMinimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
ConnectionsPower/data in/thru: 8-pin custom connectors
ElectricalAC power: 100 -277 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modeMaximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.)Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.)Typical half-cycle RMS inrush current: 300 models 0.3 A, 1200 models 0.7 ASurge protection: 4 KV
Typical Power and Current100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)Minimum ambient temperature (Ta min.): -30° C (-22° F)Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot
ApprovalsEU Safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3US safety (pending): ANSI/UL 1598US EMC: 47 CFR Part 15 Class BCanadian safety (pending): CSA C22.2 No. 250.0Australia/NZ (pending): RCM

AccessoriesMagnetic Test Tool, set of 10: P/N 91610139OpticalExterior Linear 300 Glare Shield, set of 4: P/N 91611752Exterior Linear 1200 Glare Shield, set of 4: P/N 91611753CablesPower + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765End Termination Cap for power + data link: P/N 91611766
Ordering InformationExterior Linear 300 RGBW Cove: P/N 90356976Exterior Linear 1200 RGBW Cove: P/N 90356979

Specifications

  • Physical 300 series (1 ft.) fixtures:

    Length: 305 mm (12.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 1.6 kg (3.6 lbs.)

    1200 series (1 ft.) fixtures:

    Length: 1219 mm (48.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 6.4 kg (14.2 lbs.)

    Dynamic Effects Color mixing: RGBW Intensity: 0 - 100% Control and Programming Control systems: DMX, RDM Control resolution: 8-bit DMX control of each color User interface: Magnetic button to call up fixture status and test fixture DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20 Optics Light source: Quad-color OSRAM Ostar Beam angle: 105° Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under test conditions Photometric Data Exterior Linear 300 RGBW Cove:

    Total luminous output: 874 lumens
    Red output: 134 lumens
    Green output: 296 lumens
    Blue output: 42 lumens
    White output: 308 lumens

    Exterior Linear 1200 RGBW Cove:

    Total luminous output: 3496 lumens
    Red output: 536 lumens
    Green output: 1184 lumens
    Blue output: 168 lumens
    White output: 1232 lumens

    Construction Housing: Aluminum Front: Clear polycarbonate with diffuser Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) RoHS compliant Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
  • Connections Power/data in/thru: 8-pin custom connectors Electrical AC power: 100-277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.) Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.) Typical half-cycle RMS inrush current: 0.3 A, 1210 QUAD models 0.7 A Surge protection: 4 KV Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor. Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot Approvals EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 (pending) US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 (pending) Australia/NZ: RCM (pending) Accessories Magnetic Test Tool, set of 10: P/N 91610139 Optical:

    Exterior Linear 300 Glare Shield, set of 4: P/N 91611752
    Exterior Linear 1200 Glare Shield, set of 4: P/N 91611753

    Cables:

    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
    End Termination Cap for power + data link: P/N 91611766

    Ordering Information Exterior Linear 300 RGBW COVE: P/N 90356976 Exterior Linear 1200 RGBW COVE: P/N 90356979

Downloads

  Version Language Size Uploaded
Specifications
Exterior Linear Cables en  899 KB May 23, 2018
Exterior Linear Cove Series - Photometrics files en  219 KB Sep 29, 2017
Exterior Linear RGBW Spec Sheet-English en  511 KB Feb 27, 2019
Manuals
Exterior Linear Series - User Manual en  2.61 MB May 02, 2018
Illustrations
Exterior Linear 1200 RGBW 1220 CTC Cove–2D dimensions (DWG)     2.23 MB Jan 16, 2019
Exterior Linear 300 RGBW 320 CTC Cove–2D dimensions (DWG)     1.46 MB Jan 16, 2019
Exterior Linear 1200 RGBW 1220 CTC Cove–2D dimensions (PDF)     279 KB Jan 16, 2019
Exterior Linear 300 RGBW 320 CTC Cove–2D dimensions (PDF)     194 KB Jan 16, 2019
3D Symbols
Exterior Linear 1200 Cove Series 3D (DWG) en  7.02 MB Oct 21, 2015
Exterior Linear 1200 Cove Series 3D (DXF) en  80.7 MB Oct 21, 2015
Exterior Linear 300 Cove Series 3D (DWG) en  1020 KB Oct 21, 2015
Exterior Linear 300 Cove Series 3D (DXF) en  10.2 MB Oct 21, 2015
Cad Drawings
Vectorworks Symbols 2.5  en  110 MB Mar 27, 2018
Compliances
Exterior Linear Series - Product Verification and Reliability Report   484 KB Mar 16, 2018
Exterior Linear Graze Series and Cove Series - ETL Listing Verification   476 KB Jan 26, 2017
Exterior Linear Graze and Cove Series - Déclaration de Conformité Européenne fr  649 KB Mar 20, 2018
Exterior Linear Graze and Cove Series - EU Declaration of Conformity en  556 KB Mar 20, 2018
Software
Exterior Linear Series Firmware       Jan 23, 2019
Service Notes
Exterior products - Performing a vacuum test - Tech note en  1.9 MB May 01, 2017
