Imager Series (discontinued)

Larger Images

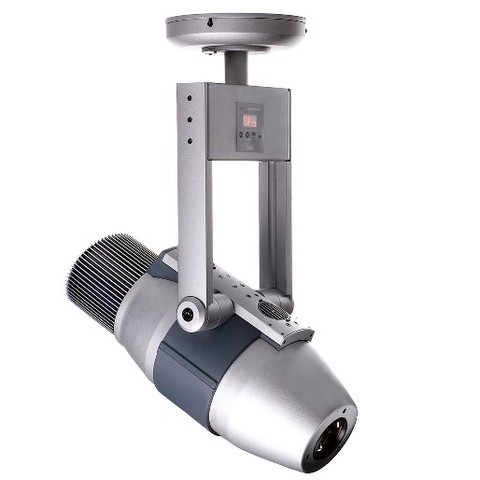

The Imager is a high quality image projector with dynamic movement capability designed for high-resolution projection of patterns, images, logos and messages. An excellent solution for retail, museums, clubs, restaurants, and bars, the Imager is available as either a single image projector or in a four-image version.

Features

  • 250 W metal halide lamp
  • Option of static color filters
  • Choice of 15°, 23° and 32° lens
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • Motorized focus
  • Optional mirror arm with 235° pan & 65° tilt
  • DMX, master/slave, on board
  • Choice of 1- or 4-gobo models
  • Replaceable gobo(s) with rotation and indexing

Tech Specs

Physical Length: 488 mm, luminaire housing without mirror arm Width: 242 mm across mounting yoke Height: 726 mm, 929 mm with mirror arm, at max. extension, incl. J-box Weight: Imager 01 DMX 9.7 kg, Imager 04 DMX 9.9 kg
Dynamic Effects Gobo wheel: One rotating gobo (Imager 01 DMX), 4 rotating gobos (Imager 04 DMX) Gobo rotation: Indexable and continuous Dimmer: 0 - 100% Focus: 2 m to infinity Pan: 235° (with optional scanning mirror) Tilt: 65° (with optional scanning mirror)
Control and Programming Control options: DMX, stand-alone, synchronized (master/slave) DMX channels: 9/12 Stand-alone trigger options: Internal timer Stand-alone memory: 20 scenes Setting and addressing: Onboard control panel with 3-digit display Gobo indexing resolution: 8- and 16-bit Pan/tilt resolution: 8- and 16-bit Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 250 W metal halide Approved lamps: Philips MSD 250/2, Osram HSD 250/78, Osram HSD 250/60, Osram HSD 250/80 Socket: GY 9.5 Control: Automatic and/or remote on/off
Construction Housing: Aluminum and plastic Protection rating: IP20
Gobos Material: Metal or glass Size: D Outside diameter: 53.3 mm +0/- 0.3 mm Maximum image diameter: 40 mm Maximum thickness: 2 mm Image orientation: True on coated side (scanning mirror unit not fitted) Image orientation: Reversed on coated side (scanning mirror unit fitted)
Installation Required installation hardware: Imager Base Orientation: Ceiling mount Minimum distance to combustible materials: 1 m Minimum distance to illuminated surfaces: 0.5 m Max. cable separation between Base and J-Box: 16 m
Connections Lamp power (Base to J-Box): 5 x 1 mm2 (18 AWG) cable, ordered separately Effects power (Base to J-Box): 4 x 0.75 mm2 (18 AWG) cable, ordered separately DMX data in/out (J-Box to data link): RJ-45 sockets
Electrical AC power: Supplied via Base unit that accepts 100/120/208/230/250 V, 50/60 Hz
Typical Power and Current 100 V, 50 Hz: 325 W, 3.8 A, PF 0.860 100 V, 60 Hz: 323 W, 3.4 A, PF 0.946 120 V, 60 Hz: 323 W, 2.8 A, PF 0.962 208 V, 60 Hz: 329 W, 1.7 A, PF 0.928 230 V, 50 Hz: 338 W, 1.6 A, PF 0.910 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 100° C Total heat dissipation (calculated, +/- 10%): 1160 BTU/hr.
Approvals EU safety: EN 60598-2-5 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE
Included Items Osram HSD 250/80 lamp: 97010116 DMX termination plug, RJ-45: 91613028
Accessories Wide-angle 32° kit: 91611075 Narrow-angle 15° kit: 91611074 Slide projection kit: 91611076
Spare Parts Air filter: 91611079 Osram HSD 250/80 lamp: 97010116
Ordering Information Imager 01 DMX with J-box: 90540110 Imager 04 DMX with J-box: 90540010 Scanning mirror unit for Imager: 91611069 Imager Base (required item): 90721000

Downloads

Filename Version Language Size Uploaded
Software
Imager Series Main CPU 2.1.0    57.6 KB May 22, 2018
Manuals
Manuel d´utilisation fr  1.13 MB Aug 02, 2004
Bedienungsanleitung de  1.25 MB Nov 04, 2004
User manual en  1.24 MB Mar 03, 2005
Imager Base Bedienungsanleitung de  202 KB Mar 29, 2004
Imager Base user manual en  197 KB Feb 24, 2004
Imager Base Manuel d´utilisation fr  242 KB Aug 02, 2004
Specifications
Imager Base Technische Daten de  10.6 KB Mar 29, 2004
SP_Imager_C_EN en  41.1 KB Sep 26, 2004
Technische Daten de  433 KB Jan 13, 2003
SP_Imager_EN_A en  46.1 KB May 17, 2003
SP_Imager_EN_B en  10.9 KB Feb 24, 2004
Caractéristiques fr  37.6 KB Aug 02, 2004
Imager Base specifications en  8.57 KB Feb 24, 2004
Imager Base caractéristiques fr  26.4 KB Aug 02, 2004
Illustrations
Dimensions en  80.3 KB Sep 29, 2003
DIMS_Imager_A_dxf     237 KB Sep 29, 2003
IR Remote Dimensions en  84.9 KB Feb 29, 2004
IR Remote Dimensions (DXF) en  237 KB Feb 29, 2004
Imager J-box installation specs en  116 KB Mar 18, 2004
Imager J-box installation specs (dxf) en  322 KB Mar 18, 2004
Hints And Tips
"Boot Sector" Versus "Boot Mode" en    Oct 19, 2003
Discharge Lighting Shutdown Guidelines en    Mar 16, 2008
Return to default settings when updating software en    Sep 26, 2005
RJ-45 Connectors en    Nov 30, 2003
Compliances
EU Declaration of Conformity es  48.2 KB Dec 02, 2004
Instructions
CPFC Capacitor Replacement Recommendation en    Oct 21, 2008
Focus Spindle Lubrication en    Nov 23, 2003
Imager moving-mirror installation note en  143 KB May 25, 2003
Update bug in 1.5.0 en    Oct 01, 2003
Performances
Photometric Data en    May 20, 2007
Image projection size calculator (metric) en  24 KB May 27, 2003
