Length:
452 mm (17.8 in.)
Width:
480 mm (18.9 in.) across yoke
Height:
740 mm (29.2 in.) maximum
731 mm (28.8 in.) head straight up
Weight:
31 kg (68.4 lbs.)
Minimum center-to-center distance in side-by-side installation:
700 mm (27.6 in.)
Pre-programmed effects:
Two ranges of FX, independent or synchronized/combined
Color mixing:
CMY, independently variable 0 - 100%
Color wheel:
6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Gobo animation:
Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction
Rotating gobo wheel:
5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
Iris:
Variable 0 - 100%
Framing:
Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and position
Frost:
Variable 0 - 100%
Dimmer/shutter:
0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Color temperature control:
Variable 6000 - 2700 K
Dimming options:
Choice of four dimming curves
Zoom:
Motorized
Pan:
540°
Tilt:
268°
Position correction system:
Absolute position monitoring
Focus:
Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
DMX channels:
38
16-bit control:
Dimming, rotating gobos, zoom, focus, pan and tilt
Movement control options:
Tracking and vector
Setting and addressing:
Control panel with backlit graphic display and jog wheel or via DMX
Fixture Identification:
User-settable ID number
DMX compliance:
USITT DMX512-A
RDM compliance:
ANSI/ESTA E1.20
Transceiver:
Opto-isolated RS-485
Fixture software update:
USB memory device or over DMX link
Zoom range:
12° - 48° one-tenth peak (1:4)

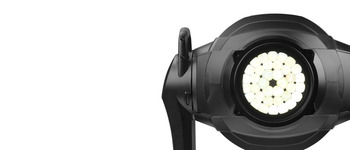

Light source:
468 W custom Martin LED engine
Minimum LED lifetime:
50,000 hours (to >80% luminous output)*
*Figure obtained under manufacturer's test conditions
Light engine luminous output:
≥ 39,400 lumens
Fixture luminous output:
11,600 lumens
CRI (Color Rendering Index) :
>80
CQS (Color Quality Scale):
>80
TM-30 Rf (IES TM-30-15 Fidelity Index):
>80
TM-30 Rg (IES TM-30-15 Gamut Index):
>95
TLCI (Television Lighting Consistency Index):
>70
CCT:
6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Housing:
High-impact flame-retardant thermoplastic
Color:
Black
Protection rating:
IP20
Mounting points:
4 pairs of 1/4-turn locks
Location:
Dry location only, must be fastened to surface or structure
Orientation:
Any
Minimum distance to combustible materials:
0.2 m (8 in.)
Minimum distance to illuminated surfaces:
2.0 m (6.6 ft.)
AC power input:
Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out:
5-pin locking XLR
AC power:
120-240 V nominal, 50/60 Hz
Power Consumption:
64 W, all effects static, zero light output
Power supply unit:
Auto-ranging electronic switch-mode
Half-cycle RMS inrush current at 230 V, 50 Hz:
10.3 A
120 V, 60 Hz:
5.0 A, 596 W, PF 0.998
208 V, 60 Hz:
2.9 A, 581 W, PF 0.988
230 V, 50 Hz:
2.6 A, 580 W, PF 0.981
240 V, 50 Hz:
2.2 A, 585 W, PF 0.979
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
Cooling:
Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.):
40° C (104° F)
Minimum ambient temperature (Ta min.):
5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient:
75° C (167° F)
Total heat dissipation (calculated, +/- 10%):
2000 BTU/hr.
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
Efficacy (max output):
20 lm/w
LWR*:
297 lm/kg (169 lm/lb)
LWR = Lumen-to-Weight Ratio
EU safety:
EN 60598-2-17, EN 62471, EN62493
EU EMC:
EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety:
UL 1573
US EMC:
FCC Part 15 Class A
Canadian safety:
CSA C22.2 No. E598-2-17
Canadian EMC:
ICES-003 Class A
Australia/NZ:
RCM
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Martin Companion Cable:
P/N 91616091
Martin Companion Software Suite (including firmware uploader):
Free download from www.martin.com
Gelframe MAC Encore:
P/N 91001000
Set of Followspot Handles MAC Encore:
P/N 91001001HU
Heavy Frost Assy MAC Encore Performance:
P/N 91001002HU
SIP Packaging MAC Encore Family:
P/N 91616115HU
Static GOBO Wheel MAC Encore Performance:
P/N 91001003
Top Hat MAC Encore Performance:
P/N 91001004
Cables and connectors:
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
*Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Flightcase:
Two-unit Flightcase for MAC Encore™*: P/N 91515048
MAC Encore™ Performance CLD EPS (in cardboard box, polystyrene packaging):
P/N 90234000
MAC Encore™ Performance CLD SIP (in cardboard box with SIP foam flightcase insert):
P/N 90234005
MAC Encore™ Performance CLD, white finish, EPS (in cardboard box, polystyrene packaging):
P/N 90234010HU
