MAC Encore Performance WRM

Larger Images

MAC Encore™ Performance WRM integrates cutting-edge LED technology with a proprietary and innovative light engine carefully engineered to generate pristine, full spectrum light with ultra-high color rendition. The feature-packed moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source. Its advanced color mixing system delivers the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Moreover, it offers a fully variable color correction to blue/daylight.

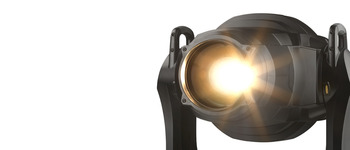

  • Unparalleled 3000 K warm white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratio

    Designed for real life applications, its pure white 3000 K CCT offers the most comprehensive spectrum available to date in an LED source moving head.  High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.


    This is the most silent, hard edge moving head we’ve ever built. All motorized effect operations—cooling fans, framing shutters, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Performance WRM is still a stealth operator.


    Precise color temperature control with variable color temperature correction (CTB) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.


    A flat field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Ultra-fast, precise, and super silent, 1:4 zoom with auto-linked focus allows for both high and low ceiling usage that spans from tight beams to wide coverage.


    Five rotating glass gobos offer designers a great choice of patterns for projection and mid-air effects and the patented Animotion™ FX system adds 3D effect options. Slim focal separation enables you to run gobos simultaneously with animation wheel and framing, while its precise and tight iris allows you to define crisp and sharp beams.


    With its best-in-class compact design and premium build-quality, MAC Encore Performance WRM lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (31 kg/68 lbs.).

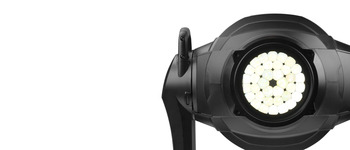

  • Pure white LED engine with 3000 K CCT
  • A flat field without color temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.

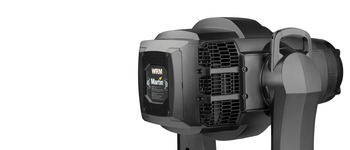

  • Ultra-low noise—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from light and smooth pastel shades to rich, saturated primaries.
  • Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • 1:4 zoom—precise and fast, silent zoom with auto- linked focus.
  • Four framing shutter blades with individual +/- 30° adjustment and entire system rotation of +/- 55° allow for high-precision cue repeats.
  • Five rotating glass gobos with next to zero focal separation from the framing system.
  • Animation wheel with continuous multi-directional rotation and indexing with variable angle, speed and direction.
  • Animotion™ FX System—internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Precise and tight iris with adjustable dynamic effects.
  • Soft frost—a light frost that leaves gobo artwork and framed images visible with a beautiful soft edge.
  • Heavy frost available as an optional accessory.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 mm x W: 480 mm x H: 733 mm (L: 17.8 in x W: 18.9 in x H: 28.9 in).
  • Low weight—31 kg/68 lbs.
  • Foam rubber (SiP) flightcase insert for secure shipment.

Tech Specs

PhysicalLength: 452 mm (17.8 in.)Width (across yoke): 480 mm (18.9 in.)Height (maximum): 740 mm (29.2 in.)Height (head straight up): 731 mm (28.8 in.)Weight: 31 kg (68.4 lbs.)Minimum center-to-center distance in side-by-side installation: 700 mm (27.6 in.)
Dynamic EffectsColor mixing: CMY, independently variable 0 - 100%Color temperature control: Variable 3000 - 7000 KColor wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random colorRotating gobo wheel: 5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shakeGobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and directionFraming: Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and positionIris: Variable 0 - 100%Frost: Variable 0 - 100%Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackoutDimming options: Choice of four dimming curvesPre-programmed effects: Two ranges of FX, independent or synchronized/combinedFocus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinityZoom: MotorizedPan: 540°Tilt: 268°Position correction system: Absolute position monitoring
Control and ProgrammingDMX channels: 38Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX16-bit control: Dimming, rotating gobos, zoom, focus, pan and tiltMovement control options: Tracking and vectorFixture identification: User-settable ID numberDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: Opto-isolated RS-485Fixture software update: USB memory device or over DMX link
OpticsLight source: 3000 K white LEDsTotal LED engine power: 468 WMinimum LED lifetime: 50 000 hours (to >80% luminous output)*Zoom range: 12° - 48° one-tenth peak (1:4)*Figure obtained under manufacturer's test conditions
Photometric DataLight engine luminous output: ≥ 31 500 lumensFixture luminous output: 9200 lumensCRI (Color Rendering Index): >90CQS (Color Quality Scale): >90TM-30 Rf (IES TM-30-15 Fidelity Index): >90TM-30 Rg (IES TM-30-15 Gamut Index): >98TLCI (Television Lighting Consistency Index): >90
ConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20
InstallationMounting points: 4 pairs of 1/4-turn locksLocation: Dry location only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 0.2 m (8 in.)Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
ConnectionsAC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)DMX and RDM data in/out: 5-pin locking XLR
ElectricalAC power: 120-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modePower consumption, all effects static, zero light output:64 WHalf-cycle RMS inrush curent at 230 V, 50 Hz: 10.3 A
Typical Power and Current120 V, 60 Hz: 5.0 A, 596 W, PF 0.998208 V, 60 Hz: 2.9 A, 581 W, PF 0.988230 V, 50 Hz: 2.6 A, 580 W, PF 0.981240 V, 50 Hz: 2.2 A, 585 W, PF 0.979Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity.Allow for a deviation of +/- 10%.PF = power factor
ThermalCooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)Maximum surface temperature, steady state, Ta=40° C:75° C (167° F)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
ApprovalsEU safety: EN 60598-2-17, EN 62471, EN62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA C22.2 No. E598-2-17Canadian EMC: ICES-003 Class AAustralia/NZ: RCM
Included ItemsTwo omega brackets with 1/4 turn fasteners for rigging clamp attachment
AccessoriesGelframe MAC Encore: P/N 91001000Set of Followspot Handles MAC Encore: P/N 91001001HUHeavy Frost Assy MAC Encore Performance: P/N 91001002HUSIP Packaging MAC Encore Family: P/N 91616115HUStatic GOBO Wheel MAC Encore Performance: P/N 91001003Top Hat MAC Encore Performance: P/N 91001004Cables and connectorsPower Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789Installation hardwareG-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Half-coupler Clamp: P/N 91602005Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007FlightcasesTwo-unit Flightcase for MAC Encore™*: P/N 91515048*Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
Related ItemsMartin® M-PC 2U incl. Martin® M-DMX USB-DMX Interface : P/N 90737070Martin® M-PC Pro-64 / LJ-4 Controller Kit incl. Martin® M-DMX USB-DMX Interface: P/N 90737060Martin® RDM 5.5 Splitter: P/N 90758150
Ordering InformationMAC Encore™ Performance WRM EPS (in cardboard box, polystyrene packaging): P/N 90234015MAC Encore™ Performance WRM SIP (in cardboard box with SIP foam flightcase insert): P/N 90234016MAC Encore™ Performance WRM, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90234020HU
