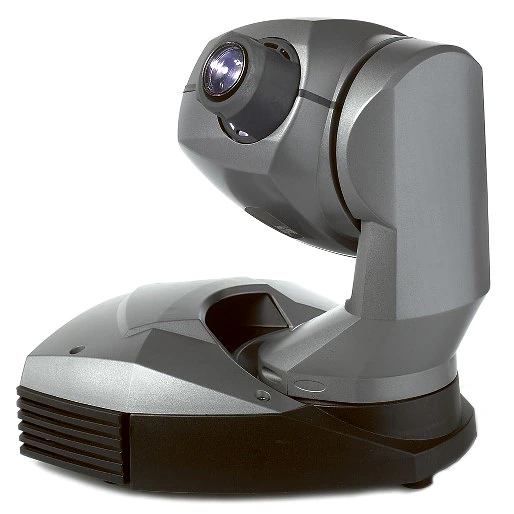

MiniMAC Maestro er designet til projektion af høj kvalitet af mønstre, billeder, logoer, tekst og beskeder og er et ultrakompakt automatiseret movinghead, der er brugbart i mange forskellige miljøer.
Større billeder
Funktioner
- 150W CDM discharge lamp
- 19° focused beam angle
- 4 replaceable pattern slots
- Convenient ¼ turn fasteners
- Dichroic color slot
- DMX, host/client, on board, remote controllable
- High quality 5-element focus
- Modular Construction for easy maintenance
- PAN/TILT range of 540°/270°
- Separate shutter
Flere detaljer
Physical Length: 390 mm Width: 316 mm Height: 415 mm Weight: 14 kg
Dynamic Effects Gobo wheel: 4 rotating slots + open Gobo rotation: Indexable and continuous Shutter: Variable speed strobe effects Focus: 1 m to infinity Pan: 540° in 0.013° steps Tilt: 270° in 0.007° steps
Control and Programming Control options: DMX, infrared remote control, stand-alone, host/client DMX channels: 6/8/9/11 Stand-alone trigger options: Internal timer Stand-alone memory: 20 scenes Setting and addressing: Onboard control panel with 3-digit display Gobo indexing resolution: 8- and 16-bit Pan/tilt resolution: 8- and 16-bit Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/T 150 Socket: G12 Control: Automatic and/or remote on/off
Construction Housing: UV-resistant fiber-reinforced composite Finish: Polyurethane-coated Color(s): White, titanium Protection rating: IP20
Gobos Outside diameter: 37.5 mm +0/- 0.3 mm Maximum image diameter: 30 mm Maximum thickness: 3 mm Image orientation: True on coated side
Installation Orientation: Any Minimum distance to combustible materials: 0.3 m Minimum distance to illuminated surfaces: 0.3 m Minimum clearance around fan and air vents: 0.1 m Minimum center-to-center installation distance: 316 mm
Connections Power connection: 3-pin IEC male socket Data connection: 3-pin locking XLR
Electrical AC power: 100/120/210/230/250 V, 50/60 Hz
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 55° C Cooling: Forced air cooling system
Included Items Philips CDM-SA/T 150 W lamp: 3 m power cable, 3-pin IEC: 5 m data cable, 3-pin XLR: Attachment bracket for mounting clamp: Safety cable eye bolt:
Accessories Remote control: 90760010 Infrared receiver: 91611027 Pantograph, adjustable 10-60 cm: 91602006 Flush mount bracket: 91606009
Ordering Information MiniMAC Maestro in cardboard box, titanium: 90230600 MiniMAC Maestro in cardboard box, white: 90230630
