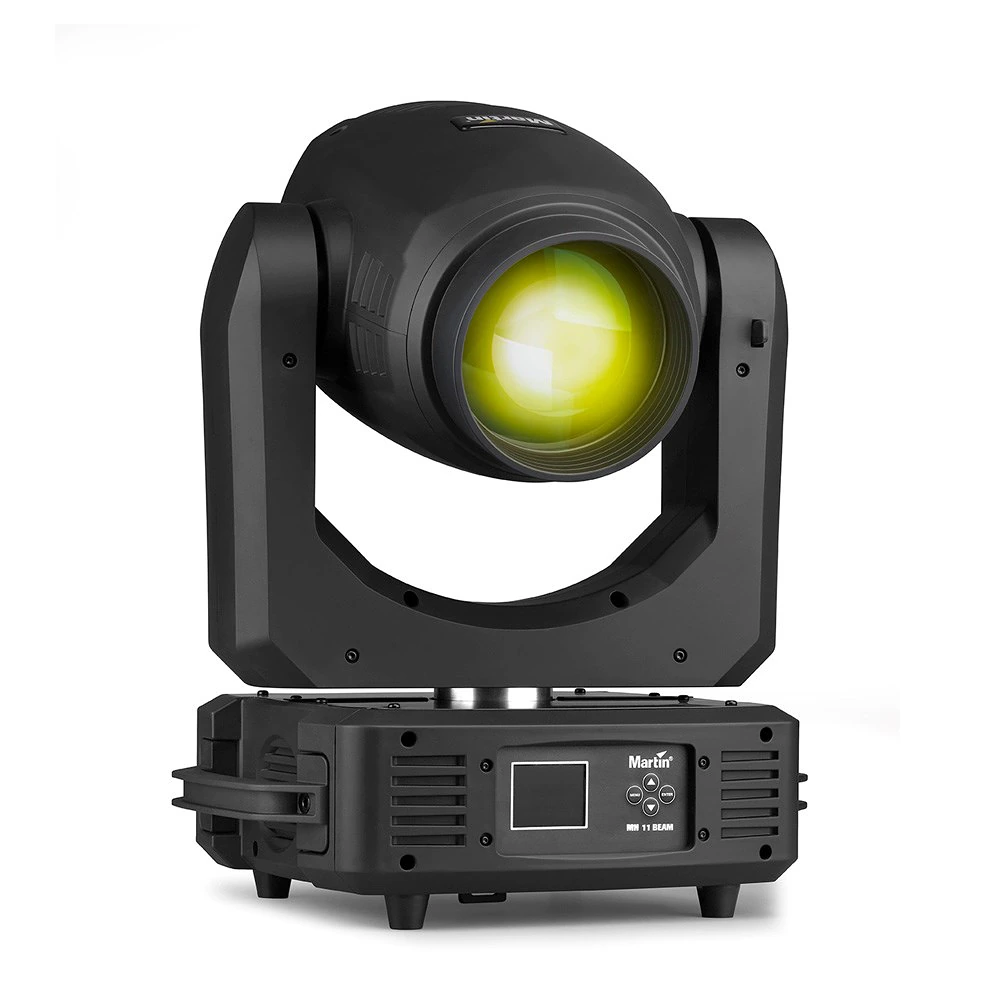

Martin RUSH MH 11 Beam

Større billeder

Martin RUSH MH 11 Beam er en højintensitets-strålewerkslampe designet til avancerede installationer og leje-applikationer. RUSH MH 11 Beam benytter den samme 250W Platinum 11R lampe som findes i Martin RUSH MH 7 Hybrid, men med raffinerede stråleoptikker, der giver fremragende intensitet og skarpe mid-air-effekter i en ren stråle-fixture. Den deler også samme farvetemperatur og farvepalet med RUSH MH 7 og MAC Axiom, hvilket muliggør fremragende farvetilpasning i en omkostningseffektiv ren stråle-fixture.

Højintensitetslampen kombineret med klasseledende optik i MH 11 gør det muligt for fixturet at opnå skarpe, højeffekt stråleeffekter med en super-snæver 2,6 graders strålevinkel. Fixturet kan producere en række komplekse og præcise mid-air-looks ved hjælp af 8 roterende og indexerbare gobos og et 8-facet prisme. Fixturet har 13 valgbare farver samt frost og motoriseret fokus.

Fixturet er perfekt til avancerede live venue-installationer såsom nightlife, kirker og krydstogtskibe. Det har også et robust industrielt design til brug i turnering-applikationer, hvor Martin RUSH MH 7 og MAC Axiom fixtures benyttes.

Optik i klasse-topklasse for længere rækkevidde og større indvirkning
Funktionsrig med masser af effekter
Robust design bygget til vejens tider

Funktioner

Kraftfuld 250 W Philips Platinum 11R lampe
Super stram 2,6° strålevinkel
8 roterende og indekserbare gobos
Ultraskarp, smal langdistance-stråle
Mid-air-effekter
10 valgbare farver + CTO, CTB, UV
Frostvirkningseffekt
8-facet cirkulært prisme
Motoriseret fokus
3 + 5 pin XLR DMX-forbindelse
Neutrik TRUE 1 ind- og gennemgangsstik
Kompakt størrelse—L: 364 x B: 305 x H: 581 mm / L: 14,3 x B: 12,0 x H: 22,9 in
Lavt vægt—19,5 kg/43 lbs.

Specifikationer

Physical Length: 364 mm (14.4 in.) Width: 305 mm (12.0 in.) Height: 581 mm (22.9 in.) Weight: 19.5 kg (43 lbs.)

Dynamic Effects Color wheel: 13 colors (incl. CTO and UV) + open, rotation with variable direction and speed Rotating gobo wheel: 8 gobos + open, wheel rotation, gobo indexing, rotation and shake Prism: 8-facet circular, indexing, rotation with variable direction and speed Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 660° Tilt: 250° Pan and tilt speed: Adjustable via onboard control panel and DMX Dimming: 0-100%, coarse and fine control Focus: Motorized, 16-bit coarse and fine control Frost

Control and Programming Control options: DMX, stand-alone, RDM Setting and addressing: Control panel with backlit LCD display DMX channels: 18 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI E1.20

Optics Cutoff beam angle: 2.6°

Lamp Color temperature : 6800 K +/- 250 K CRI (Color rendering index): 81 Average lifetime: 2000 hours* Approved lamp: Philips MSD Platinum 11R 250 W *Under manufacturer's test conditions.

Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20

Gobos Interchangeable rotating gobos:
Permitted material: Steel or aluminum
Diameter: 14 mm +/-0.2 mm (0.55 in. +/-0.008 in.)
Maximum image diameter: 13 mm (0.51 in.)
Gobo thickness: 0.8 mm (0.031–0.032 in.)

Installation Mounting points: Two quarter-turn omega brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 200 mm (8 in.) Minimum distance to illuminated surfaces: 10 m (33 ft.) Minimum clearance around fan and air vents: 200 mm (8 in.)
Connections AC power in, thru: Neutrik TRUE1 DMX data in, thru: 3-pin and 5-pin locking XLR

Electrical AC power: 100-120 / 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode

Typical Power and Current 120 V, 60 Hz: 380 W, 3.5 A, PF 0.9 230 V, 50 Hz: 370 W, 1.7 A, PF 0.9 Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.

Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)

Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)

Included Items
Philips MSD Platinum 11R 250 W lamp (installed)
Power cable, 1.5 m (4.9 ft.), without mains plug
Two Omega clamp attachment brackets with 1/4-turn fasteners

Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com

Accessories Philips MSD Platinum 11R 250 W lamp: P/N 50481205 Cables, 16 A, for connection to power in chains:
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Cables, 16 A, for relaying power in chains:
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Connectors:
Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 9162007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information RUSH® MH 11 Beam in cardboard box: P/N 90280130
