Exterior Inground 400 Series

Inground mounted color mixing wash lights

Larger Images

The Exterior™ Inground 400 series is a range of uncomplicated, easy-to-use color-changing LED luminaires. Perfect for installations with visible light sources, the Exterior Inground series combines the benefits of dynamic light and discreet installation. The recessed housing can be made to fit any type of surface with a trim ring available in beveled and flush-mount versions, for discreet installation both day and night.

The series is available in various configurations. The Exterior Inground 400™ has a narrow beam. The Exterior Inground 410™ blends the output of its RGBW LED sources in its lenses, delivering perfectly pre-mixed colors. And the Exterior Inground 420™ gives variable color temperature white light from 2700 to 6500 K.

  • Bright, efficient in-ground fixture with full LED color mixing
  • Advanced optical performance with uniform distribution of light and color
  • Durable, low-maintenance construction
  • Configurable design

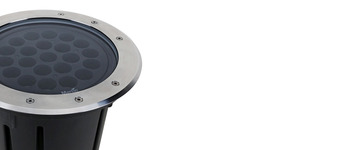

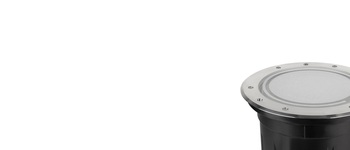

    The Exterior Inground 400 features a 19 mm tempered glass cover which is available either as clear glass or with an anti-skid surface for use in pedestrian areas. The top ring is available in flush or beveled mounting options and the entire installation can be carried out without breaking the factory seal.

  • Sturdy, waterproof construction

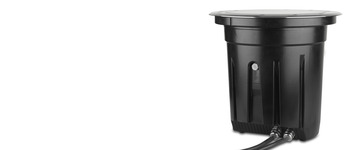

    Cable glands and a separate connections compartment give a sealed unit with no water ingress via the factory-mounted DMX and power cables. The Inground 400 also features a Gore-Tex vent to equalize temperature-generated pressure fluctuation.

  • Clever status indication

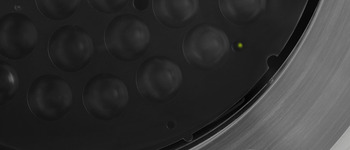

    The Exterior Inground 400’s intuitive LED status indicators allow for fast, convenient power and DMX status readings. Remote Device Management (RDM) allows more detailed readouts.

  • Built-in glare shield

    A built-in glare shield effectively reduces glare from the LEDs, making the Exterior Inground 400 less distracting for pedestrians and leaving only the effect lighting to be enjoyed.

  • 4000 kg drive-over rating

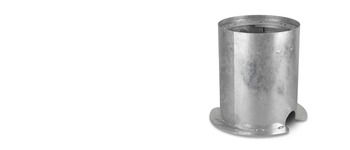

    The hot-dip galvanized steel installation sleeve provides a heavy-duty foundation for the Exterior Inground 400 that allows for installation in vehicle traffic areas.

Configurable design

The Exterior Inground 400 features a 19 mm tempered glass cover which is available either as clear glass or with an anti-skid surface for use in pedestrian areas. The top ring is available in flush or beveled mounting options and the entire installation can be carried out without breaking the factory seal.

Sturdy, waterproof construction

Cable glands and a separate connections compartment give a sealed unit with no water ingress via the factory-mounted DMX and power cables. The Inground 400 also features a Gore-Tex vent to equalize temperature-generated pressure fluctuation.

Clever status indication

The Exterior Inground 400’s intuitive LED status indicators allow for fast, convenient power and DMX status readings. Remote Device Management (RDM) allows more detailed readouts.

Built-in glare shield

A built-in glare shield effectively reduces glare from the LEDs, making the Exterior Inground 400 less distracting for pedestrians and leaving only the effect lighting to be enjoyed.

4000 kg drive-over rating

The hot-dip galvanized steel installation sleeve provides a heavy-duty foundation for the Exterior Inground 400 that allows for installation in vehicle traffic areas.

Features

  • Choice of premixed RGBW, single-color RGBW or variable CT white LEDs
  • Built-in glare shield for high visual comfort
  • Flush-mount and beveled trim ring options for installation in any groundwork
  • Choice of five beam angle options
  • Remote control and configuration via DMX and RDM
  • Rugged drive-over IP67 housing

Specifications

  • Physical Top ring (trim ring):

    Flush-mount top ring outer diameter: 329 mm (13.0 in.)
    Flush-mount top ring thickness: 7 mm (0.3 in.)
    Beveled top ring outer diameter: 340 mm (13.4 in.)
    Beveled top ring thickness: 5 mm (0.2 in.)

    Installation Sleeve: Installation sleeve height: 400 mm (15.8 in.) Installation sleeve base flange external diameter: 416 mm (16.4 in.) Fixture:

    Height: 315 mm (12.4 in.)
    Outer diameter at top of fixture: 310 mm (12.2 in.)
    Weight: 14.7 kg (32.5 lbs.)

    Dynamic Effects All models: Intensity: 0 - 100% Exterior Inground 400 and 410: Color mixing: RGBW Exterior Inground 420: Color temperature control: 2700 K - 6500 K Control and Programming All Models:

    Control systems: DMX, RDM
    DMX addressing and fixture setup: RDM
    Fixture status monitoring: Multi-color status LED visible through top glass
    Firmware update: Serial upload via DMX link
    DMX compliance: USITT DMX512-A
    RDM compliance: ANSI/ESTA E1.20
    Receiver: RS-485

    Exterior Inground 400 and 410 : DMX channels: 3/4 Exterior Inground 420 : DMX channels: 2 Optics All models :

    LED manufacturer: Cree
    Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
    *Figure obtained under manufacturer's test conditions

    Exterior Inground 400 :

    Light source: R, G, B and W single-color LEDs
    Beam angle options
    Narrow diffuser: 10.5°
    Medium diffuser: 20°
    Wide diffuser: 41°
    Asymmetric diffuser: 52° x 12°
    Directional (8°): 67° x 24°
    Directional (20°): 69° x 24°

    Exterior Inground 410:

    Light source: RGBW quad-color LEDs
    Beam angle options
    Narrow diffuser: 22°
    Medium diffuser: 29°
    Wide diffuser: 50°
    Asymmetric diffuser: 59° x 25°
    Directional (8°): 76° x 33°
    Directional (20°): 79° x 33°

    Exterior Inground 420 :

    Light source: Warm (2700 K) and cool (6500 K) LEDs
    Beam angle options
    Narrow diffuser: 10.5°
    Medium diffuser: 20°
    Wide diffuser: 41°
    Asymmetric diffuser: 52° x 12°
    Directional (8°): 67° x 24°
    Directional (20°): 69° x 24°

    Photometric Data Exterior Inground 400 : Maximum luminous output: 5700 lumens Exterior Inground 410 : Maximum luminous output: 4800 lumens Exterior Inground 420 : Maximum luminous output: 6600 lumens Construction Fixture housing: Aluminum Color: Black Finish: Black powder coating over anodizing Trim ring (top ring): Stainless steel Protection rating: IP67 Front glass: 19 mm (0.8 in.) tempered glass (clear and anti-skid versions) Impact resistance: IK10 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Installation sleeve: Hot-dip galvanized steel Weight resistance (in installation sleeve with stable groundwork): 4000 kg (from vehicle tire for example) RoHS compliant Installation Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.) Installation method: Installation sleeve (ordered separately)
  • Connections Power connection: 1.8 m (5.9 ft.) cable tail without connector Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail Power and data cable entries: IP68/69 cable glands Electrical AC power: 100-277 V~ nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage Power Consumption: 11 W (steady state, all LEDs at zero intensity) Surge protection: 4 KV Typical Power and Current 120 V, 60 Hz: 1.3 A, 142 W, PF 0.99 230 V, 50 Hz: 0.7 A, 142 W, PF 0.97 Measurements made at nominal voltage. Allow for a deviation of +/- 10 %. Thermal Cooling: Conduction / convection Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-4° F), power must be maintained below 0° C (32° F) Maximum surface temperature, steady state, at 40° C ambient: 65° C (149° F) Total heat dissipation (calculated, +/- 10%): 490 BTU/hr. Approvals EU safety: EN60598-2-5 (EN60598-1), EN60598-2-13, EN62471, EN62493 EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C.22.2 No. 250 Australia/NZ: RCM Accessories Installation sleeve for Inground 400: P/N 91611841 Installation Lid for flush mount top ring installations: P/N 91616086 Installation Lid for beveled top ring installations: P/N 91616087 Please order Installation Sleeves separately from fixtures. Ordering Information Inground 4xx, new install: P/N 90507100HU Inground 4xx, replacement (for existing Inground 200 installations): P/N 90507150HU Inground 4xx, replacement (for existing Inground 200 installations), no top ring or top glass: P/N 90507110HU Products are ordered pre-configured by selecting from a range of options - see elsewhere on website or contact your Martin™ supplier.
