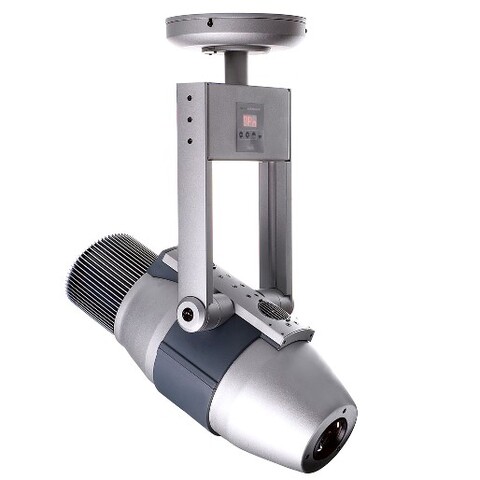

The Imager is a high quality image projector with dynamic movement capability designed for high-resolution projection of patterns, images, logos and messages. An excellent solution for retail, museums, clubs, restaurants, and bars, the Imager is available as either a single image projector or in a four-image version.

Features

  • 250 W metal halide lamp
  • Option of static color filters
  • Choice of 15°, 23° and 32° lens
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • Motorized focus
  • Optional mirror arm with 235° pan & 65° tilt
  • DMX, host/client, on board
  • Choice of 1- or 4-gobo models
  • Replaceable gobo(s) with rotation and indexing

Specifications

Physical Length: 488 mm, luminaire housing without mirror arm Width: 242 mm across mounting yoke Height: 726 mm, 929 mm with mirror arm, at max. extension, incl. J-box Weight: Imager 01 DMX 9.7 kg, Imager 04 DMX 9.9 kg
Dynamic Effects Gobo wheel: One rotating gobo (Imager 01 DMX), 4 rotating gobos (Imager 04 DMX) Gobo rotation: Indexable and continuous Dimmer: 0 - 100% Focus: 2 m to infinity Pan: 235° (with optional scanning mirror) Tilt: 65° (with optional scanning mirror)
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 9/12 Stand-alone trigger options: Internal timer Stand-alone memory: 20 scenes Setting and addressing: Onboard control panel with 3-digit display Gobo indexing resolution: 8- and 16-bit Pan/tilt resolution: 8- and 16-bit Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 250 W metal halide Approved lamps: Philips MSD 250/2, Osram HSD 250/78, Osram HSD 250/60, Osram HSD 250/80 Socket: GY 9.5 Control: Automatic and/or remote on/off
Construction Housing: Aluminum and plastic Protection rating: IP20
Gobos Material: Metal or glass Size: D Outside diameter: 53.3 mm +0/- 0.3 mm Maximum image diameter: 40 mm Maximum thickness: 2 mm Image orientation: True on coated side (scanning mirror unit not fitted) Image orientation: Reversed on coated side (scanning mirror unit fitted)
Installation Required installation hardware: Imager Base Orientation: Ceiling mount Minimum distance to combustible materials: 1 m Minimum distance to illuminated surfaces: 0.5 m Max. cable separation between Base and J-Box: 16 m
Connections Lamp power (Base to J-Box): 5 x 1 mm2 (18 AWG) cable, ordered separately Effects power (Base to J-Box): 4 x 0.75 mm2 (18 AWG) cable, ordered separately DMX data in/out (J-Box to data link): RJ-45 sockets
Electrical AC power: Supplied via Base unit that accepts 100/120/208/230/250 V, 50/60 Hz
Typical Power and Current 100 V, 50 Hz: 325 W, 3.8 A, PF 0.860 100 V, 60 Hz: 323 W, 3.4 A, PF 0.946 120 V, 60 Hz: 323 W, 2.8 A, PF 0.962 208 V, 60 Hz: 329 W, 1.7 A, PF 0.928 230 V, 50 Hz: 338 W, 1.6 A, PF 0.910 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 100° C Total heat dissipation (calculated, +/- 10%): 1160 BTU/hr.
Approvals EU safety: EN 60598-2-5 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE
Included Items Osram HSD 250/80 lamp: 97010116 DMX termination plug, RJ-45: 91613028
Accessories Wide-angle 32° kit: 91611075 Narrow-angle 15° kit: 91611074 Slide projection kit: 91611076
Spare Parts Air filter: 91611079 Osram HSD 250/80 lamp: 97010116
Ordering Information Imager 01 DMX with J-box: 90540110 Imager 04 DMX with J-box: 90540010 Scanning mirror unit for Imager: 91611069 Imager Base (required item): 90721000
