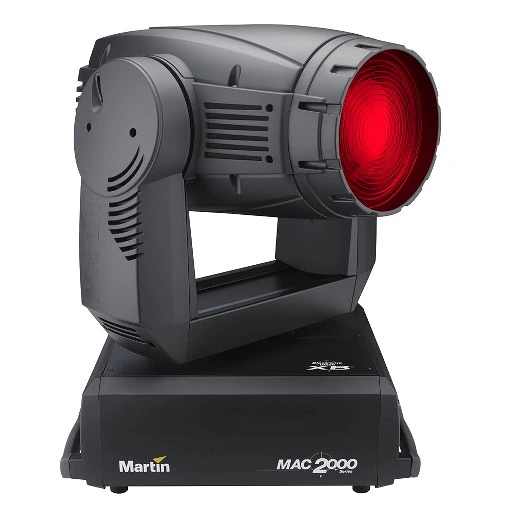

MAC 2000 Wash XB (discontinued)

Mac 2000 wash xb large
Larger Images

This highly reliable and extremely high output wash light is established as industry standard with a proven design and housing that is more compact than any of its competitors.

Features

  • 1500 W short arc discharge
  • CMY color mixing system
  • 2 x 4 position color wheels plus open
  • Variable CTC
  • Strobe effect up to 10 Hz, pulse effects, instant open and blackout
  • Motorized zoom
  • PC,Fresnel and micro-Fresnel (all included) and super-wide lenses
  • Mechanical dimming
  • Pan and tilt range of 540°/267°
  • Electronic ballast with hot lamp restrike and flicker free light
  • Variable fan control for quieter operation

Tech Specs

Physical Length: 408 mm Width: 490 mm Height: 750 mm, head straight up Weight: 38 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color correction: 0 - 178 mireds, continuously variable Color wheel: 2 wheels, each with 4 interchangeable filters + open position Mechanical dimmer: 0 - 100% Shutter: Strobe effect up to 10 Hz, pulse effects, instant open and blackout Zoom: Motorized Hyper mode: Narrow beam with diffuser removed Pan: 540° Tilt: 267°
Control and Programming DMX channels: 19/21 Setting and addressing: Control panel with LED display 16-bit control: Pan & tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 1500 W short-arc discharge Fitted as standard: Osram HTI 1500 W/D7/60 SharXS Color temperature: 6000 K CRI (Color rendering index): >90 Average lifetime: 750 hours Hot restrike: Yes Socket: Double-ended SFc 10-4 with key Ballast: Electronic
Optics Beam angle: PC lens 12.5° - 35°, Fresnel lens 12.5° - 39°, multi-array super-wide lens 73° - 91°, 1/10 peak angles, with 50 mm aperture
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Installation Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible Orientation: Any
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 15 AT (x 2)
Typical Power and Current 200 V, 50 Hz: 1787 W, 9.0 A, PF 0.993 208 V, 60 Hz: 1793 W, 8.7 A, PF 0.991 230 V, 50 Hz: 1780 W, 7.8 A, PF 0.989 230 V, 60 Hz: 1787 W, 7.9 A, PF 0.987 240 V, 50 Hz: 1773 W, 7.5 A, PF 0.988 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 175° C Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 6120 BTU/hr.
Approvals EU safety: EN 60598-2-17 EU EMC: EN 55 015, EN 55 103-1, EN 61 547 US safety: UL 1573 Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17

Included Items Osram HTI 1500 W/D7/60 SharXS lamp (installed): 97010322 Front module with Fresnel lens (installed): 55203003 Front module with PC lens: 55203006 Front module with super wide-angle lens: 55203012 30 mm aperture ring: 23807480 40 mm aperture ring: 23807460 45 mm aperture ring: 23807470 User manual: 35000219 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001
Accessories GE CSR1500/S/DE/60S Staybright lamp: 97010332 Philips MSR Gold 1510 SA/DE lamp: 97010345 MAC 2000 Wash + XB Beam Kit: 91610103 MAC 2000 Wash Dimmer Wheel: 62324018 Micro-Fresnel lens (very narrow beam angle): 91610092 T-shaped omega bracket with quarter-turn fasteners: 91602008 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Safety cable, safe working load 50 kg: 91604003 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Double flightcase (SIP) for MAC 2000 Series: 91510170
Related Items Martin USB Duo™ DMX Interface Box: 90703010
Spare Parts Osram HTI 1500 W/D7/60 SharXS lamp: 97010322 15 AT main fuse: 05020039
Ordering Information MAC 2000 Wash XB in double flightcase: 90204000 MAC 2000 Wash XB in cardboard box: 90204015 MAC 2000 Wash XB™ Upgrade Kit (upgrades standard MAC 2000 Wash™ to Wash XB): 91310980
