MAC Viper Performance

Larger Images

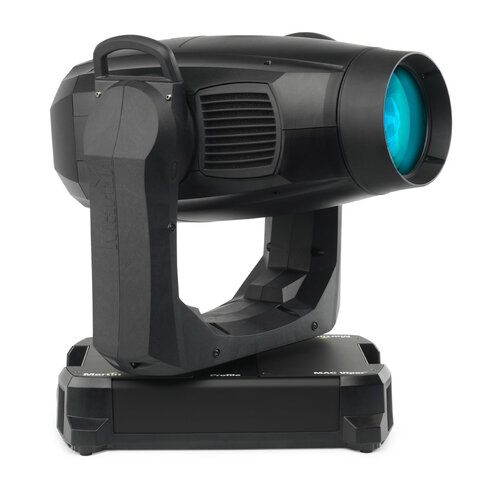

The MAC Viper Performance is a full-feature framing fixture that delivers an output and performance never before seen in a fixture this size or one using so little power. Unlike other fixtures in this class, the MAC Viper Performance does not forgo an iris or animation wheel – they are both included along with a framing system and rotating gobos.

The framing system consists of four shutter blades that can all individually adjust +/- 30° while the entire system can rotate +/- 55°. The exacting system can repeat each cue with great precision. When fully focused, gobos can be nicely framed with a soft edge. The MAC Viper Performance has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000-watt lamp.

  • 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom – Fast zoom with auto-linked focus
  • Four shutter blades individually adjust +/- 30° while the entire system rotates +/- 55°. Repeats cues with great precision

Features

  • 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom – Fast zoom with auto-linked focus
  • Four shutter blades individually adjust +/- 30° while the entire system rotates +/- 55°. Repeats cues with great precision
  • Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
  • 5 rotating gobos – All glass gobos with only a slight focal separation to the framing system
  • Animation wheel with continuous bi-directional rotation
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • 7-slot color wheel – Static colors and correction filters for added color choice and bump effects
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects
  • Strobe – Diverse strobe effects using mechanical or electronic control or in combination
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option
  • 4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling

Specifications

  • Physical Height:

    731 mm (28.8 in.) head straight up
    748 mm (29.4 in.) maximum

    Length:

    472 mm (18.6 in.) base
    566 mm (21.6 in.) head

    Weight: 37.9 kg (83.6 lbs.) Width:

    472 mm (18.6 in.)
    335 mm (13.2 in.) base

    Minimum center-to-center distance in side-by-side installation: 650 mm (25.6 in.) Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: CTO, variable 6000 - 3200 K Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color Aerial wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction Framing: Rotatable framing module, +/- 55°, with 4 individually controllable blades Prism: Interchangeable 4-facet rotating prism Iris: 0 - 100% Frost: Variable Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Zoom-focus linking system: 3-zone Zoom: Motorized Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.) Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Control and Programming 16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX DMX channels: 32/40 Receiver: Opto-isolated RS-485 Firmware update: USB memory device or USB/DMX hardware interface over DMX link DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Optics Zoom range: 10-44° (1:4) Color temperature: 6000 K Output: 26,000 lumens Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W Service Utilities Fixture identification: User-settable fixture ID number Construction Housing: UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20 Gobos Size: E27 (Size E, max. image diameter 27 mm) Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 +0/- 0.01 in.) Maximum image diameter: 27 mm (1.1 in.) Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.) Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.) Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
  • Electrical AC power: 120-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical half-cycle RMS inrush current: 16.2 A Typical Power and Current 120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999 208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996 230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994 240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993 Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor. Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F) Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241 Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual: P/N 35000258 Accessories Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m (9.9 ft.): P/N 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804 Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008 Half-coupler (tube) clamp: P/N 91602005 G-clamp (suspension with yoke vertically downwards only): P/N 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007 Safety cable, safe working load 70 kg (154 lbs.): P/N 91604004 Flightcase for 2 x MAC Viper: P/N 91510180 Related Items Martin USB Duo™ DMX Interface Box: P/N 90703010 Martin™ RDM 5.5 Splitter: P/N 90758150 Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270 Ordering Information MAC Viper™ Performance in cardboard box: P/N 90233100 MAC Viper™ Performance in double flightcase: P/N 90233110 Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 41 kg (90.4 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 350 kg (771.7 lbs.)

Downloads

  Version Language Size Uploaded
Specifications
Acoustic Report en  564 KB Nov 12, 2013
MAC Viper Performance Spec Sheet-English   en  414 KB Jul 09, 2018
Manuals
MAC Viper Performance - Bedienungsanleitung de  3.39 MB Dec 12, 2014
MAC Viper Performance - Sicherheits- und Installationshinweise de  2.29 MB Dec 12, 2014
MAC Viper Performance - Guide de l'utilisateur fr  633 KB Jan 06, 2015
MAC Viper Performance - Manuel d'Installation et sécurité fr  2.24 MB Jan 06, 2015
MAC Viper Performance - User Guide en  1.15 MB Dec 12, 2014
MAC Viper Performance - Safety and Installation Manual en  2.31 MB Dec 12, 2014
Illustrations
MAC Viper Profile & Performance - Dimensions (2D DXF) en  1.59 MB Aug 06, 2012
MAC Viper Profile and Performance - Dimensions (2D PDF) en  906 KB Jun 18, 2012
3D Symbols
Vectorworks Symbols 2.6  en  66.4 MB May 01, 2019
CAD Drawings
MAC Viper Profile & Performance - Vertical (3D DWG) en  5.07 MB Oct 25, 2012
MAC Viper Profile - Head Vertical (3DS) en  3.5 MB May 07, 2013
MAC Viper Profile - Head Horizontal (3DS) en  3.11 MB May 07, 2013
MAC Viper Profile & Performance - Horizontal (3D DWG) en  5.28 MB Oct 25, 2012
Compliances
MAC Viper Series - ETL Listing Verification en  398 KB Aug 12, 2013
MAC Viper Series - EU Declaration of Conformity en  729 KB Mar 04, 2019
Software
MAC Viper Performance Software 2.4.0B    5.18 MB Sep 26, 2017
Parts
MAC Viper - New part number for yoke handle en    Aug 31, 2014
MAC Viper Series - Alternative Lamp Approved en    Nov 13, 2014
Service Procedures
MAC Viper Performance Maintenance (User) en    Sep 02, 2013
MAC Viper Performance - Maintenance Schedule (End-User) 1.1.0  en  109 KB Nov 10, 2014
Service Notes
3DPartsfinder using Solid Works Composer player en    Mar 04, 2016
Mac Viper Series - Head Air Filter Replacement en  403 KB Dec 02, 2014
MAC Viper Series - Correct lamp socket is PGJX36 en    Aug 11, 2013
MAC Viper Series - Air Filter Options en    Jun 11, 2015
MAC Viper Profile - Live heat sink in base en    Aug 05, 2015
MAC Viper Series - Lamp orientation from mid-2013 en  1.79 MB Jun 19, 2013
3DPartsfinder Using Solid Works Composer Player     Sep 22, 2017
Tech Notes
Service mode used as follow spot mode     Sep 22, 2017
Discharge Lighting Shutdown Guidelines     Sep 22, 2017
Avoiding damage from sunlight and other light sources     Sep 22, 2017
MAC Viper Air Filter Options     Sep 22, 2017
MAC Viper Service Notes     Sep 22, 2017
MAC Viper Parts     Sep 22, 2017
Hints And Tips
Discharge Lighting Shutdown Guidelines en    Mar 16, 2008
Avoiding damage from sunlight and other light sources en    Dec 09, 2012
MAC Viper Series - Service mode used as follow spot mode en    Sep 02, 2015
