MAC Aura XB

Larger Images

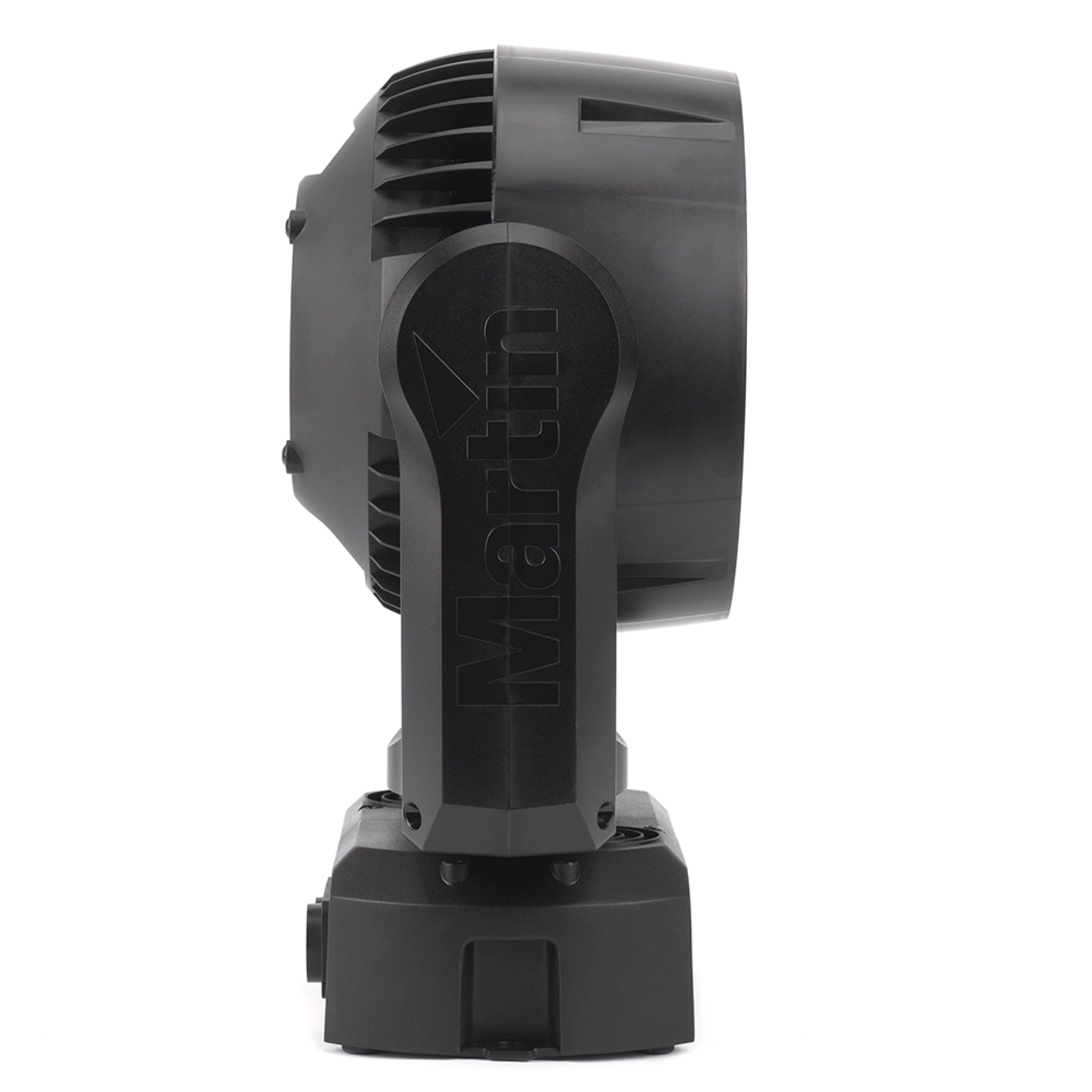

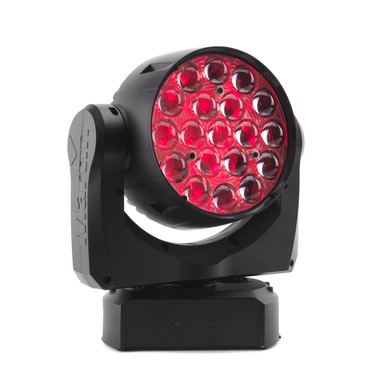

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.

  • Super bright single lens wash with fully premixed color
  • Compact design and low weight
  • High efficiency, low power consumption, long service life

Videos

MAC Aura XB



Features

  • Super-bright single-lens wash with fully premixed color
  • Broad color palette, RGBW color mixing
  • Eye-candy Aura Effect™
  • Uniform shades
  • Built-in FX engine
  • 10 to 60° uniform zoom
  • 6000 Lumens output
  • Rapid movement
  • Compact, low weight design (6.5 kg)
  • High efficiency, low power consumption, long lifetime

Tech Specs

PhysicalLength (across yoke): 302 mm (11.9 in.)Width (across yoke): 302 mm (11.9 in.)Height (head straight up): 360 mm (14.2 in.)Weight (without accessories): 6.5 kg (14.4 lbs.)
Dynamic EffectsBeam color mixing: RGBWAura (secondary lens array illumination) color mixing:RGBBeam color temperature control: CTO, variable 10 000 - 2500 KBeam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random colorBeam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effectsPre-programmed effects: Range of independent and synchronized Beam and Aura FX, two combinableElectronic dimming: Independent beam and aura, four dimming curve optionsZoom: 10° - 60° (one-tenth peak angle)Pan: 540°Tilt: 232°Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and ProgrammingControl options: Independent or synchronized Beam and Aura controlControl system: DMX, RDMControl resolution: 8-bit, with 16-bit control of pan & tiltDMX channels: 14/25Setting and addressing: Control panel with backlit graphic displayDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: RS-485Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box
Optics and Photometric DataLight source: 19x 15W RGBW LED Array SystemLED refresh rate: Beam 1200 Hz, Aura 4395 HzMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Total luminous output (wide, one-tenth peak): 6000 lumensTotal luminous output (narrow, one-tenth peak): 4300 lumensVideo compatibility: Designed for use with HD/high-speed video cameras*Figure obtained under manufacturer´s test conditions
ConstructionColor: BlackHousing: High-impact thermoplastic, flame-retardant to UL 94 5VAProtection rating: IP20
InstallationMounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracketOrientation: AnyMinimum distance to combustible materials: 200 mm (8 in.) from fixtureMinimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixtureLocation: Indoor use only, must be fastened to surface or structure
ConnectionsAC power: Neutrik PowerCON TRUE1 NAC3PX dual socketAC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connectorAC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connectorDMX data in/out: 5-pin locking XLR
ElectricalMaximum power consumption: 400 WPower supply unit: Auto-ranging electronic switch modeAC power: 100-240 V nominal, 50/60 HzTypical half-cycle RMS inrush current: 10.7 APower consumption, all effects static, zero light output:<25 W
Typical Power and Current100 V, 60 Hz: 359 W, 3.8 A, PF 0.99120 V, 60 Hz: 355 W, 3.2 A, PF 0.99208 V, 60 Hz: 350 W, 1.8 A, PF 0.97230 V, 50 Hz: 349 W, 1.7 A, PF 0.95240 V, 50 Hz: 349 W, 1.6 A, PF 0.95Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: Forced air (temperature-regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241

Included ItemsM12 bolt suitable for use with Martin rigging clampsNote that power cables and connectors are not included and must be ordered separately
AccessoriesPower cablesPower input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power connectorsCable connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789Cable Connector, Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788Installation hardwareQuick surface mounting bracket for MAC Aura XB, set of 5: P/N 91606018G-clamp: P/N 91602003Half-coupler (tube) clamp: P/N 91602005Quick trigger clamp: P/N 91602007Flightcase6-unit flightcase for MAC Aura™: P/N 91515020Optical AccessoriesMAC Aura / Aura XB Soft Lens Kit: P/N 91611730
Related ItemsMartin USB Duo™ DMX Interface Box: P/N 90703010Martin DMX 5.3 Splitter™: P/N 90758140Martin RDM 5.5 Splitter™: P/N 90758150
Ordering InformationMAC Aura XB™ in cardboard box: P/N 90232100MAC Aura XB™ in 6-unit flightcase: P/N 90232110

Specifications

  • Physical Height: 360 mm (14.2 in.), head straight up Length: 302 mm (11.9 in.) across yoke Weight: 6.5 kg (14.4 lbs.) without accessories Width: 302 mm (11.9 in.) across yoke Dynamic Effects Beam color mixing: RGBW Aura (secondary lens array illumination) color mixing: RGB Beam color temperature control: CTO, variable 10,000 - 2500 K Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined Electronic dimming: Independent beam and aura, four dimming curve options Pan: 540° Tilt: 232° Pan and tilt speed: Adjustable via onboard control panel and DMX Control and Programming Control systems: DMX, RDM Control options: Independent or synchronized Beam and Aura control Setting and addressing: Control panel with backlit graphic display DMX channels: 14/25 Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: RS-485 Optics Zoom range: 11° - 58° Peak angle: One-tenth Light source: 19x 10W RGBW LED Array System LED refresh rate: Beam 1220 Hz, Aura 4395 Hz Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer´s test conditions Photometric Data Total output: 3850 lumens (zoom at maximum) Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20 Installation Mounting points: One M12 threaded hole for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm (4.0 in.) Minimum distance to illuminated surfaces: 200 mm (7.9 in.) Connections AC power input: Neutrik PowerCon AC power throughput: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Maximum total power consumption: 260 W Main fuse: 5 AT (slow blow) Typical power consumption, all effects static, zero light output: <15 W Typical Power and Current 100 V, 60 Hz: 236 W, 2.4 A, PF 0.994 120 V, 60 Hz: 234 W, 2.0 A, PF 0.992 208 V, 60 Hz: 229 W, 1.2 A, PF 0.970 230 V, 50 Hz: 228 W, 1.1 A, PF 0.959 240 V, 50 Hz: 228 W, 1.0 A, PF 0.953 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Total heat dissipation (calculated, +/- 10%): 880 BTU/hr. Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241 Included Items User manual: P/N 35000254 M12 bolt suitable for use with Martin rigging clamps Accessories 3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: P/N 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804 Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805 Power relay cable with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11850099 Power relay cable with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11850100 Set of 5 quick-mount surface mounting brackets: P/N 91606017 G-clamp: P/N 91602003 Quick trigger clamp: P/N 91602007 6-unit flightcase for MAC Aura: P/N 91515020 Half-coupler (tube) clamp: P/N 91602005 MAC Aura / Aura XB Soft Lens Kit: P/N 91611730 Related Items Martin USB Duo™ DMX Interface Box: P/N 90703010 Martin™ DMX 5.3 Splitter: P/N 90758140 Martin™ RDM 5.5 Splitter: P/N 90758150 Ordering Information MAC Aura XB™ in cardboard box: P/N 90232100 MAC Aura XB™ in 6-unit flightcase: P/N 90232110
