MAC Aura

Single-lens wash light with unique backlight

Larger Images

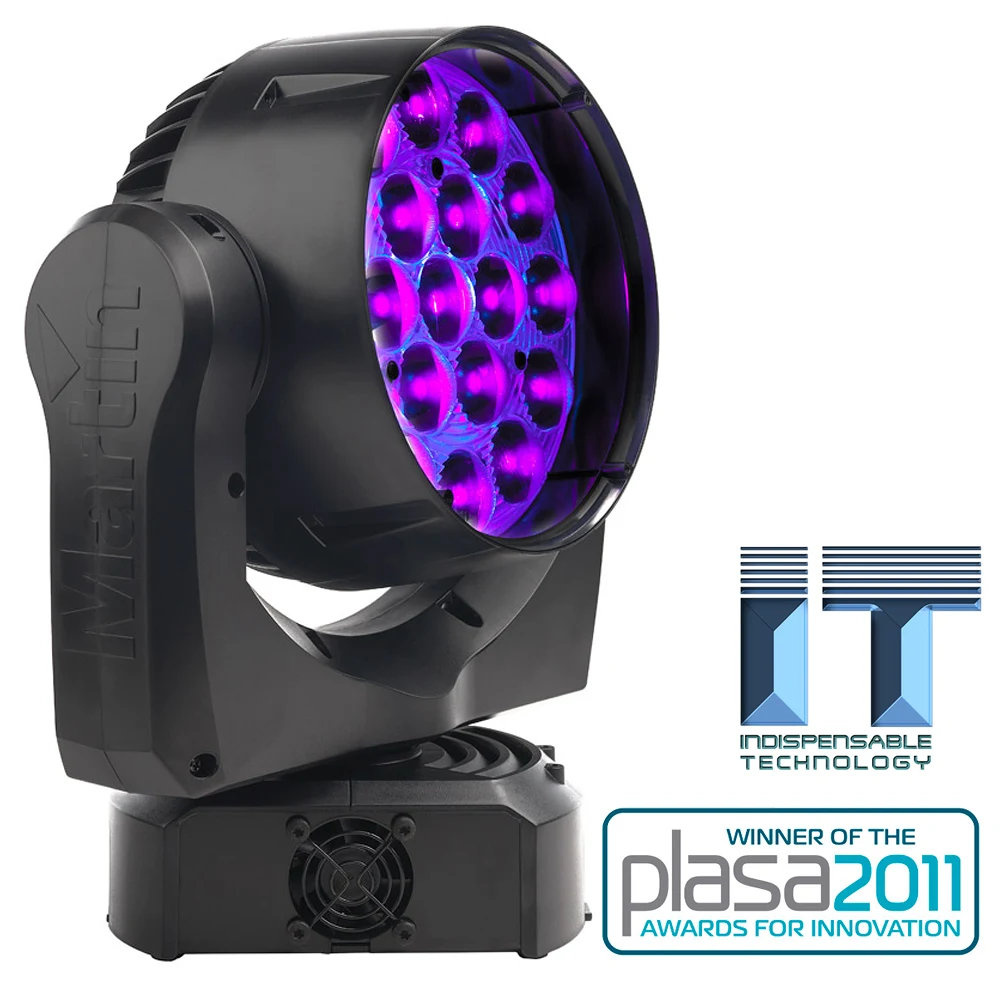

The MAC Aura is an award-winning wash light that lighting designers have turned to the world over due to its versatility as a powerful beam and wash luminaire of the highest caliber. The result of out-of-the-box creative thinking, it is the first LED moving head wash light to combine multicolor beam LEDs with a backlight LED array that takes the synthetic look out of LED wash lights.

  • Single-lens wash with fully premixed color
  • Broad color palette, RGBW color mixing
  • Eye-candy Aura Effects™

Videos





Features

  • Single-lens wash with fully premixed color
  • Broad color palette, RGBW color mixing
  • Eye-candy Aura Effects™
  • Uniform shades
  • Built-in FX engine
  • 11 to 58° zoom
  • 3850 Lumens output
  • Rapid movement
  • Compact, low weight design (5.6 kg)
  • High efficiency, low power consumption, long lifetime

Specifications

  • Physical Length: 302 mm (11.9 in.) across yoke Width: 302 mm (11.9 in.) across yoke Height: 360 mm (14.2 in.), head straight up Weight: 5.6 kg (12.4 lbs.) without accessories
    Dynamic Effects Beam color mixing: RGBW Aura (secondary lens array illumination) color mixing: RGB Beam color temperature control: CTO, variable 10 000 - 2500 K Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined Electronic dimming: Independent beam and aura, four dimming curve options Pan: 540° Tilt: 232° Pan and tilt speed: Adjustable via onboard control panel and DMX
    Control and Programming Control options: Independent control of beam (primary output) and aura (secondary lens array illumination) Macro programs selectable via DMX: Synchronized beam and aura effects Control: DMX RDM: Implemented Control resolution: 8-bit, with 16-bit control of pan & tilt Setting and addressing: Control panel with backlit graphic display DMX channels: 14/25 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: RS-485 Fixture software update: Via DMX with Martin™ USB Duo DMX Interface Box
    Optics Zoom range: 11° - 58° Peak angle: One-tenth Light source: 19x 10W RGBW LED Array System LED refresh rate: Beam 1220 Hz, Aura 4395 Hz Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer´s test conditions
    Photometric Data Total output: 3850 lumens (zoom at maximum)
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Installation Mounting points: One M12 threaded hole for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm (4.0 in.) Minimum distance to illuminated surfaces: 200 mm (7.9 in.)
    Connections AC power input: Neutrik PowerCon AC power throughput: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Main fuse: 5 AT (slow blow) Typical power consumption, all effects static, zero light output: <15 W Maximum total power consumption: 260 W
    Typical Power and Current 100 V, 60 Hz: 236 W, 2.4 A, PF 0.994 120 V, 60 Hz: 234 W, 2.0 A, PF 0.992 208 V, 60 Hz: 229 W, 1.2 A, PF 0.970 230 V, 50 Hz: 228 W, 1.1 A, PF 0.959 240 V, 50 Hz: 228 W, 1.0 A, PF 0.953 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Total heat dissipation (calculated, +/- 10%): 880 BTU/hr.
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items User manual: P/N 35000254 M12 bolt suitable for use with Martin rigging clamps
    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female: P/N 91611794

    Cables, 16 A, for connection to power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178

    Set of 5 quick-mount surface mounting brackets: P/N 91606017 6-unit flightcase for MAC Aura: P/N 91515020 MAC Aura / Aura XB Soft Lens Kit: P/N 91611730 (H07RN-F are European approved cables,SJOOW are US approved cables) Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Ordering Information MAC Aura™ in cardboard box: P/N 90232000 MAC Aura­­™ in 6-unit flightcase: P/N 90232010

    MAC Aura™, white finish, in cardboard box*
    *Available by special order - please contact your Martin™ supplier for details
