MAC TW1 (discontinued)

MAC TW1
Larger Images

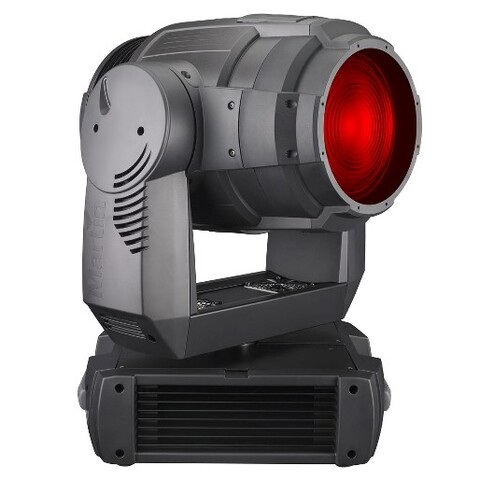

The MAC TW1 is a powerful, silent tungsten wash light with a clean, even, soft-edged beam, a motorized zoom, exceptional and rich CMY color mixing and can be run from the built-in dimmer or from an external dimmer.

Features

  • Total output up to 14200 lumens
  • CMY color mixing system
  • Rapid stobe effects (up to 10 Hz)
  • Motorized zoom
  • Fresnel (included), narrow, and multi array
  • Internal & external electronic dimming plus mechanical dimming
  • 80 V dimmer for universal operating voltage
  • Patented very low-noise cooling
  • Various front accessories for theatre, television and film applications

Specifications

Physical Length: 454 mm Width: 362 mm Height: 709 mm, head straight up Weight: 26.8 kg, IGBT dimmer model Weight: 27.4 kg, 80 V dimmer model
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Electronic dimming: Multi-voltage IGBT and 80 V internal dimmer options, 'plug and play' external dimming Mechanical dimmer: 0 - 100% Shutter: Strobe effect up to 10 Hz, random strobe Zoom: Narrow 14.5° - 27°, Standard 20° - 41°, Very wide 97° - 105°, 1/10 peak angles, 80 V lamp Pan: 540° Tilt: 242°
Control and Programming DMX channels: 14/20 Setting and addressing: Control panel with display 16-bit control: CMY, mechanical dimmer, electronic dimmer, zoom, pan & tilt Movement control options: Tracking and vector Dimming curve options: Various available Protocol: USITT DMX512-A Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 1200 W tungsten halogen Approved lamps: Philips 1200/115, 1200/230 or 1200/240 FastFit, OSRAM Lok-It 1200W 80V/32/P50 Socket: PGJX-50 Lamp voltage must match internal or external dimmer output voltage:
Dimming System Options Internal multi-voltage IGBT dimmer: 0 - 100%, 8- or 16-bit dimming resolution, controlled via DMX Internal 80 V dimmer: 0 - 100%, 8- or 16-bit dimming resolution, controlled via DMX External dimmer input: Intelligent lamp power control
Construction Color(s): Black Housing: Magnesium alloy, UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Installation Orientation: Any Mounting points: 2 pairs of 1/4-turn locks
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin and 5-pin locking XLR External dimmer: Neutrik PowerCon
Electrical AC power: 100-120/200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 20 AT (slow blow)
Typical Power and Current 115 V, 60 Hz: 1226 W, 10.7 A, PF 0.998 230 V, 50 Hz: 1220 W, 5.3 A, PF 0.995 240 V, 50 Hz: 1233 W, 5.2 A, PF 0.996 230 V, 50 Hz using internal 80 V dimmer: 1219 W, 5.5 A, PF 0.970 230 V, 50 Hz using external dimmer, figures for fixture only: 93 W, 1.0 A, PF 0.420 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Lamp cooling: Patent-pending low noise ducted forced air system Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Maximum surface temperature, steady state, at 40° C ambient: 200° C (392° F) Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 4180 / 4160 BTU/hr.
Acoustic Sound power level: 31 dBA (steady state, lamp on, effects static, Ta=20°C, test conditions ISO 3743-2:1994)
Approvals EU safety: EN 60598-2-17, EN 61347-1 EU EMC: EN 55 015, EN 55 103-1, EN 55103-2 US safety: ANSI/UL 1573 Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17
CE ETL C US Intertek
Included Items Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 Four 20 AT main fuses (installed): 05020051 User manual: 35000184
Accessories OSRAM Lok-It 1200W 80V/32/P50 - 80 V lamp: 97010352 Philips 1200/115 FastFit - 115 V lamp: 97000112 Philips 1200/230 FastFit - 230 V lamp: 97000113 Philips 1200/240 FastFit - 240 V lamp: 97000114 Very wide-angle lens kit: 91610032 Narrow-angle lens kit: 91610033 Front accessory holder.: 91611260 Internal 80 V dimmer: 91614026 Flightcase (holds 2 fixtures): 91510019 Half-coupler clamp: 91602005 G-clamp: 91602003 Quick trigger clamp: 91602007 Omega bracket: 91602001 T-shaped omega bracket with quarter-turn fasteners: 91602008 Safety cable, safe working load 50 kg: 91604003 Gel frame: Top hat: Top hat with louver: Accessories listed without part numbers are available from City Theatrical www.citytheatrical.com :
Spare Parts 20 AT main fuse: 05020051
Ordering Information MAC TW1™, Multi-voltage, 80 V dimmer in cardboard box: 90202400 MAC TW1™, Multi-voltage, 80 V dimmer, 2-unit flightcase: 90202401
