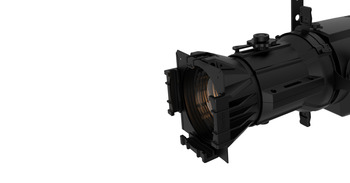

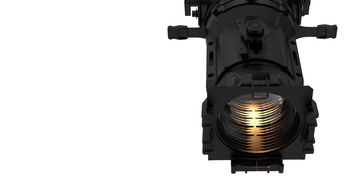

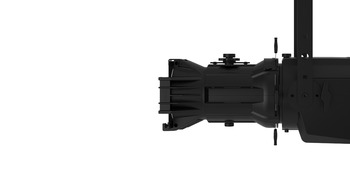

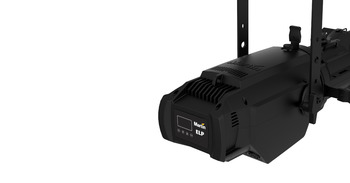

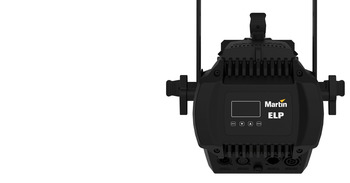

ELP WW

Warm white LED ellipsoidal profile

Martin ELP WW (Warm White) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP WW the leading Warm White LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.



Lighting For Live Streams

  • Advanced Martin Optics

    Martin ELP Ellipsoids feature optic assemblies designed in Denmark by the technology innovators behind MAC Encore, the leading LED moving light. The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures.






  • Meet Cutting-Edge LED Technology

    ELP WW delivers 7,000 lumens of output and an industry-leading 97 CRI at 3000K color temperature, for the truest color representation on any surface. ELP CL offers an impressive 6,900 lumens and 85 CRI in High Output mode, and 5,900 lumens and 90 CRI in High Quality mode, with a color temperature of 6,000K (open white). Both models offer flicker-free operation for consistent light output, on and off camera and 16-bit dimming with 4 selectable curves.

  • Focus on Functionality

    ELP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output for 60 seconds without data running to the fixture. Halation Color correction removes atypical blue and brown halos when using Martin lens tubes.

  • And Ergonomics Too

    Danish engineering is all about efficiency and ergonomics, and the subtle details of ELP are no exception: We’ve placed the center of gravity as close to the yoke as possible, for more comfortable operation. And, we’ve placed tilt knobs out of the way of framing shutters, to allow quick, easy position adjustments.





  • Invest in the Future, with a Minimal Financial Investment

    It has never been easier to transition your inventory to LED ellipsoidals. In addition to the four lens tube configurations available through Martin, the ELP line fits common 3rd party lens tubes and accessories—which which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.




Advanced Martin Optics

Martin ELP Ellipsoids feature optic assemblies designed in Denmark by the technology innovators behind MAC Encore, the leading LED moving light. The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures.






Meet Cutting-Edge LED Technology

ELP WW delivers 7,000 lumens of output and an industry-leading 97 CRI at 3000K color temperature, for the truest color representation on any surface. ELP CL offers an impressive 6,900 lumens and 85 CRI in High Output mode, and 5,900 lumens and 90 CRI in High Quality mode, with a color temperature of 6,000K (open white). Both models offer flicker-free operation for consistent light output, on and off camera and 16-bit dimming with 4 selectable curves.

Focus on Functionality

ELP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output for 60 seconds without data running to the fixture. Halation Color correction removes atypical blue and brown halos when using Martin lens tubes.

And Ergonomics Too

Danish engineering is all about efficiency and ergonomics, and the subtle details of ELP are no exception: We’ve placed the center of gravity as close to the yoke as possible, for more comfortable operation. And, we’ve placed tilt knobs out of the way of framing shutters, to allow quick, easy position adjustments.





Invest in the Future, with a Minimal Financial Investment

It has never been easier to transition your inventory to LED ellipsoidals. In addition to the four lens tube configurations available through Martin, the ELP line fits common 3rd party lens tubes and accessories—which which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.




Features

  • Impressive light output rating of 7,000 lumens at 3000K.
  • Industry-leading CRI rating of 97.
  • Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
  • Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
  • 15-30 degree and 25-50 degree beam Zoom lenses available in black and white
  • Advanced optics engineered in Denmark
  • Warm White light engine employs leading-edge LED chipset technology for high output and smooth LED blending
  • 16-bit dimming with 4 selectable dimming curves
  • Flicker-free operation
  • 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Specifications

  • Physical Length: 648 mm (25.5 in.) Width: 259 mm (10.2 in.) Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket Weight: 7.7 kg (17 lbs)
    Dynamic Effects Electronic shutter effect: Instant open and blackout Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe
    Control and Programming Control options: DMX, stand-alone 16-bit control: Intensity Setting and addressing: Control panel with OLED display or via RDM DMX channels: 1/2/4 PWM: 600-2400 Hz Standalone programming: Control panel with OLED display DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
    Optics Light source: 91 X 3W warm white LEDs Color temperature: 3000K Lens tube options: 19°, 26°, 36°, 50° Minimum LED lifetime: 30,000 hours (to >70% luminous output)* Zoom Lens Tube Options: 15–30° and 25–50° *Figure obtained under manufacturer's test conditions
    Photometric Data Light engine luminous output: 16,000 lumen Fixture luminous output: 7000 lumen CRI (Color Rendering Index) : >97 CQS (Color Quality Scale): >93 TM-30 Rf (IES TM-30-15 Fidelity Index): >93 TM-30 Rg (IES TM-30-15 Gamut Index): >101 TLCI (Television Lighting Consistency Index): >96
    Construction Housing: Die-cast aluminum Color: Black or white variant Protection rating: IP20
    Gobos and Color Frame Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image* Color frame size: 159 X 159 mm (6.25 X 6.25 in.) *Gobo holder not included
    Installation Mounting: Adjustable bracket Location: Indoor use only Orientation: Any Minimum distance to combustible materials: 0.2 m (0.7 ft.) Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
  • Connections AC power in, thru: Neutrik PowerCON TRUE1 DMX and RDM data in/out: 5-pin locking XLR
    Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Idle power (zero intensity): 5 W Half-cycle RMS inrush current at 230 V, 50 Hz: 15.3 A Fixture link via PowerCON at 100-120 V: Up to 4 fixtures Fixture link via PowerCON at 200-240 V: Up to 9 fixtures Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
    Typical Power and Current 110 V, 60 Hz: 2.6 A, 280 W, PF 0.99 208 V, 60 Hz: 1.4 A, 270 W, PF 0.97 230 V, 50 Hz: 1.2 A, 269 W, PF 0.96 240 V, 50 Hz: 1.2 A, 268 W, PF 0.96 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
    Included Items

    Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
    Mounting bracket
    User manual

    Accessories Cables, 16 A, for connection to power in chains:

    Power input cables
    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Power relay cables
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 0.45 m (1.5 ft.): P/N 91611784
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 1.2 m (3.9 ft.): P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 2.5 m (8.2 ft.): P/N 91611786
    Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Connectors:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin ELP Lens Tube 19°: P/N 9045107782 Martin ELP Lens Tube 19° White : P/N 9045115166 Martin ELP Lens Tube 26°: P/N 9045107783 Martin ELP Lens Tube 26° White : P/N 9045115167 Martin ELP Lens Tube 36°: P/N 9045107784 Martin ELP Lens Tube 36° White : P/N 9045115168 Martin ELP Lens Tube 50°: P/N 9045107785 Martin ELP Lens Tube 50° White : P/N 9045115170 Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618 Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108 Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619 Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109
    Ordering Information Martin ELP WW (Body Only): P/N 9045107781 Martin ELP WW (Body Only), White: P/N 9045115165
