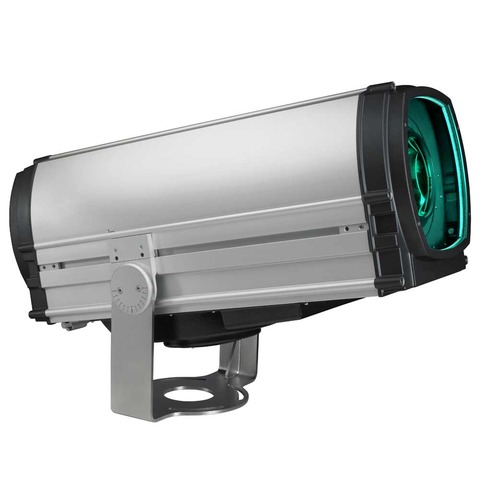

Exterior 1200 Image Projector (discontinued)

Exterior1200imageprojector large
Larger Images

The Exterior 1200 Image Projector is a powerful 1200 W luminaire designed for projecting animated images and effects onto structures and landmark architecture.

Features

  • 1200 W metal halide lamp
  • CMY color mixing system
  • Color wheel with primary colors red, green and blue
  • 4 D-size gobo slots for projecting graphic images
  • Gobo animation system for creating animated lighting effects
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • Choice of narrow, medium or wide beam options
  • Dynamic zoom for variable beam angles: 11°- 17° / 17°- 34° / 30°- 48°
  • Motorized zoom and focus
  • DMX, stand-alone, synchronized (master/slave)
  • On-board address setting: no extra devices required
  • Weatherproof rating: IP65

Tech Specs

PhysicalLength: 1006 mmWidth: 448 mmHeight: 620 mmWeight: 90 kgEffective Projected Area (EPA): 0.8 m2
Dynamic EffectsColor mixing: CMYCyan: 0 - 100%Magenta: 0 - 100%Yellow: 0 - 100%Color wheel: 4 slots for interchangeable filtersRotating gobo wheel: 4 interchangeable gobo positions (one required for open), gobo indexing, continuous gobo rotationGobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and directionMechanical dimmer/shutter: 0 - 100% variable dimming, instant open and blackoutFocus: 3 m to infinityZoom: Motorized
Control and ProgrammingControl options: DMX, stand-alone, synchronized (master/slave)DMX channels: 17DMX address setting: MUM, onboard control panel16-bit control: Mechanical dimmer, rotating gobo indexing/speed, focus, zoomStand-alone trigger options: Internal timer and/or ambient light levelStand-alone memory: 20 scenesStand-alone programming: MUM, onboard control panelProtocol: USITT DMX512-AReceiver: RS-485
LampType: 1200 W metal halideFitted as standard: Philips MSD 1200Socket: G22Control: Automatic and/or remote on/off
OpticsBeam angle: Narrow lens 12° - 18°, medium lens 18° - 36°, wide lens 31° - 51°, cut-off angles
ConstructionHousing: AluminumFinish: Clear anodizedFront glass: 6 mm anti-reflection coatedColor wheel filters: 1.2 mm, dichroic, hexangularProtection rating: UL wet location, main enclosure designed to IP65
GobosMaterial: Metal or glassSize: DOutside diameter: 53.3 mm +0/- 0.3 mmMaximum image diameter: 48 mmMaximum thickness: 2mm (0.08 in.)Image orientation: True from lamp side
InstallationOrientation: Any (air intake must face down)Vertical aiming: +/- 90°
ConnectionsPower cable entry: IP68 cable glandPower connection: Quick connectorsData cable entry: IP68 cable glandData connection: RJ-45 sockets, screw terminal/quick connectors
ElectricalAC power: 200/208/220/230/240/250/277 V nominal, 50/60 HzMain fuse: 17.5 AT (slow blow)Ballast: MagneticStandby power: 20 W
Typical Power and Current200 V, 50 Hz: 1380 W, 7.0 A, PF 0.975200 V, 60 Hz: 1405 W, 7.3 A, PF 0.960208 V, 60 Hz: 1417 W, 7.1 A, PF 0.958220 V, 50 Hz: 1373 W, 6.4 A, PF 0.973230 V, 50 Hz: 1365 W, 6.1 A, PF 0.973240 V, 50 Hz: 1370 W, 5.9 A, PF 0.973250 V, 50 Hz: 1364 W, 5.6 A, PF 0.972277 V, 60 Hz: 1417 W, 5.4 A, PF 0.956Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
ThermalCooling: Forced air, integrated air/air heat exchanger, IP65 barrierMaximum ambient temperature (Ta max.): 45° CMinimum ambient temperature (Ta min.): -20° C, power must be maintained below 0° CMaximum surface temperature, steady state, Ta=45° C: 70° CTotal heat dissipation (calculated, +/- 10%): 4950 BTU/hr.
ApprovalsUS safety: UL 1598Canadian safety: CSA C22.2 No. 250.0-04EU safety: EN 60598-1, EN 61347-1EU EMC: EN 55 015, EN 55 103-1, EN 61 000-3

Included ItemsPhilips MSD 1200 lamp: 97010313Two M16 x 1.5 IP68 cable glands, metal, cable Ø 5.5 mm - 10 mm: 13102031One M20 x 1.5 IP68 cable gland, metal, cable Ø 8 mm - 13 mm: 13102090Four M16 cable entry blanking plugs (installed), metal: 13102050Two M20 blanking plugs (installed), metal:13103030Two main fuses, 17.5 AT (installed): 05020045Main PCB fuse, 15 AT (installed): 05020039User manual: 35000197
AccessoriesNarrow-angle lens kit: 91610083Medium-angle lens kit: 91610084Wide-angle lens kit: 91610085Permanent 5500 - 4200 K CTC kit: 91611273Permanent 5500 - 3400 K CTC kit: 91611272Snoot/barndoor kit: 91611257Beamshaper lens: 91610082Dichroic color filters (install in color wheel):Diffuser filter (installs in color wheel):CTC filter (installs in color wheel):Custom gobos:Gobo animation wheels:
Related ItemsMartin DABS1™ USB interface box incl. cables:90758090
Spare PartsPhilips MSD 1200 lamp: 9701031317.5 AT main fuse: 0502004515 AT main PCB fuse: 05020039Silicone seal for front cover, Exterior 1200 IP & Wash: 20600550Silicone seal for rear cover, Exterior 1200 IP & Wash: 20600560Silicone seal for wiring box, Exterior 1200 IP & Wash: 20620150Silicone seal for LCD display cover, Exterior 1200 IP & Wash: 20620160
Ordering InformationExterior 1200 Image Projector, Narrow:90504065Exterior 1200 Image Projector, Medium:90504075Exterior 1200 Image Projector, Wide: 90504085
