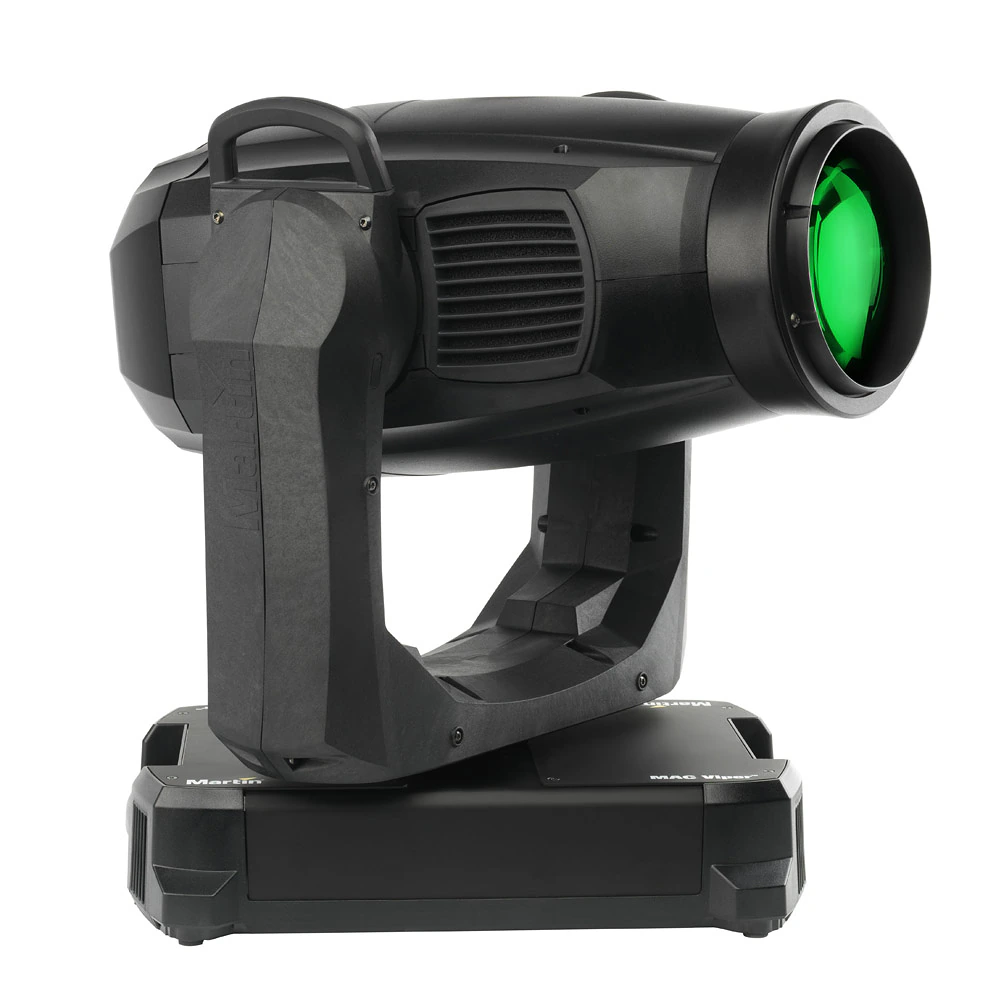

MAC Viper AirFX

Super-high output discharge-based aerial effects fixture

MAC Viper AirFX
Larger Images

Both flexible and efficient, the MAC Viper AirFX is a new concept that combines hard-edge, mid-air effects and a beautiful wash field in one luminaire. Featuring a great selection of all-new gobo designs, hard-edge effects remain stunning across the fixture’s entire 11 - 58° zoom range. Capable of snapping or fading into a wash light at any point, a unique and highly efficient optical system means the MAC Viper AirFX can offer the features of a profile at the output of a wash light.

The Viper AirFX has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for. It is also based on the same 1000-watt lamp for an output that convincingly exceeds any larger, heavier and more power-demanding 1500-watt profile fixture.

  • 35000 Lumens – excellent light quality with 6000K color temperature
  • 1:5 zoom - Continuous and fast zoom with auto-linked focus
  • 160 mm precision PC front lens for fat beam looks

Videos





Features

  • 35000 Lumens – excellent light quality with 6000K color temperature
  • 1:5 zoom - Continuous and fast zoom with auto-linked focus
  • 160 mm precision PC front lens for fat beam looks
  • Frost - snap or fade-in for beautiful wash effect
  • Rotating gobo wheel with 5 replaceable designs
  • Static gobo wheel with 7 designs
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 7-slot color wheel – Static colors and correction filters for added color choice
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects
  • Diverse strobe effects

Specifications

  • Physical Length:

    472 mm (18.6 in.) base
    566 mm (22.3 in.) head

    Width:

    473 mm (18.6 in.)
    335 mm (13.2 in.) base

    Height:

    732 mm (28.8 in.) head straight up
    749 mm (29.5 in.) maximum

    Weight: 35.7 kg (78.7 lbs.) Minimum center-to-center distance in side-by-side installation: 650 mm (25.6 in.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color Rotating aerial effects: 5 interchangeable rotating aerial effect gobos, wheel and gobo indexing, continuous rotation and shake Static gobo wheel: Interchangeable wheel with 7 integral gobos, wheel indexing and continuous rotation, random gobo Iris: 0 - 100%, pulse effects Zoom: Motorized Color temperature control: CTO, variable 6000 - 3200 K Wash effect: Fade in/out Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring
    Control and Programming Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Dimmer, aerial effect indexing, focus, zoom, pan and tilt DMX channels: 20/28 Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    Optics Zoom range: 11-58° (1:5) Color temperature: 6000 K Output: 35,000 lumens
    Photometric Data

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Gobos Size: E27 (Size E, max. image diameter 27 mm) Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.) Maximum image diameter: 27 mm (1.1 in.) Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
    Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
  • Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
    Electrical

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A
    Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
    Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V *
    Power Consumption
    Typical: 1225 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.

    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 30 lm/w LWR*: 980 lm/w (444 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power Input Cables:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Power Connector:
    Power Connector PowerCON Female : P/N 91611794

    T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008
    Half-coupler (tube) clamp: P/N 91602005
    G-clamp (suspension with yoke vertically downwards only): P/N 91602003
    Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Flightcase for 2 x MAC Viper: P/N 91510180
    Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001

    Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    Ordering Information MAC Viper™ AirFX in cardboard box: P/N 90233030 MAC Viper™ AirFX in double flightcase: P/N 90233040
    Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 39 kg (86.0 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 334 kg (736.4 lbs.)

    In double flightcase:

    Shipping dimensions (LxWxH): 1200 x 580 x 850 mm (47.3 x 22.9 x 33.5 in.)
