MAC 550 (discontinued)

MAC 550
Larger Images

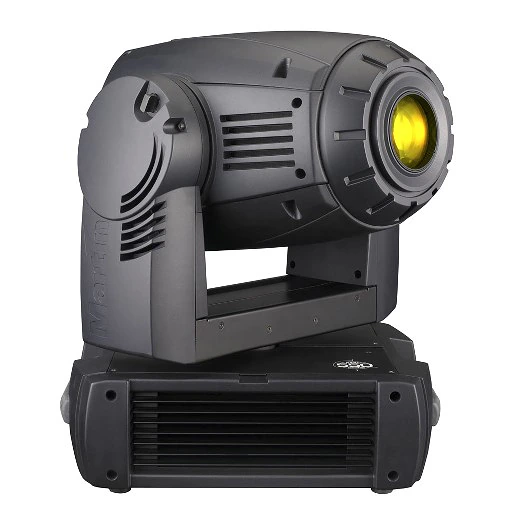

The MAC 550 features unprecedented output for a 400 W profile, astounding graphics and animation, a motorized zoom and new color and gobo motors.

Features

  • 400 W short arc discharge lamp
  • 2 x 8 position color wheels plus open
  • Gobo animation wheel with full movement / direction control
  • 9 static and 6 indexable rotating gobos plus open
  • Interchangeable rotating prism
  • Motorized iris
  • Strobe effect up to 10 Hz, random strobe, pulse effects, instant open and blackout
  • Motorized zoom and focus
  • Mechanical dimming
  • Pan and tilt range of 540°/246°
  • Modular design for easy maintenance and servicing
  • Electronic ballast with hot lamp restrike and flicker free light
  • Variable fan control for quieter operation

Specifications

Physical Length: 450 mm Width: 365 mm Height: 636 mm, head straight up Weight: 31 kg
Dynamic Effects Color wheel: Two wheels, each with 8 filters + open, indexing, continuous rotation Rotating gobo wheel: 6 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shake Static gobos: 9 interchangeable gobos + open, continuous scrolling, random gobo Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction Iris: 10 - 100% diameter, pulse effects Mechanical dimmer: 0 - 100% Shutter: Strobe effect up to 10 Hz, random strobe, pulse effects, instant open and blackout Focus: 2 m to infinity Zoom: 14° - 30° Pan: 540° Tilt: 246°
Control and Programming DMX channels: 21/27 Setting and addressing: Control panel with LED display 16-bit control: Color wheels 1 + 2, rotating gobo wheel, dimmer, iris, focus, zoom, pan & tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 400 W short-arc discharge Fitted as standard: Osram HTI 400 W/D3 Color temperature: 7500 K CRI (Color rendering index): 80 Average lifetime: 750 hours Hot restrike: Yes Socket: Double-ended SFc 10-4 with key Ballast: Electronic
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Gobos Outside diameter: 27.9 mm +0/- 0.3 mm Maximum image diameter: 23 mm Maximum thickness: 1.1 mm in static slots, 4 mm in rotating slots Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating Recommended metal: 0.5 mm aluminum
Gobo Animation Wheel Outside diameter: 116 mm +0/- 0.25 mm Image outer diameter: 112 mm Image inner diameter: 32 mm Construction: 0.5 mm aluminum, magnetic mounting
Installation Mounting points: 2 pairs of 1/4-turn locks Orientation: Any
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-120/208-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 6.3 AT (for 200-240 V power) Main fuse: 10 AT (for 100-120 V power)
Typical Power and Current 100 V, 50 Hz: 650 W, 6.8 A, PF 0.954 100 V, 60 Hz: 640 W, 6.7 A, PF 0.961 120 V, 60 Hz: 626 W, 5.5 A, PF 0.956 208 V, 60 Hz: 592 W, 3.1 A, PF 0.936 230 V, 50 Hz: 594 W, 2.8 A, PF 0.927 250 V, 50 Hz: 594 W, 2.6 A, PF 0.921 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 160° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 2200 BTU/hr.
Approvals EU EMC: EN 50 081-1, EN 50 082-1 EU safety: EN 60598-1, EN 60598-2-17 Canadian safety: CSA C22.2 No. 166 US safety: ANSI/UL 1573
CE ETL C US Intertek
Included Items Osram HTI 400/D3 lamp (installed): 97010211 Radial breakup gobo animation wheel (installed): 62325048 Two T-shaped Omega brackets with 1/4 turn fasteners: 91602008 User manual: 35000136
Accessories GE CSR400/S/DE/75 lamp: 97010245 Spiral breakup gobo animation wheel: 62325049 Linear breakup gobo animation wheel: 62325050 Coarse tangential gobo animation wheel: 62325051 Cloud breakup gobo animation wheel: 62325094 Elliptical breakup gobo animation wheel: 62325095 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Double flightcase, MAC 550 Profile, MAC 700 Wash, MAC 700 Profile: 91510020
Spare Parts Osram HTI 400/D3 lamp: 97010211 6.3 AT main fuse: 05020020 10 AT main fuse: 05020025 Air filter (head, side): 20800170
Ordering Information MAC 550 Profile in cardboard box: 90217000 MAC 550 Profile in single flightcase: 90217010
