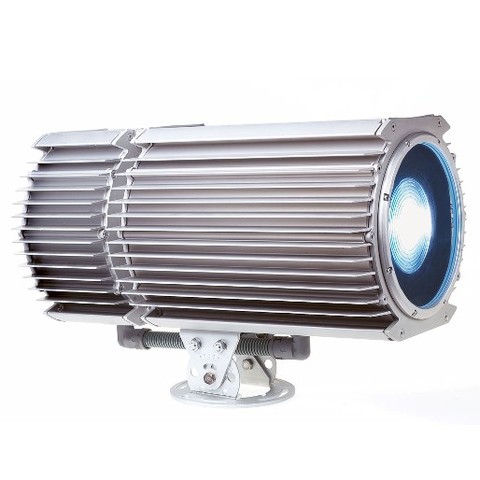

The industry standard 575W luminaire designed for dynamic and creative illumination of facades, tall buildings, bridges and weather-beaten environments
Larger Images
Features
- Compact size and low weight
- Durable weatherproof IP-65 housing
- Highly efficient optics using long life 575 W lamp
- On-board scene storage with in-built real time clock
- Seamless CMY color mixing giving 1 million color possibilities
- Selectable lens options for different spread angle selections
Specifications
Physical Length: 576 mm Width: 375 mm Height: 421 mm Weight: 42.7 kg
Dynamic Effects Color mixing: CMY Cyan: 0 - 100% Magenta: 0 - 100% Yellow: 0 - 100% Dimmer: 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 4/5 DMX address setting: Martin MUM™ application running on Windows PC Stand-alone and host/client programming: Martin MUM™ application running on Windows PC Stand-alone trigger options: Internal timer and/or ambient light level Stand-alone memory: 20 scenes Data input/output: 1.8 m cable tail w/ 3-pin XLR male and 3-pin XLR female Receiver: RS-485
Lamp Type: 575 W metal halide Socket: GX 9.5 Approved lamps: Philips MSR 575/2, MSD 575, Osram HSR 575/72 Control: Automatic and/or remote on/off
Construction Housing: Extruded aluminum Finish: Clear anodized Mounting bracket: 6 mm stainless steel Front glass: 6 mm anti-reflection coated Protection rating: IP65
Installation Mounting points: Four curved 10 mm slots on 85 mm radius Orientation: Any Horizontal aiming: +/- 25° Vertical aiming (pedestal mounted): +/- 40° Minimum distance to combustible materials: 1 m Minimum distance to illuminated surfaces: 1 m
Electrical AC input: 1.8 m cable tail w/o power plug Wiring options: 200/230/245 V, 50 Hz; 208/227 V, 60 Hz Custom wiring options: 230/277 V, 50/60 Hz
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 80° C Cooling: Convection
Included Items User manual: 35000082 Philips MSD 575 lamp: 97010205
Accessories 66° diffuser lens kit: 91610017 103° prismatic lens kit: 91610027 MC-X Controller, 220 - 245 V, 50 Hz: 90718200 MC-X Controller, 110 - 120 V, 60 Hz: 90718300 Snoot/barndoor kit: 91611029 Extensions to Snoot/barndoor kit: 91611030 Permanent 5500 - 4200 K CTC kit: 91611036
Related Items Martin DABS1™ USB interface box incl. cables: 90758090
Ordering Information Exterior 600 Compact, 29/43°, 230 V, 50 Hz: 90505200 Exterior 600 Compact, 29/43°, 245 V, 50 Hz: 90505202 Exterior 600 Compact, 29/43°, 208 V, 60 Hz: 90505204
