MAC 2000 Profile II (discontinued)

MAC 2000 Profile II
Larger Images

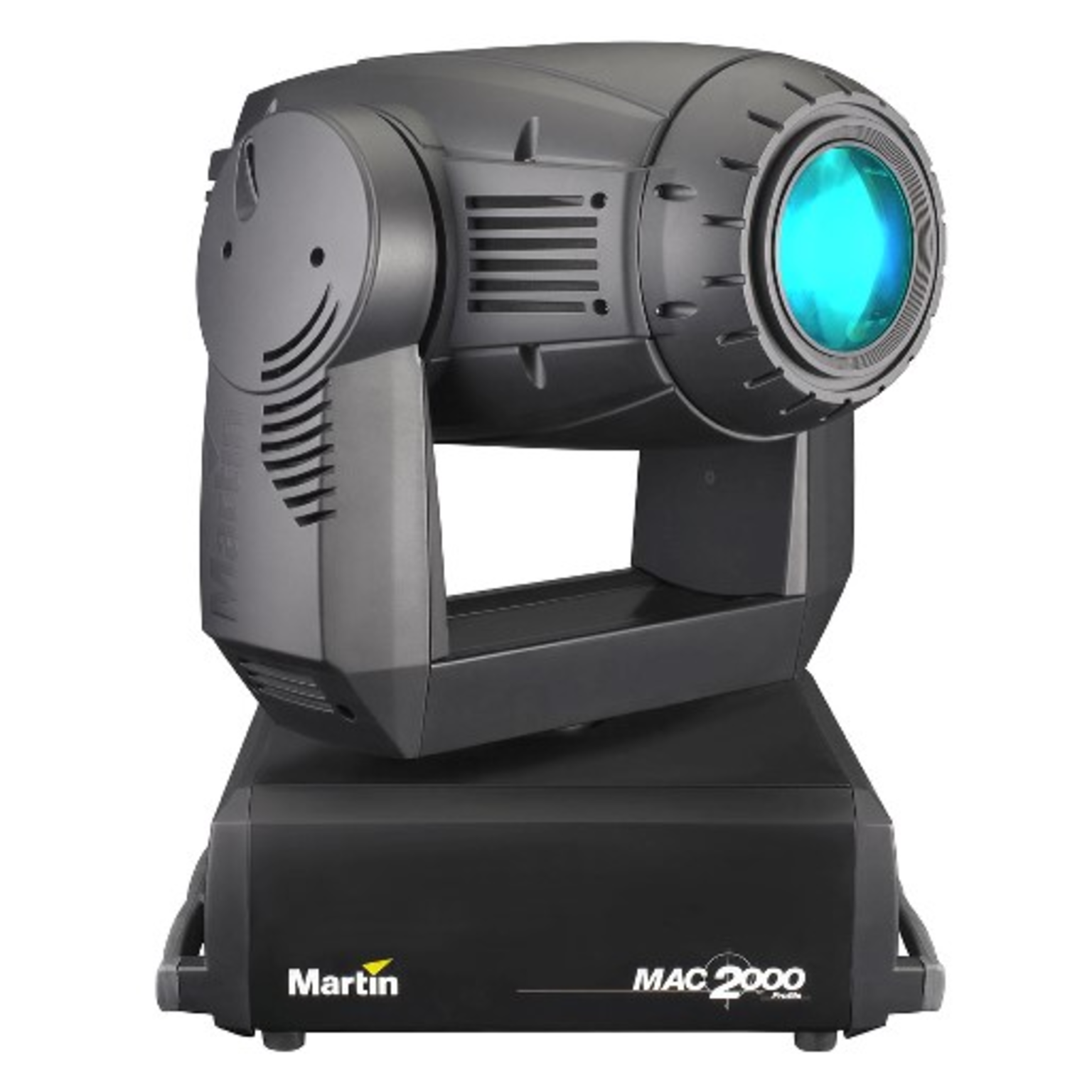

The MAC 2000 Profile is a high performance luminaire with two rotating gobo wheels, full CMY color mixing, effect wheel and a combined color and gobo wheel.

Features

  • 1200 W short arc discharge lamp
  • CMY color mixing system
  • Combined 7 position color/gobo wheel plus open
  • Variable CTC
  • Variable frost, 3-facet prism
  • Motorized iris
  • Strobe effect 2 - 10 Hz, pulse effects, instant open and blackout
  • Motorized zoom and focus
  • Mechanical dimming
  • Optional beam expander
  • Pan and tilt range of 540°/267°
  • Modular design for easy maintenance and servicing
  • Variable fan control for quieter operation
  • 2 x 5 indexable rotating gobos plus open

Specifications

Physical Length: 408 mm Width: 490 mm Height: 743 mm, head straight up Weight: 45 kg Weight: 38 kg, electronic ballast model Electronic ballast models are currently being discontinued:
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: 0 - 178 mireds, continuously variable Color/gobo wheel: 4 interchangeable filters (incl. UV transmitter), 3 interchangeable glass gobos + open, full and split colors, continuous rotation Rotating gobos: 2 wheels, each with 5 interchangeable gobos + open, indexing, continuous gobo rotation, shake Beam effects: Effect wheel with variable frost, rotating beamshaper and rotating 3-facet prism Mechanical dimmer: 0 - 100% Shutter: Strobe effect 2 - 10 Hz, pulse effects, instant open and blackout Iris: 15 - 100% diameter, pulse effects Focus: 2 m to infinity Zoom: Motorized Pan: 540° Tilt: 267°
Control and Programming DMX channels: 20/24 Setting and addressing: Control panel with LED display 16-bit control: Rotating gobos, pan & tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 1200 W short-arc discharge Fitted as standard: Philips MSR 1200 SA/DE Gold Color temperature: 6000 K CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: Double-ended SFc 10-4 with key Ballast: Magnetic Approved alternative lamp(s): Osram HTI 1200 D7/60 SharXS
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Gobos Outside diameter: 37.5 mm +0/- 0.3 mm Maximum image diameter: 30 mm Recommended glass: 1.1 mm, high-temperature Borofloat or better with dichroic or enhanced aluminum coating Maximum glass thickness: 7 mm, up to 3 mm can be spring-mounted, 3 mm - 7 mm must be glued in holder Recommended metal: 0.5 mm aluminum Static color/gobos: Max. 1.1 mm, must be glued if below this thickness
Installation Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible Orientation: Any
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 200-240 V nominal, 50/60 Hz (magnetic ballast) Main fuse: 15 AT (x 2, for use with 208-240 V power) Main fuse: 20 AT (x 2, for use with 100-120 V power)
Typical Power and Current Electronic Ballast: Electronic ballast models are currently being discontinued: 100 V, 50 Hz: 1590 W, 19.8 A 100 V, 60 Hz: 1560 W, 19.3 A 120 V, 50 Hz: 1560 W, 16.8 A 120 V, 60 Hz: 1540 W, 16.3 A 208 V, 50 Hz: 1470 W, 10.5 A 208 V, 60 Hz: 1470 W, 10.3 A 230 V, 50 Hz: 1480 W, 9.6 A 230 V, 60 Hz: 1470 W, 9.4 A 250 V, 50 Hz: 1480 W, 8.6 A 250 V, 60 Hz: 1480 W, 8.5 A Magnetic Ballast: 208 V, 50 Hz: 1520 W, 9.3 A 208 V, 60 Hz: 1410 W, 7.5 A 230 V, 50 Hz: 1470 W, 7.6 A 230 V, 60 Hz: 1450 W, 7 A 250 V, 50 Hz: 1480 W, 7.4 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 140° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 5290 / 5050 BTU/hr.
Approvals EU EMC: EN 50 081-1, EN 50 082-1 EU safety: EN 60598-1, EN 60598-2-17 Canadian safety: CSA C22.2 No. 166 US safety: ANSI/UL 1573
Included Items Philips MSR 1200 SA/DE Gold lamp (installed): 97010310 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual: 35000090
Accessories Wide-angle lens kit (14° - 35°, mounts on effect wheel): 91610020 T-shaped omega bracket with quarter-turn fasteners: 91602008 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Double flightcase (SIP) for MAC 2000 Series: 91510170
Spare Parts Philips MSR 1200 SA/DE Gold lamp: 97010310 15 AT main fuse: 05020039 20 AT main fuse: 05020040
Ordering Information MAC 2000 Profile II in cardboard box: 90205615 MAC 2000 Profile II in 2-unit flightcase: 90205600

Downloads

  Version Language Size Uploaded
Specifications
file type icon Descriptive specification
en version J, updated: Oct 2020
J  en  61.1 KB Oct 2020
file type icon SP_MAC2000Profile_EN_J
en version J, updated: Oct 2020
J  en  419 KB Oct 2020
file type icon SP_MAC2000Profile_EN_K
en version K, updated: Oct 2020
K  en  10.8 KB Oct 2020
file type icon SP_MAC2000Profile_EN_L
en version L, updated: Oct 2020
L  en  11.2 KB Oct 2020
file type icon Especificaciones, MAC 2000 Profile II
es version L, updated: May 2018
L  es  18.5 KB May 2018
file type icon Technische Daten
de version L, updated: Oct 2020
L  de  13.5 KB Oct 2020
file type icon SP_MAC2000ProfileII_EN_M
en version M, updated: Oct 2020
M  en  11.9 KB Oct 2020
file type icon Specifiche
it version L, updated: May 2018
L  it  417 KB May 2018
Manuals
file type icon Manuale d´uso, MAC 2000 Profile II
it version L, updated: Oct 2020
L  it  4.22 MB Oct 2020
file type icon User manual, MAC 2000 Profile
en version I, updated: Oct 2020
I  en  3.37 MB Oct 2020
file type icon Manual de instrucciones, MAC 2000 Profile II
es version L, updated: May 2018
L  es  3.29 MB May 2018
file type icon Manuel d´utilisation, MAC 2000 Profile
fr version B, updated: Oct 2020
B  fr  995 KB Oct 2020
file type icon Bedienungsanleitung, MAC 2000 Profile II
de version L, updated: Oct 2020
L  de  2.88 MB Oct 2020
file type icon User manual, MAC 2000 Profile II
en version M, updated: Oct 2020
M  en  3 MB Oct 2020
Illustrations
Gobo Configuration
en version A, updated: May 2018
A   en    May 2018
file type icon MAC2000 Profile/Performance Dimensions (DXF)
en version A, updated: Oct 2020
A  en  531 KB Oct 2020
file type icon MAC2000 Profile/Performance Dimensions
en version A, updated: Oct 2020
A  en  208 KB Oct 2020
file type icon Flightcase, dimenstions (DXF)
en version A, updated: Oct 2020
A  en  139 KB Oct 2020
file type icon Flightcase, dimensions
en version A, updated: Oct 2020
A  en  50.6 KB Oct 2020
Compliances
file type icon ETL Authorization to Mark
es version F, updated: May 2018
F  es  27.1 KB May 2018
file type icon EU Declaration of Conformity
es version B, updated: Oct 2020
B  es  68.9 KB Oct 2020
Software
platform icon MAC 2000 Profile II Main CPU
version 1.7.0 (DS), updated: May 2018
1.7.0 (DS)     111 KB May 2018
Parts
Universal Flight Case
en version A, updated: May 2018
A   en    May 2018
Optional Wide Angle Lens
en version A, updated: May 2018
A   en    May 2018
Wash Colors for the Profile
en version A, updated: May 2018
A   en    May 2018
Service Notes
Measure Length of OSRAM 1200 Watt Lamps
en version A, updated: May 2018
A   en    May 2018
Longer Lifetime on MAC 2000 Pan/Tilt Motors
en version A, updated: May 2018
A   en    May 2018
Lampholder Replacement
en version A, updated: May 2018
A   en    May 2018
Important safety check at next MAC 2000 service
en version A, updated: May 2018
A   en    May 2018
Lamp Explosion Detection Improved
en version A, updated: May 2018
A   en    May 2018
Time lag fuses in all MAC 2000 Series fixtures
en version A, updated: May 2018
A   en    May 2018
Pan/Tilt Protection Circuit Implemented
en version A, updated: May 2018
A   en    May 2018
file type icon Woodroffe Gobo Collection
en version A, updated: Oct 2020
A  en  1.95 MB Oct 2020
file type icon MAC 2000 Head Fan Connections
en version B, updated: Oct 2020
B  en  100 KB Oct 2020
Check Head Fan Connections
en version A, updated: May 2018
A   en    May 2018
CPFC Capacitor Replacement Recommendation
en version B, updated: May 2018
B   en    May 2018
DMX cables now optional accessories
en version A, updated: May 2018
A   en    May 2018
file type icon Philips MSI 1200 W/S Lamp Approved
en version A, updated: Oct 2020
A  en  43.4 KB Oct 2020
Hints And Tips
MAC 2000 Series Standard Lamp Changes to Philips MSR 1200
en version A, updated: May 2018
A   en    May 2018
New Dome from Tempest Lighting
en version A, updated: May 2018
A   en    May 2018
How to Identify Improved MAC 2K PCBs
en version A, updated: May 2018
A   en    May 2018
New in the MAC 2000 Profile II
en version A, updated: May 2018
A   en    May 2018
Rosco Equivalent Colors
en version A, updated: May 2018
A   en    May 2018
Tempest Dome Approved Up To 40° C
en version A, updated: May 2018
A   en    May 2018
Oversight in User Manual
en version A, updated: May 2018
A   en    May 2018
Clean the Fans!
en version A, updated: May 2018
A   en    May 2018
Discharge Lighting Shutdown Guidelines
en version A, updated: May 2018
A   en    May 2018
Electrical safety test equipment
en version B, updated: May 2018
B   en    May 2018
About Lamp Errors
en version A, updated: May 2018
A   en    May 2018
file type icon HMI 1200 W/S Lamp Renamed
en version A, updated: Oct 2020
A  en  43.4 KB Oct 2020
